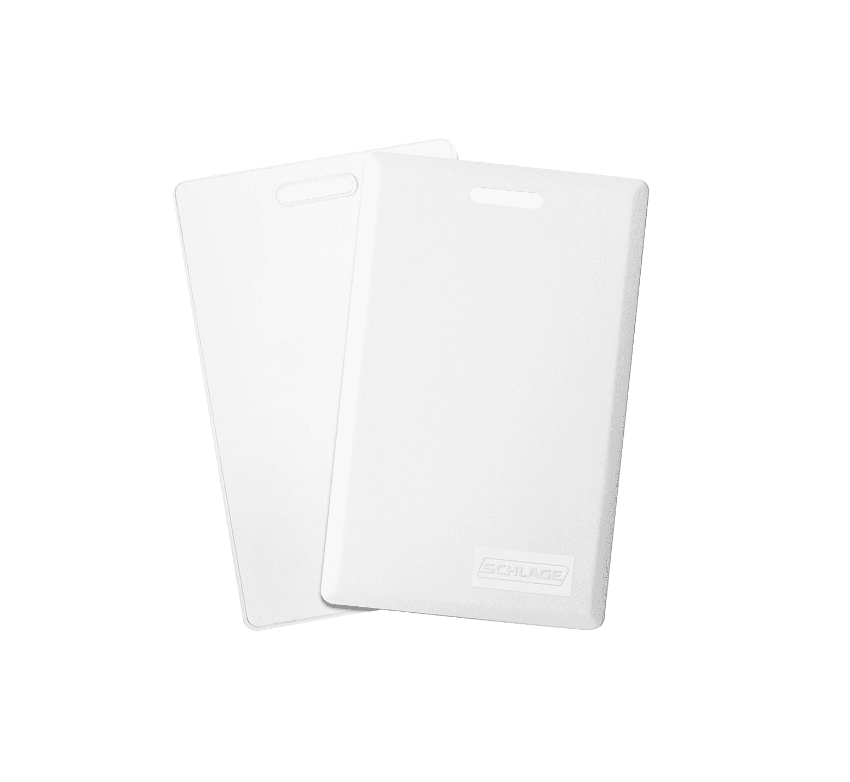

Schlage 9558M1 MIFARE Smartcard with Mag Stripe 4K Byte/32K Bit

Schlage 9558M1 MIFARE Smartcard Mag Stripe 4K/32K
Picture of 9558M1 MIFARE Smartcard with Mag Stripe 4K Byte/32K Bit
Dynamic Image
Schlage 9558M1 MIFARE Smartcard Mag Stripe 4K/32K
Picture of 9558M1 MIFARE Smartcard with Mag Stripe 4K Byte/32K Bit

Schlage

SKU: Schlage-9558M1

Schlage 9558M1 MIFARE Smartcard with Mag Stripe 4K Byte/32K Bit

Available (3 - 4 Weeks)

The Schlage 9558M1 is a MIFARE smartcard with a magnetic stripe and 4K Byte/32K Bit memory for commercial electronic access control credential applications. Facility Code and Starting Card # Must Be Specified.

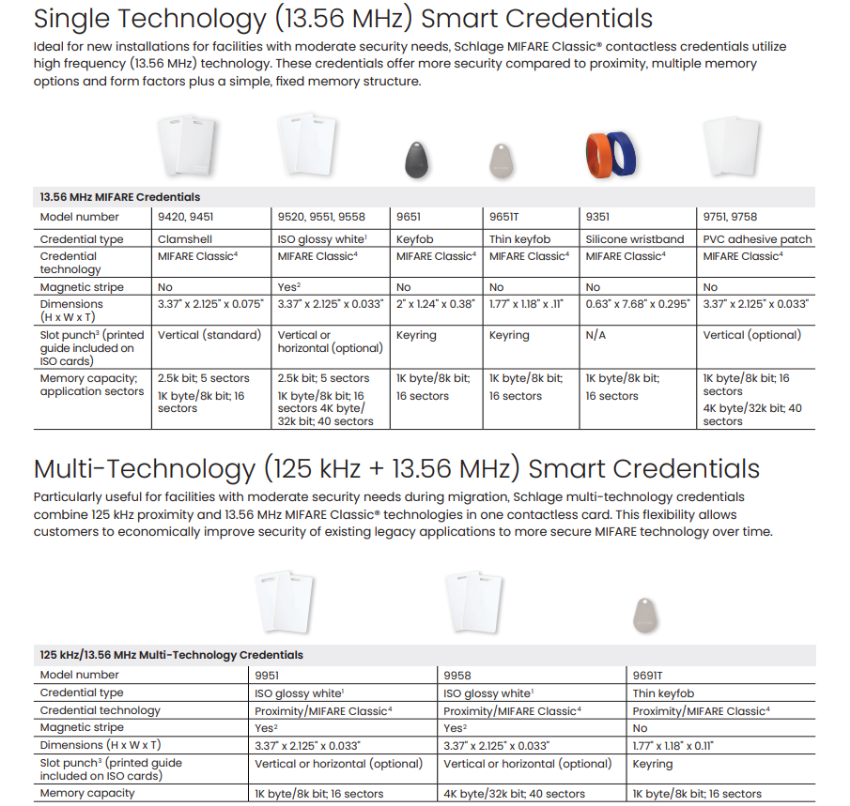

Schlage 9558M1 is a MIFARE Classic smartcard with a magnetic stripe, providing 4K Byte/32K Bit memory and 40 application sectors. It uses 13.56 MHz contactless MIFARE Classic technology and complies with the ISO 14443 standard. The ISO card is made from composite material and is printable.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 9558M1
Product Type: MIFARE Contactless Smartcard
Credential Technology: MIFARE Classic
Slot Punch: Vertical or Horizontal (Optional)
Frequency: 13.56 MHz
Memory: 4K byte/32K-bit
Application Sector: 40
Standard: ISO 14443
Magnetic Stripe: Yes
Credential Type: ISO glossy white
Dimensions: 3.37" H × 2.125" W × 0.033" T
Material: Composite
Primary Function: Contactless high-frequency smart credential
Application: Commercial electronic access control and credential authentication
OEM Part: Yes
Warranty: Limited lifetime

$14.60
$10.22
This product has a minimum quantity of 100
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 9558M1?
The Schlage 9558M1 is a MIFARE Classic smartcard with a magnetic stripe and 4K Byte/32K Bit memory.
What technology does the Schlage 9558M1 use?
The Schlage 9558M1 uses 13.56 MHz MIFARE Classic contactless technology and complies with ISO 14443.
What is the Schlage 9520M1 used for?
The Schlage 9520M1 is used as a contactless smartcard credential for electronic access control applications.
Is the Schlage 9520M1 an OEM Schlage credential?
Yes. The Schlage 9520M1 is a Schlage MIFARE contactless smartcard credential with a magnetic stripe.
What are the benefits of the Schlage 9558M1?
The Schlage 9558M1 combines 13.56 MHz MIFARE Classic contactless technology, 4K Byte/32K Bit memory, 40 application sectors, and a magnetic stripe in an ISO card format.
