Product Overview:

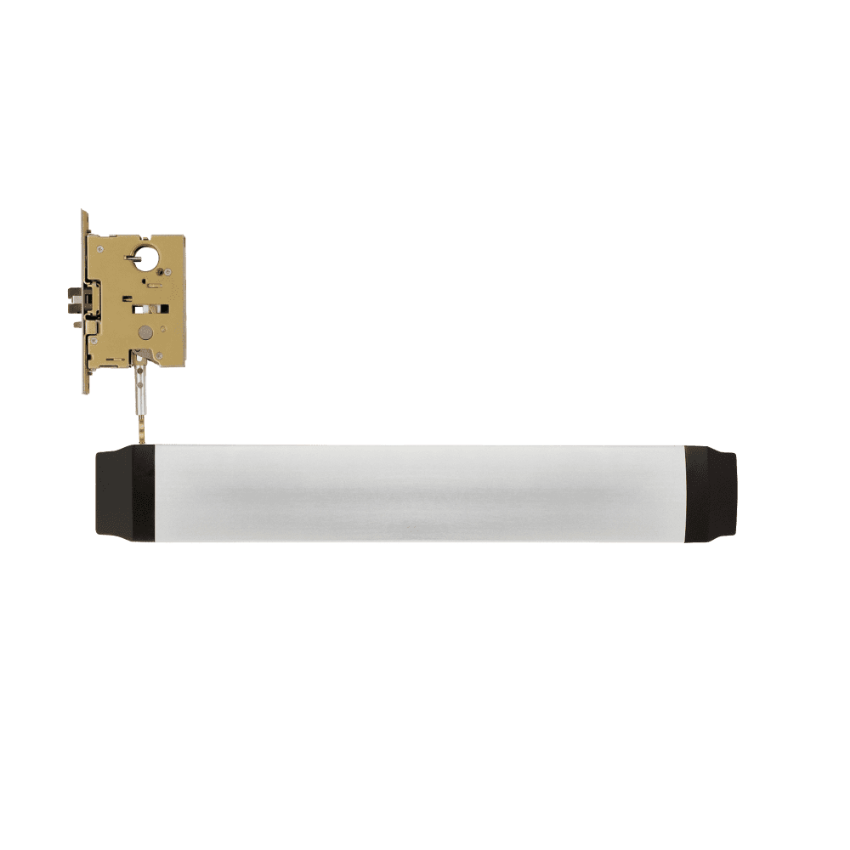

• 94/95 INPACT mortise lock device for use on factory prepped steel doors, not available for wood doors.
• The INPACT device is UL listed for panic, ANSI/BHMA 156.3 Grade 1.

Click Here for 9475/9575EO-F Mortise Lock Fire Rated Exit Device

Specifications:

Device Functions:

• • Device ships EO, DT, TL, L, NL
  • Blank escutcheon (BE) available

Device Length

• • 2'6" up to 2'9" for 24 5/32" device
  • 2'10" up to 4' for 30 5/32" device

Mortise lock centerline from finished floor

• • 48 1/8" (1222 mm)

Projection

• • 1 5/8" (41 mm) neutral
  • 1 1/4" (32 mm) depressed

Latch bolt

• • 3/4" (19 mm) anti-friction

Fasteners

• • Included for surface mounting to recessed door prep and through bolting to trim

Finishes

• • 605 (US3), 606 (US4), 612 (US10), 625 (US26), 626 (US26D), 628 (US28), 710 (313), 711 (315)

Features and Options

Electrified Options

• • QEL - Quiet electric latch retraction
  • LX - Latch bolt monitor switch
  • SS7500-IN - Signal switch mortise lock

Dogging Features

• • Hex key dogging standard

Strike

• • 575 - Dull Black
