Product Overview:

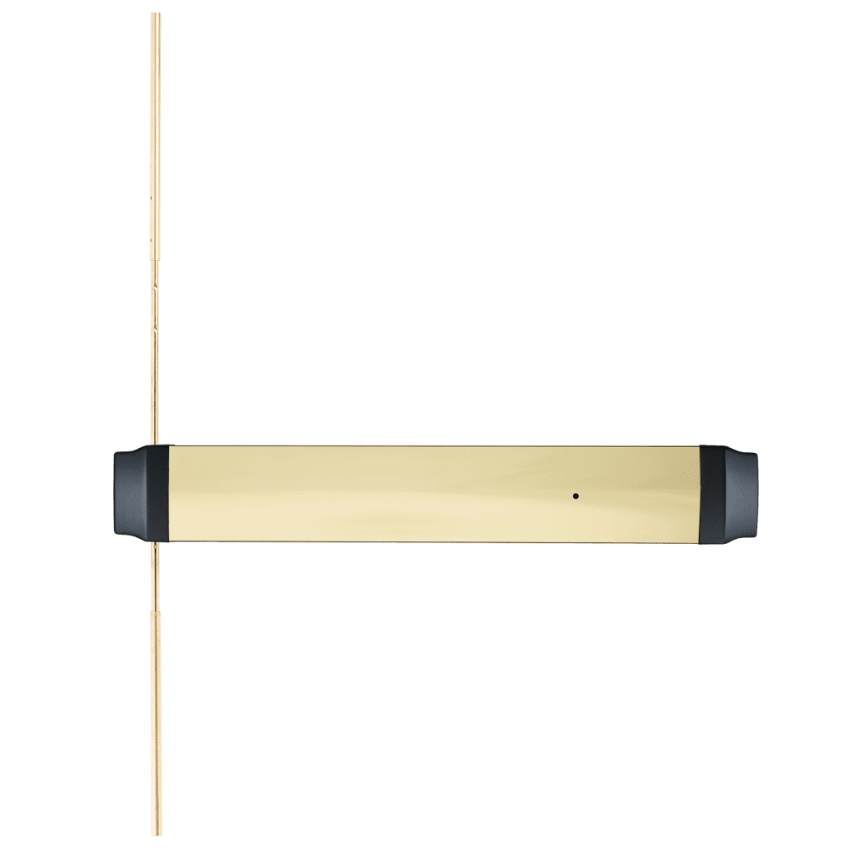

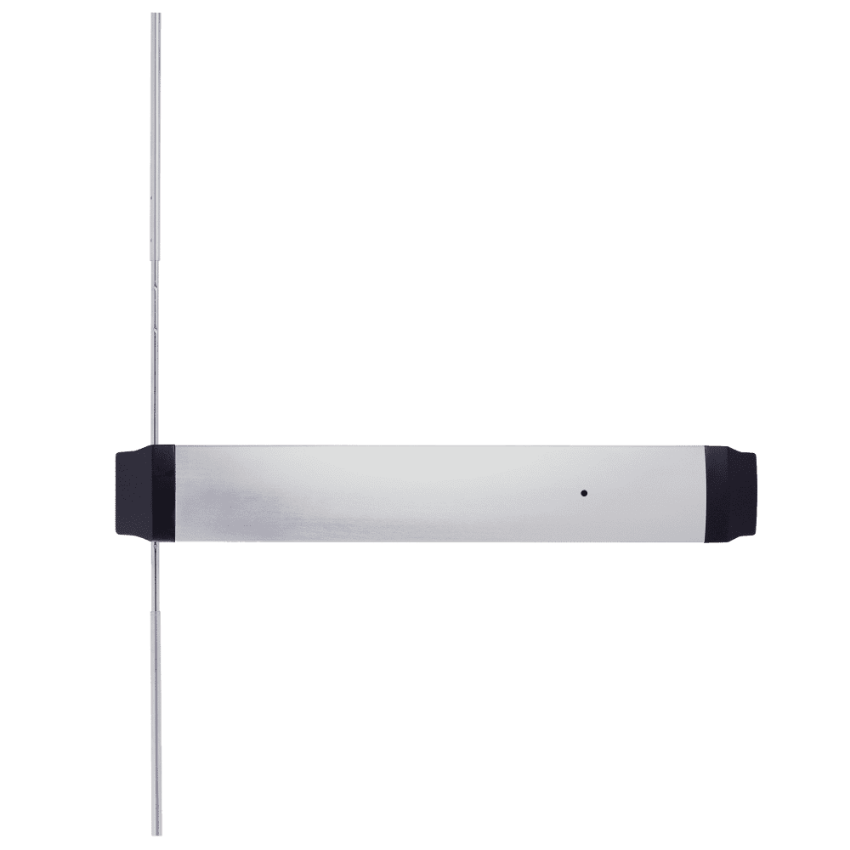

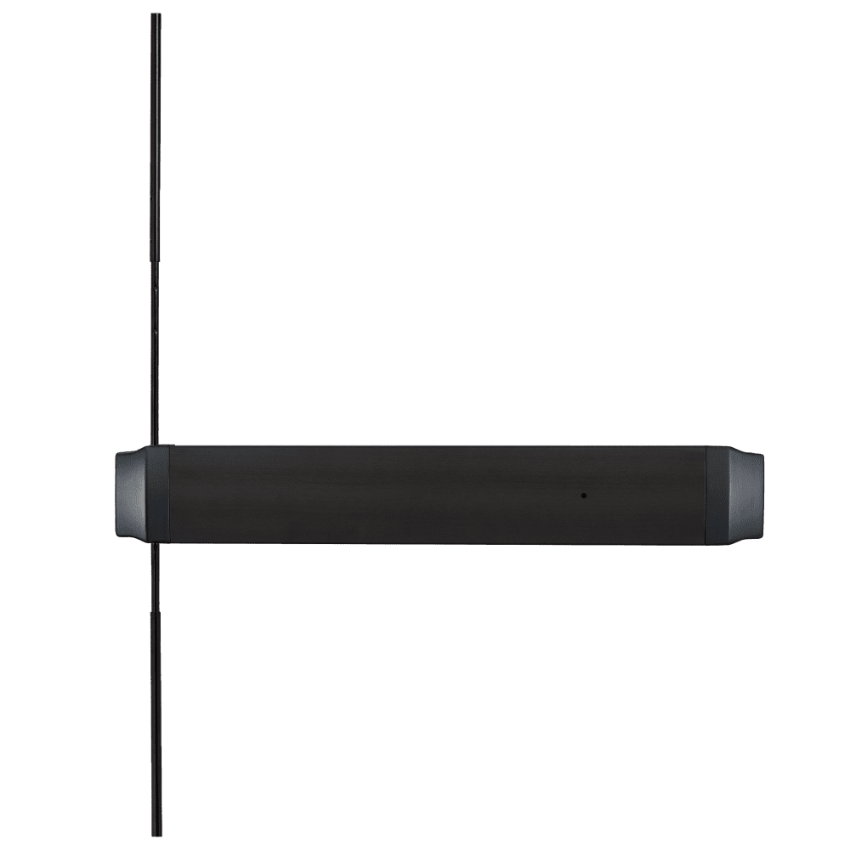

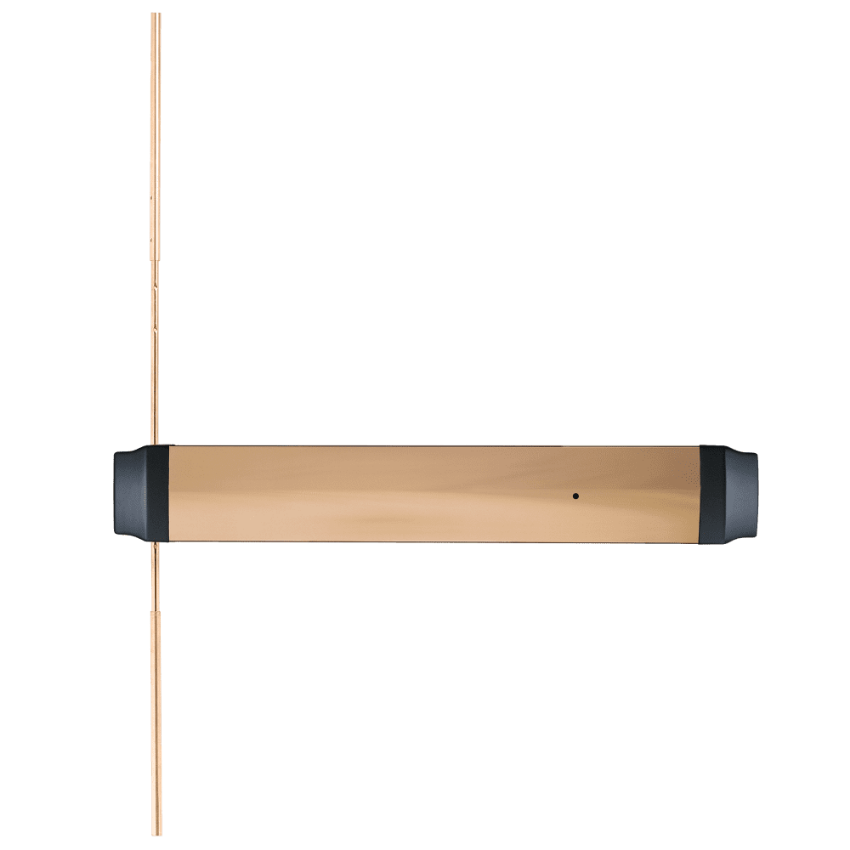

• 94/95 INPACT concealed vertical rod device for use on factory prepped steel doors, not available for wood doors. The INPACT device is UL listed for panic, ANSI/BHMA 156.3 Grade 1.

Click Here for 9447/9547EO-F INPACT CVR Fire Rated Exit Device

Specifications:

Device Functions:

• • Device ships EO, DT, TL, L
  • Blank escutcheon (BE) available

Device Length

• • 2'6" up to 2'9" for 24 5/32" device
  • 2'10" up to 4' for 30 5/32" device

Device Centerline from finished floor

• • 39 5/8" (1006 mm)

Projection

• • 1 5/8" (41 mm) neutral
  • 1 1/4" (32 mm) depressed

Latch bolt

• • 5 /8" (16 mm) throw
  • Deadlocking latch bolt standard

Door undercut

• • 1/4" (7 mm) maximum

Top & bottom latch case assembly

• • 4 1/2" X 2 1/8" x 1 1/2" (114 mm x 54 mm x 38 mm)

Vertical rods

• • Two-piece adjustable rods, door 6'8" (2032 mm) to 8'0" (2540 mm) can be adjusted by removing the latchside endcap

Fasteners

• • Included for surface mounting to recessed door prep and through bolting to trim

Finishes

• • 605 (US3), 606 (US4), 612 (US10), 625 (US26), 626 (US26D), 628 (US28), 710 (313), 711 (315)

Features and Options

Electrified Options

• • QEL - Quiet electric latch retraction
  • LX - Latch bolt monitor switch

Mechanical Options

• • LBR - Less bottom rod

Dogging Features

• • Hex key dogging standard

Strike

• • 338 - Top (Unfinished)
  • 385A - Bottom (Unfinished)
