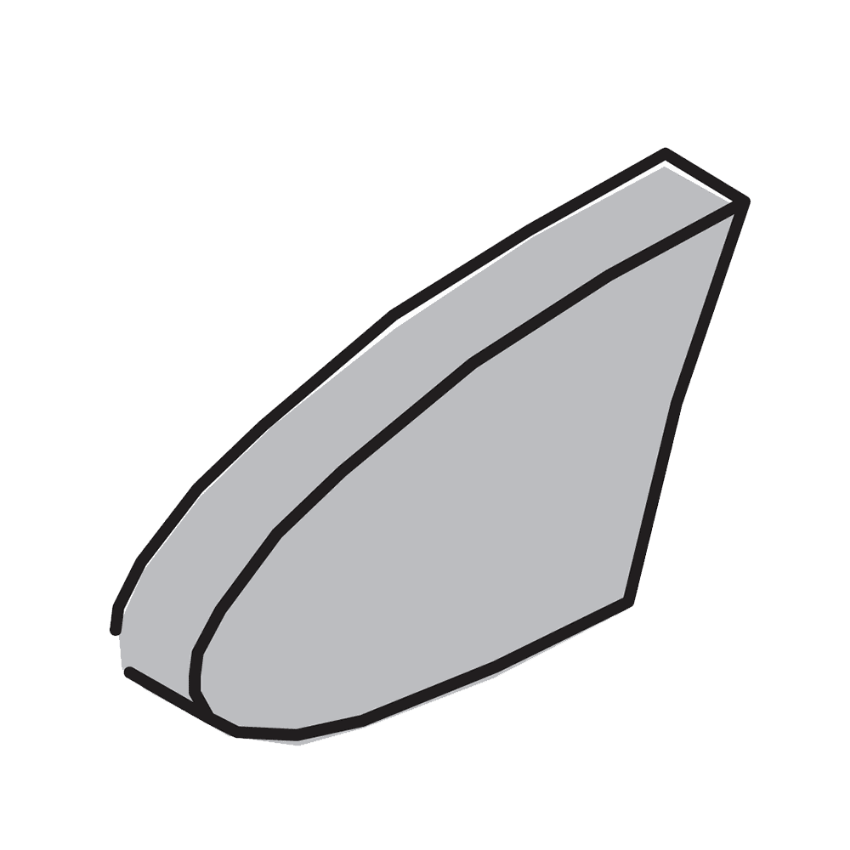

The LCN 9140-334 is the OEM cover endcap kit for the LCN 9140 Series Benchmark low-energy automatic door operator, documented in the LCN Closers and Automatic Operators Parts Manual. The kit includes two pieces - one endcap for each end of the 9140's extruded aluminum operator cover. The endcaps terminate the cover housing, close the open ends of the aluminum extrusion, and protect internal components from dust and debris entering through the cover ends. When an endcap is cracked, broken, or missing, the cover end is open and the interior of the operator body is exposed.

No finish specification is required for the 9140-334 - the endcaps ship in black plastic, which is the standard finish for the 9140 Benchmark cover endcap position.

What the LCN 9140 Benchmark Operator Is

The 9140 is part of LCN's Benchmark Series of electromechanical low-energy automatic door operators - the 9130/9140/9150 family. All three are designed primarily for automatic opening applications that occasionally require manual operation, as opposed to high-energy operators that handle all opening force electrically.

The 9140 specifically mounts on the push side of the door with a double-lever arm. This distinguishes it from the 9130 (pull side, single lever track arm) and the 9150 (top jamb, push side, for independent or simultaneous door pairs). Push-side mounting on the 9140 means the operator mounts on the door face that pushes away from the occupant when opening.

The 9140 meets ANSI/BHMA A156.19 (low-energy door operators), ANSI A117.1 (accessible and usable buildings), is ADA compliant, and is UL listed. The 2-year limited warranty covers the operator unit.

LCN Door Operator Parts: Push 'N Go and Power Boost Features

Two operational features of the 9140 Benchmark are worth knowing for service and replacement context because they affect how the operator cover and endcaps are loaded during use.

Push 'N Go is the feature that automatically takes over when a pedestrian manually pushes the door to approximately five degrees of opening. The operator detects that initial push, activates, and takes the door through its full powered opening cycle - holding it open for 1 to 30 seconds depending on the configured time delay setting. After the hold-open period, the operator powers the door closed. The pedestrian does not need to push a wall button or activation pad. This feature makes the 9140 appropriate for ADA-accessible entrances where touchless or minimal-contact operation is required.

Power Boost applies additional motorized closing force when wind or pressure differentials try to hold the door open beyond its set close position. In exterior installations or doors adjacent to HVAC returns, stack pressure can prevent a standard closer from fully closing the door. Power Boost counteracts that pressure.

Both features cycle through the operator mechanism and arm continuously, which is why cover integrity - including the 9140-334 endcaps - matters for keeping debris out of the operator internals over the long service life of the unit.

LCN 9140-334 in the Benchmark Parts Catalog

The LCN Benchmark 9140 ships from the factory with the motor gearbox, control box, mounting plate, regular arm, extruded aluminum cover, standard track, and a wood and machine screw pack as the standard package. The 9140-334 cover endcaps are listed separately in the LCN Parts Manual as a replacement component - not included in the boxed operator, but available as an OEM service part for installations where the endcaps are damaged during installation, impacted by door traffic, or degraded over time.

The standard 9140 operator cover is 27 inches in length and non-handed. The two endcaps in the 9140-334 kit are sized for this standard 27-inch cover. Confirm the installed operator is the standard 27-inch unit, not an extended or custom-length cover, before ordering.
