Product Overview:

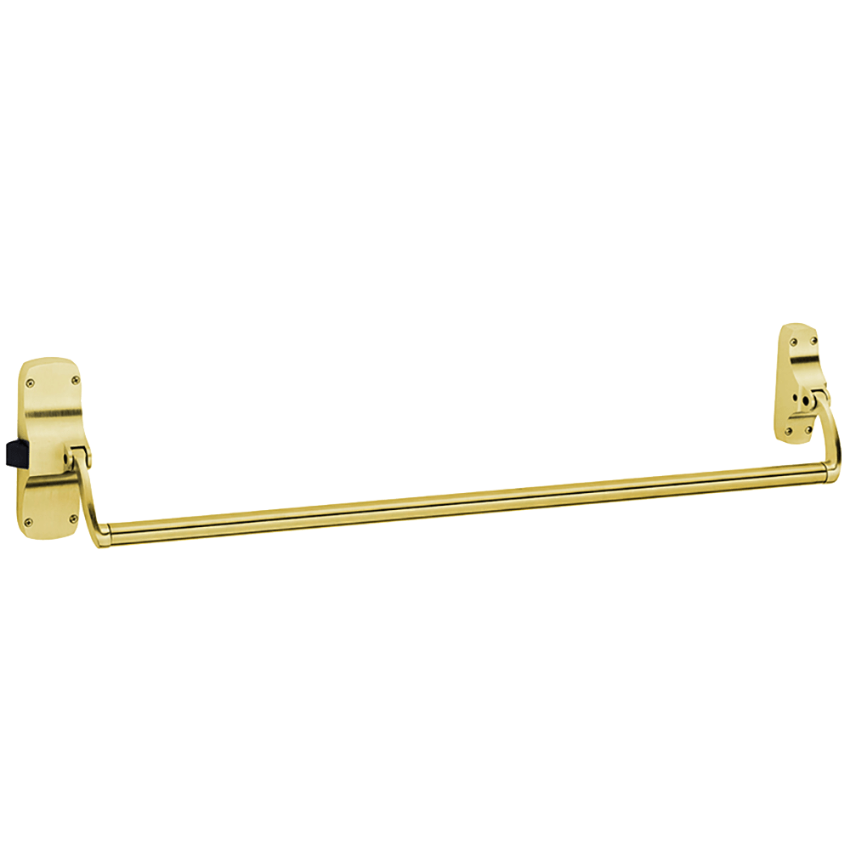

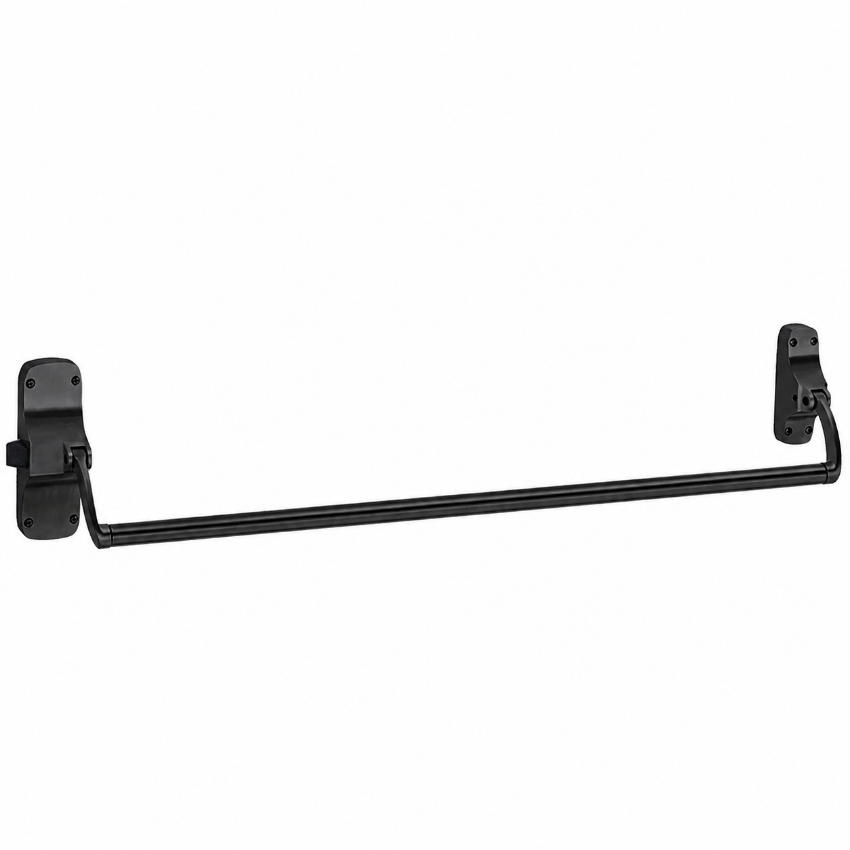

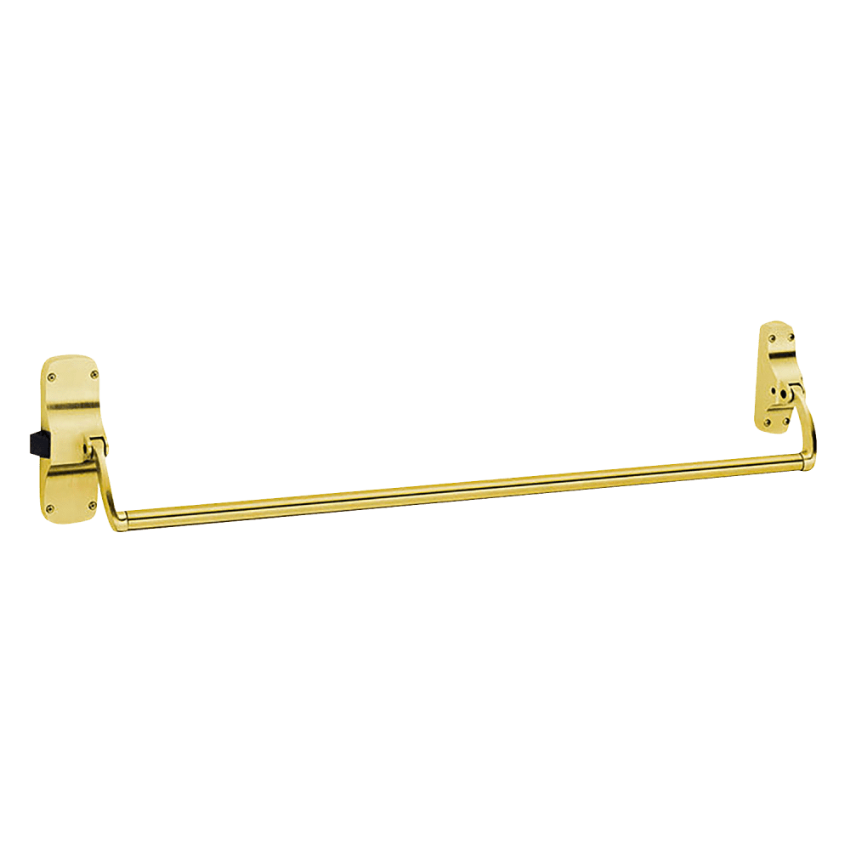

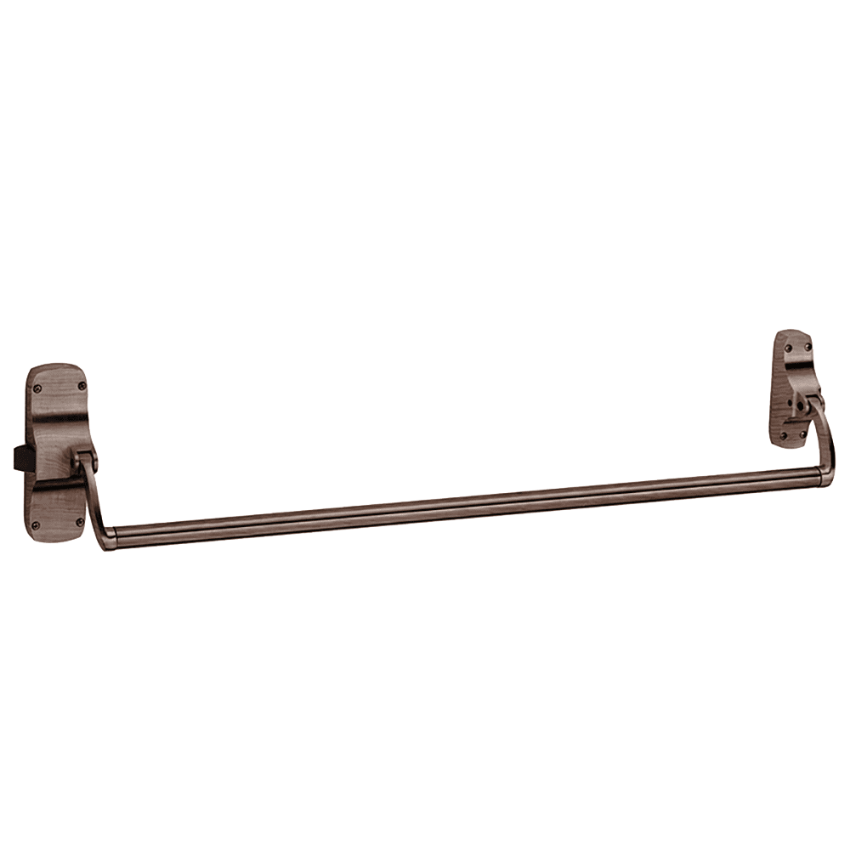

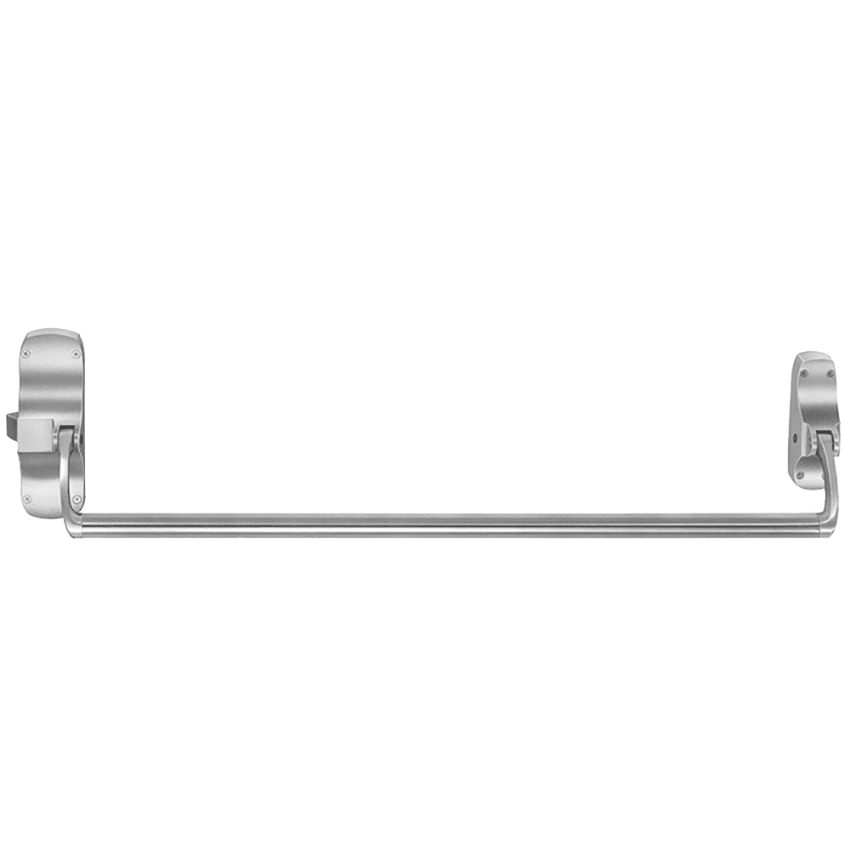

• 88-F fire exit rim devices for all types of 4' X 8' (1219 mm X 2438 mm) single and 8' X 8' (2438 mm x 2438 mm) double doors with 9954 mullion, UL listed, 3 hours.

Specifications:

Device Functions:

• • Device ships EO, NL, TP, L, K

Handing

• • Handed

Crossbar Lengths:

• • 36" for 3' door
  • 48" for 4' door

Device Centerline

• • 39-13/16"

Crossbar Height to finished floor

• • 36 13/16" (935 mm) at center

Lock Stile Case

• • 8-1/4" x 2-3/4" x 15/16" (210 mm x 70 mm x 24 mm)

Hinge Stile Case

• • 6" x 1-3/4" x 15/16" (152 mm x 44 mm x 24 mm)

Crossbar Tubing

• • 1" (25 mm) outside diameter

Projection

• • Neutral – 4-3/4" (121 mm)
  • Depressed – 4" (102 mm)

Latch bolt

• • Deadlocking – 3/4" (19 mm), throw

Finishes

• • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D), 643E, 693 (SPBLK), 619 (US15)

Fasteners

• • All necessary mounting fasteners are included

Features and Options

Electrified Options

• • RX - Crossbar monitor switch
  • E - Electric unlocking (BE trim only)

Mechanical Options

• • RCB - Reinforced crossbar
  • KN - Knurled crossbar (must be ordered as 4' device; cut bar as needed)

Strike

• • 268 - Dull Black
