Product Overview:

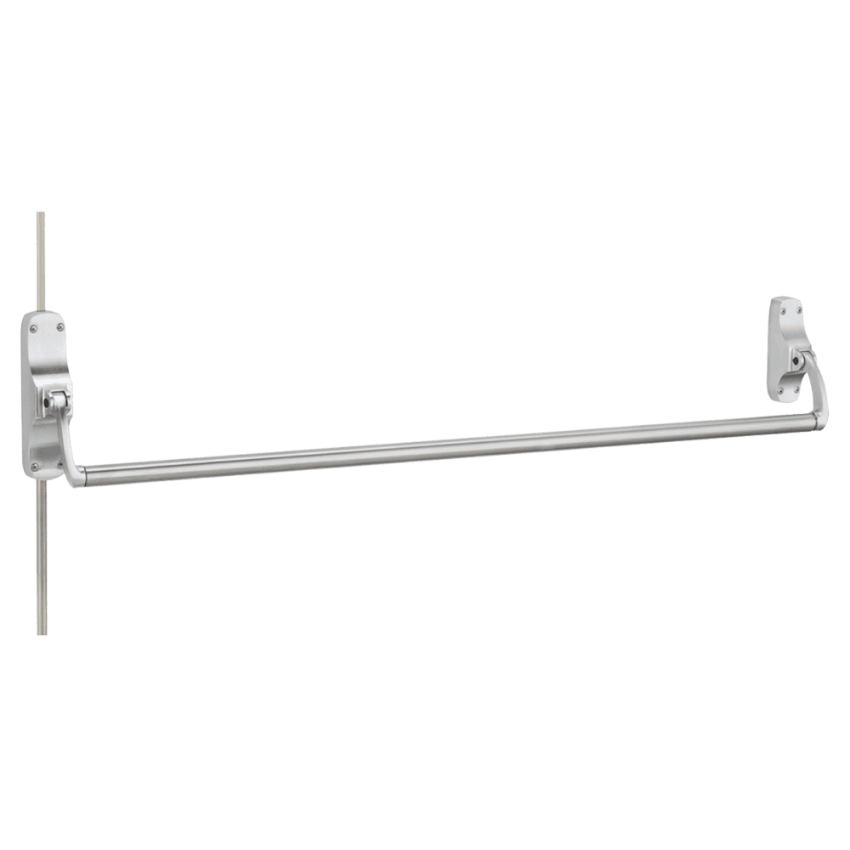

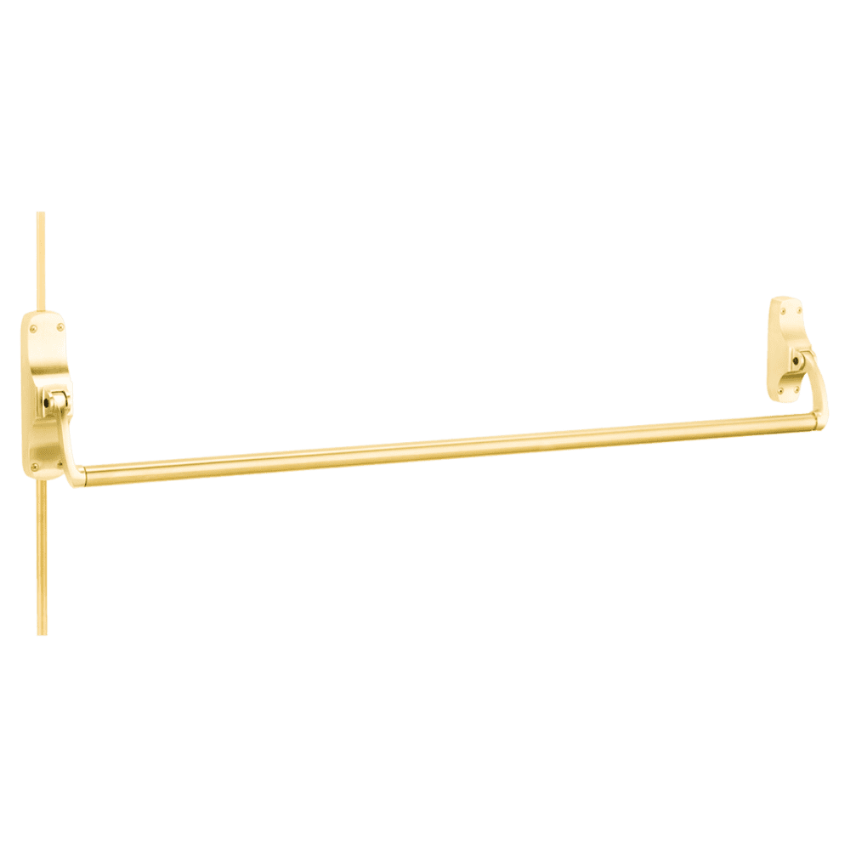

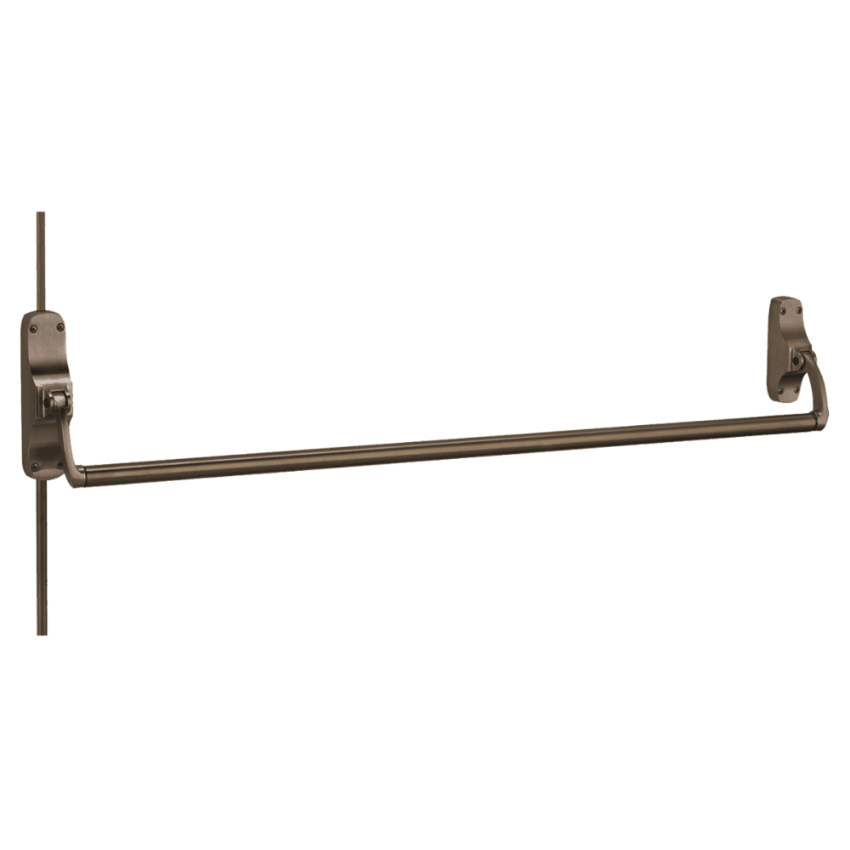

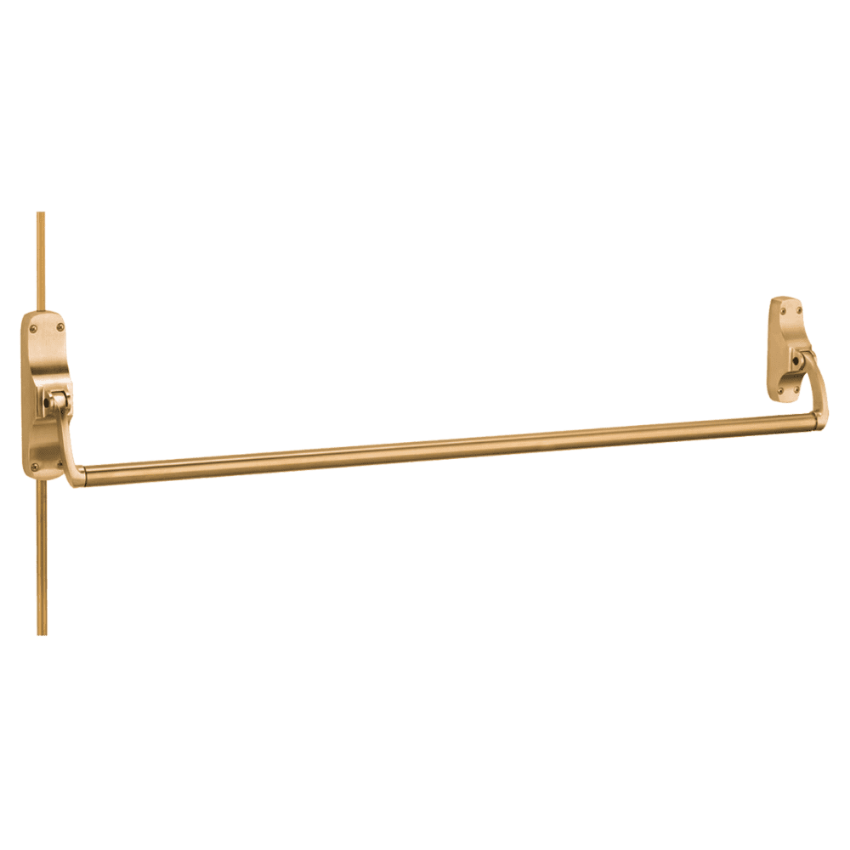

• 8847-F fire exit concealed vertical rod devices for all types of 8'x8' (2438 mm x 2438 mm) double metal doors, UL listed, 3 hours.
• Fits door stiles as narrow as 4-3/4" (121mm).

Specifications:

Device Functions:

• • Device ships  EO, L, TL

Handing

• • Field reversible

Crossbar Lengths:

• • 36" for 3' door
  • 48" for 4' door

Device Centerline

• • 39-13/16"

Crossbar centerline to finished floor

• • 36-13/16" (935 mm) at center

Lock Stile Case

• • 8-1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)

Hinge Stile Case

• • 6" x 1-3/4" x 15/16" (152 mm x 44 mm x 24 mm)

Crossbar Tubing

• • 1" (25 mm) outside diameter

Crossbar Projection

• • Neutral – 4-3/4" (121 mm)
    Depressed – 4" (102 mm)

Vertical Rod

• • 3/8" (10 mm) hexagon

Latch bolt

• • 5/8" (16 mm) throw

Finishes

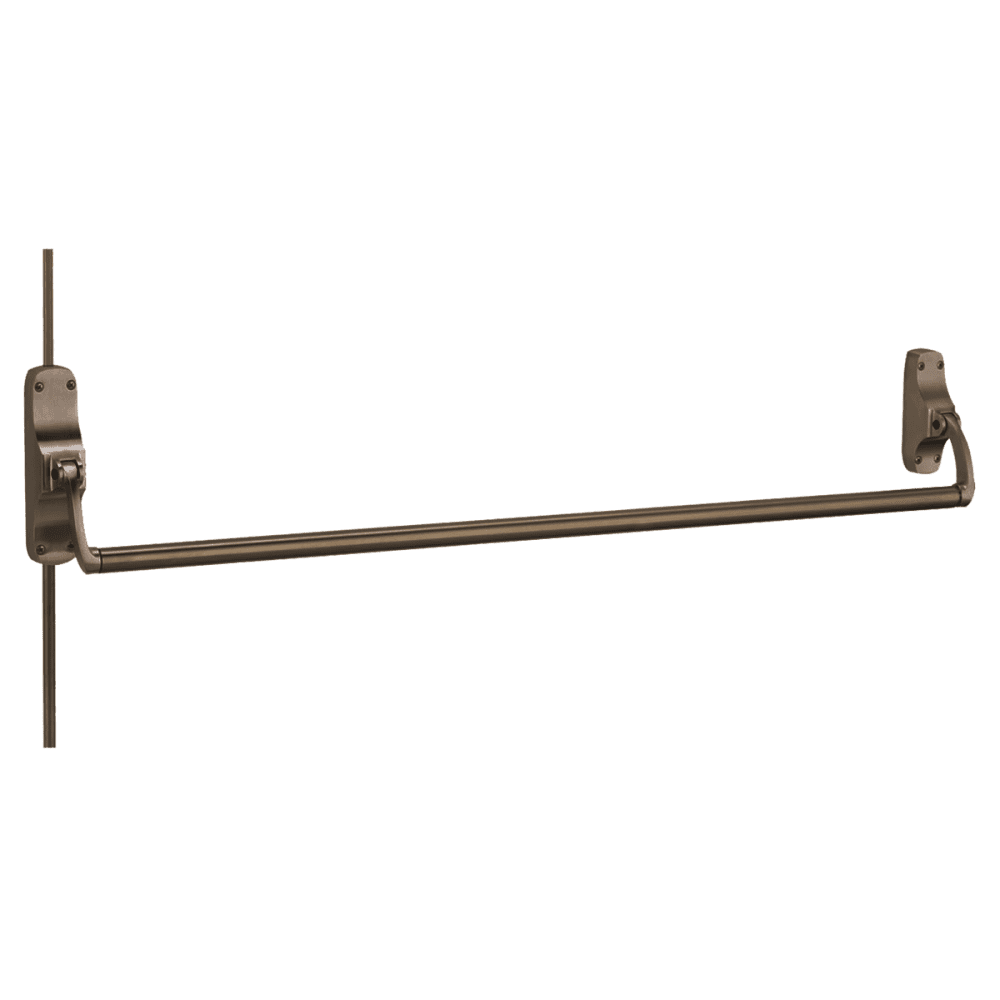

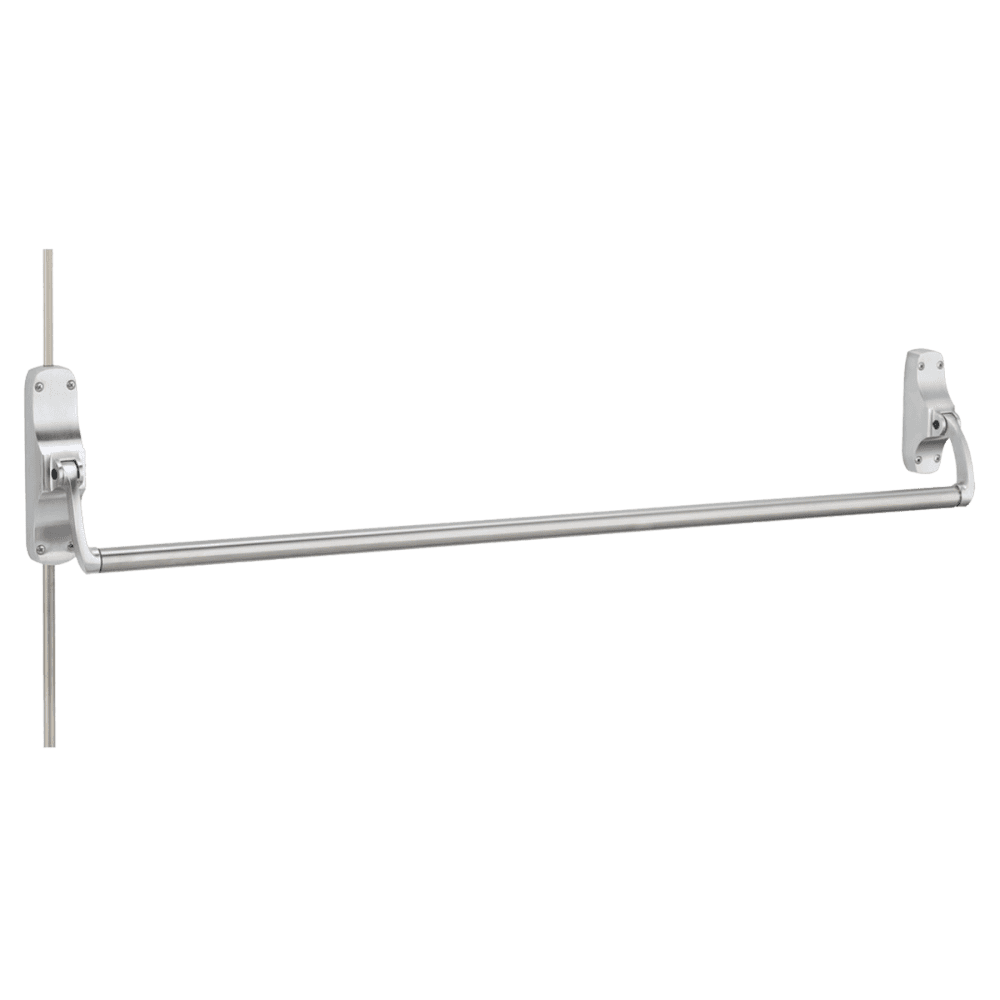

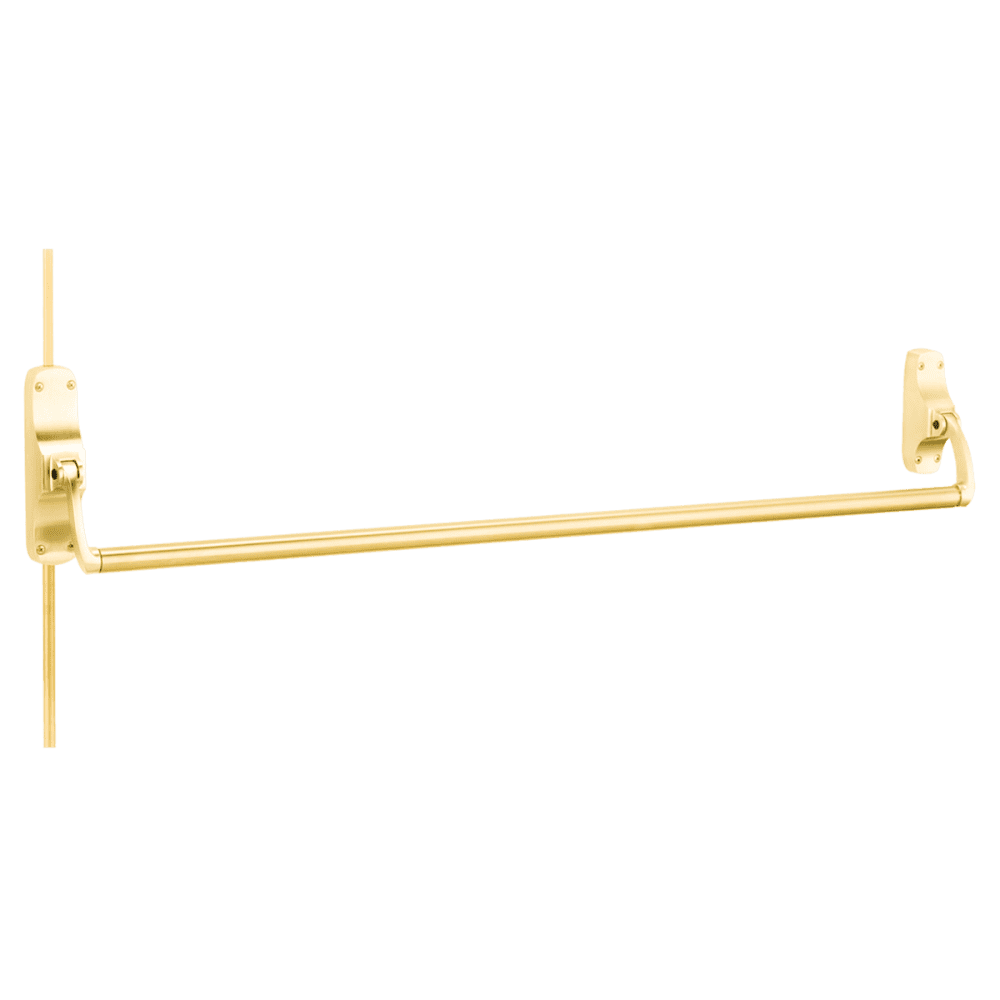

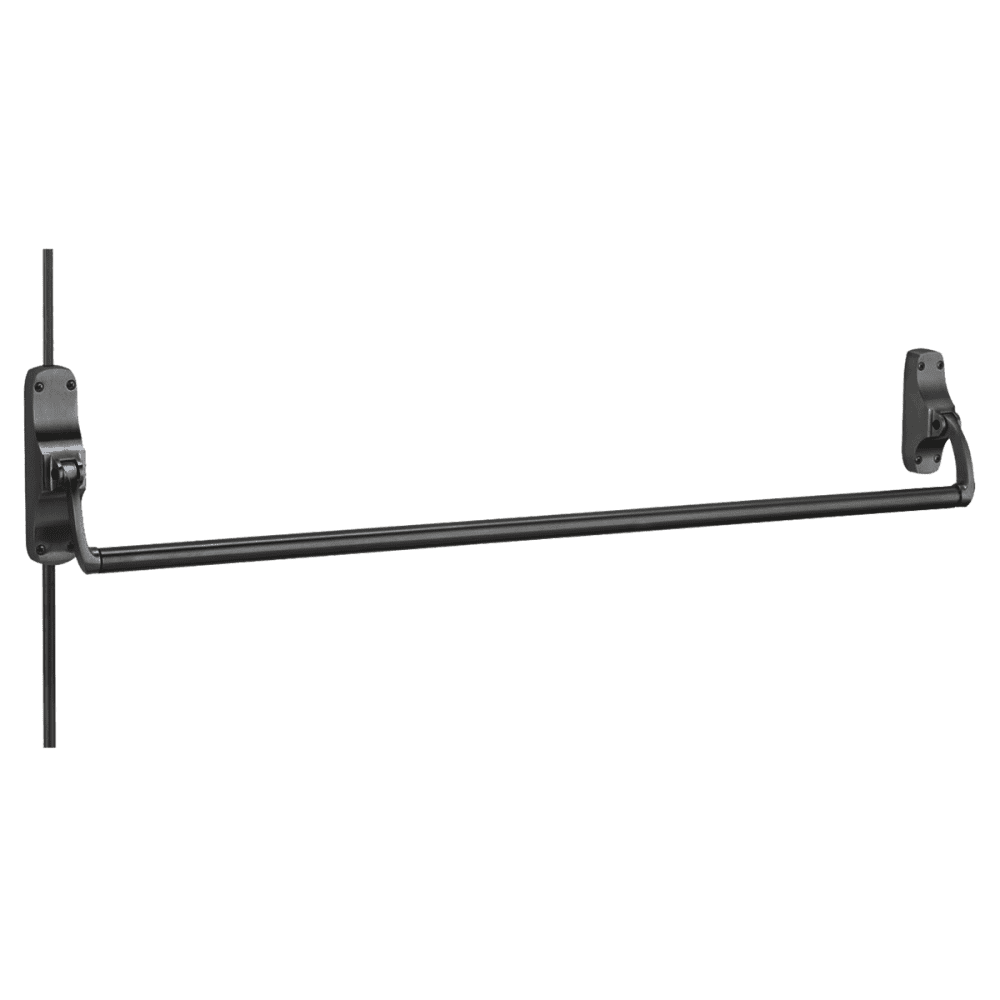

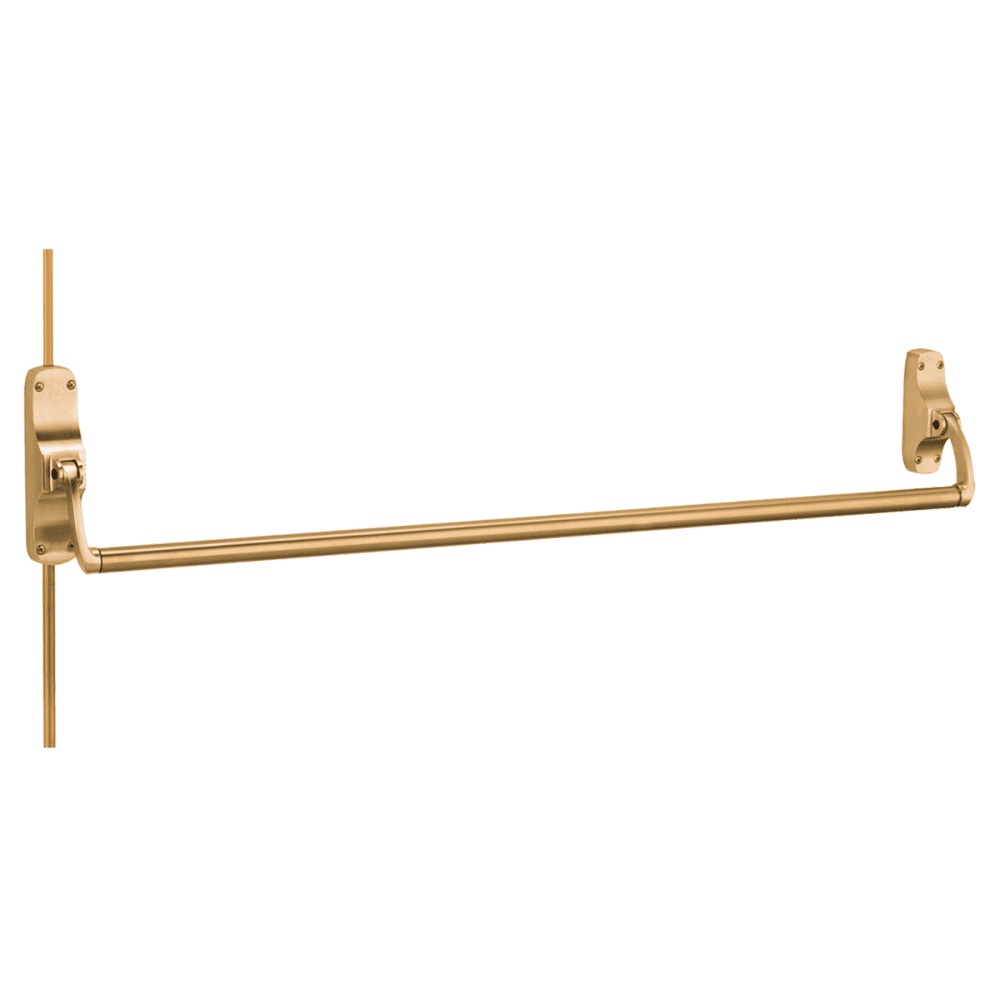

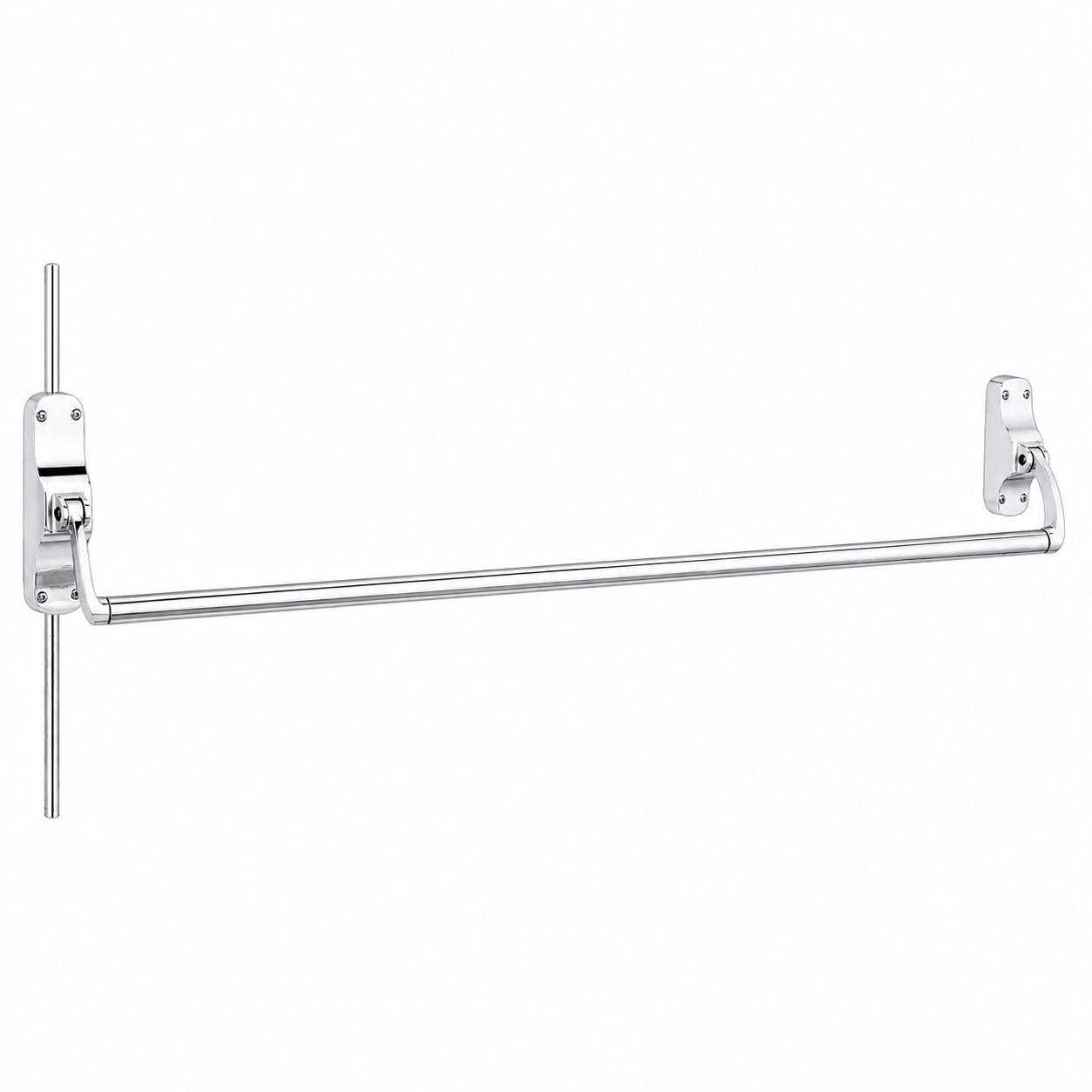

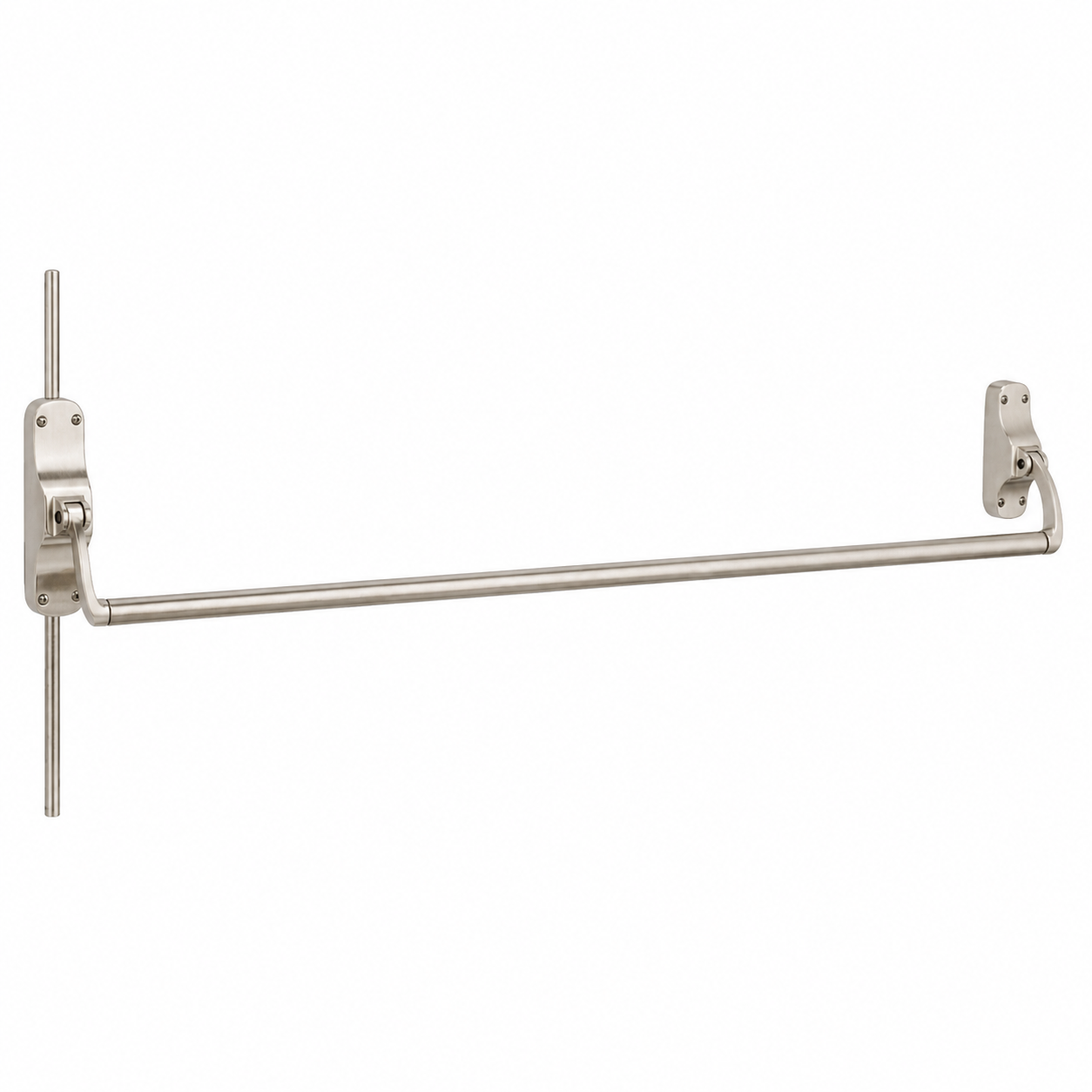

• • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D), 643E, 693 (SPBLK), 619 (US15)

Fasteners

• • All necessary mounting fasteners are included.

Features and Options

Electrified Options

• • E - Electric unlocking (BE trim only)
  • RX - Crossbar monitor switch

Mechanical Options

• • RCB - Reinforced crossbar
  • KN - Knurled crossbar

Strike

• • 301L - (Bottom) Unfinished
