Product Overview:

• 8827-F surface mounted vertical rod fire exit devices for all types of 8' X 8' (2438 mm x 2438 mm), UL listed, 3 hours.
• Fits door stiles as narrow as 3-3/4" (95 mm).

Specifications:

Device Functions:

• • Device ships  EO, DT, TP, K, L, TL

Handing

• • Field reversible

Crossbar Lengths:

• • 36" for 3' door
  • 48" for 4' door

Device Centerline

• • 39-13/16"

Crossbar centerline to finished floor

• • 36-13/16" (935 mm) at center

Lock Stile Case

• • 8-1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)

Hinge Stile Case

• • 6" x 1-3/4" x 15/16" (152 mm x 44 mm x 24 mm)

Top and bottom latch case

• • 4" x 2" x 1-7⁄8" (102 mm x 51 mm x 48 mm)

Faceplate

• • 1-1/4" x 8" x 7/32" (32 mm x 203 mm x 6 mm)

Cylinder backseat

• • 2-3/4" (70 mm)

Crossbar Tubing

• • 1" (25 mm) outside diameter

Projection

• • Neutral – 4-3/4" (121 mm)
    Depressed – 4" (102 mm)

Latch bolt

• • 5/8" (16 mm) throw

Finishes

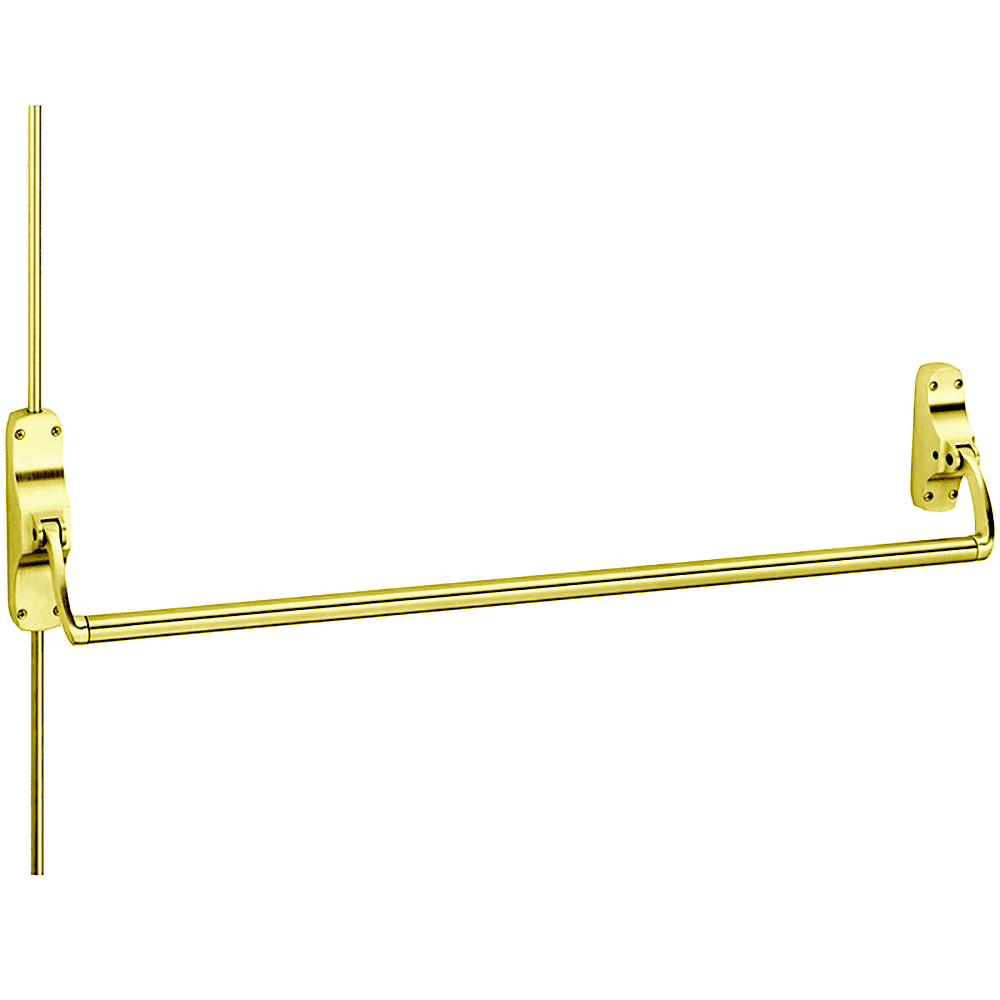

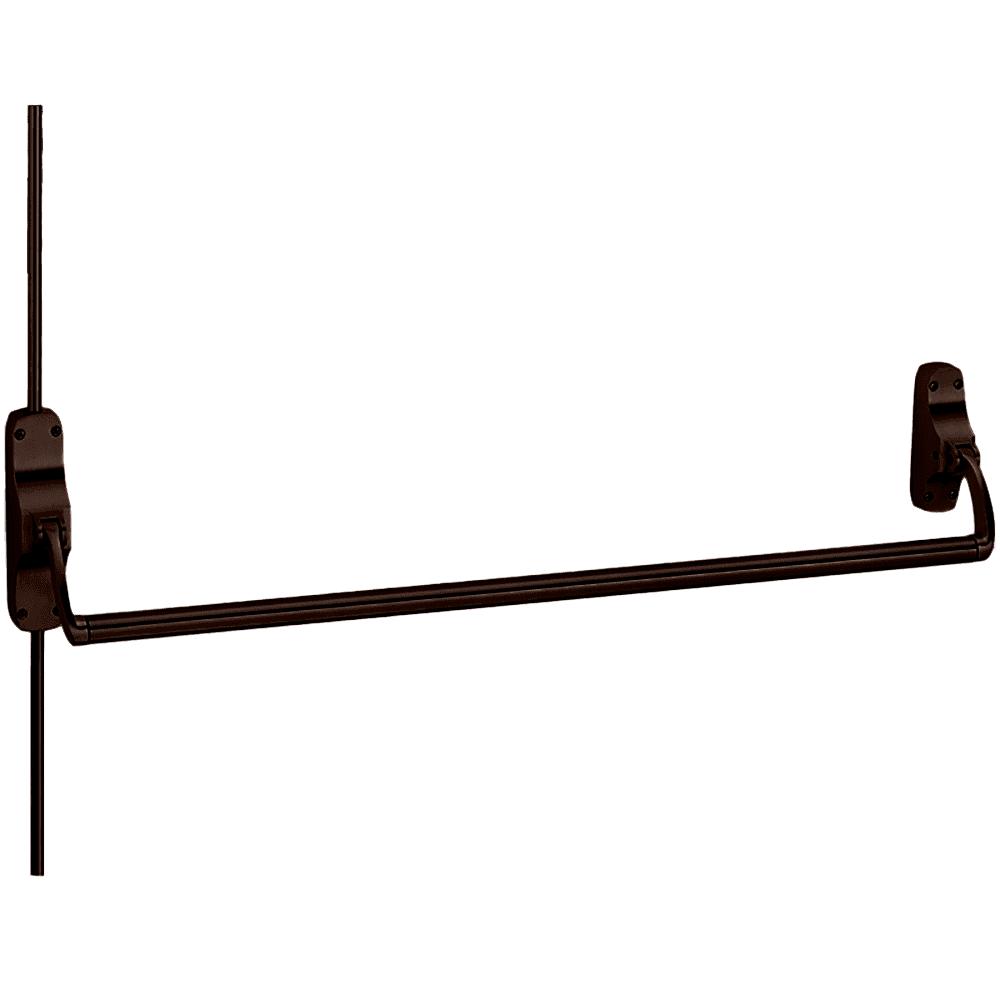

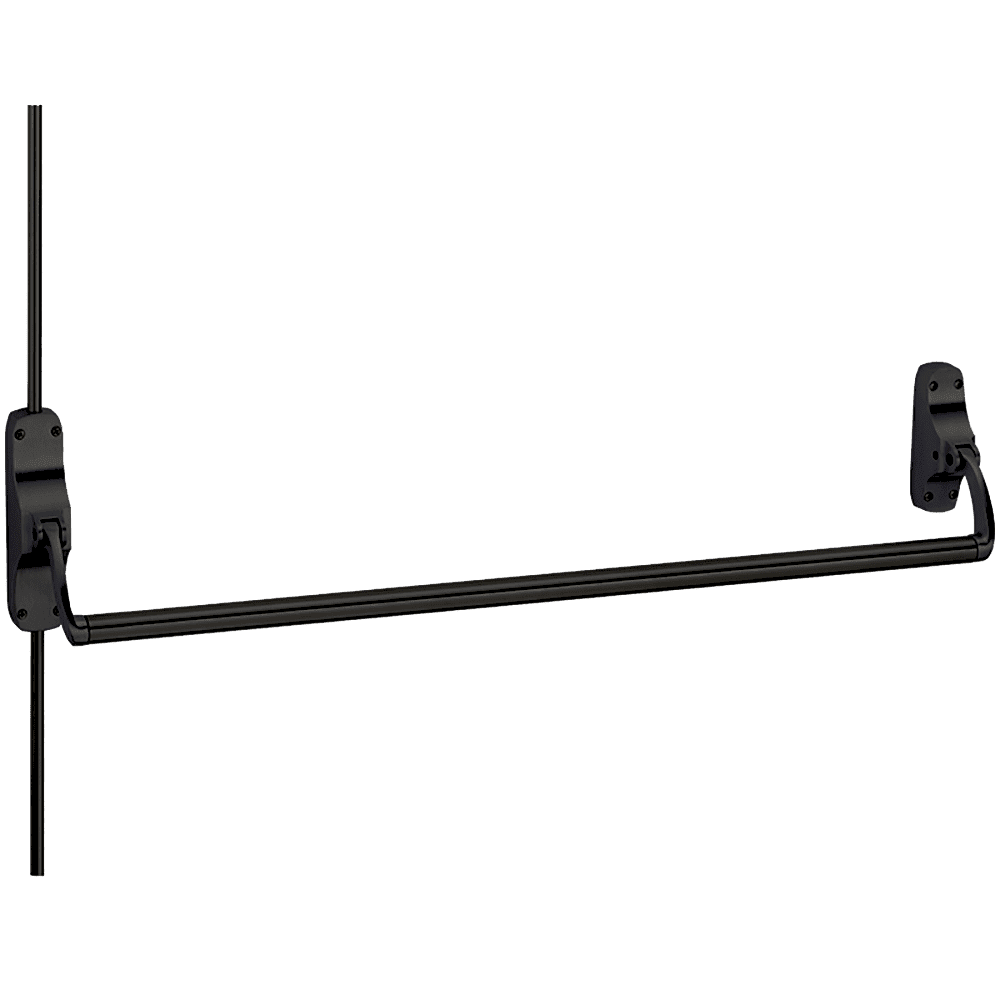

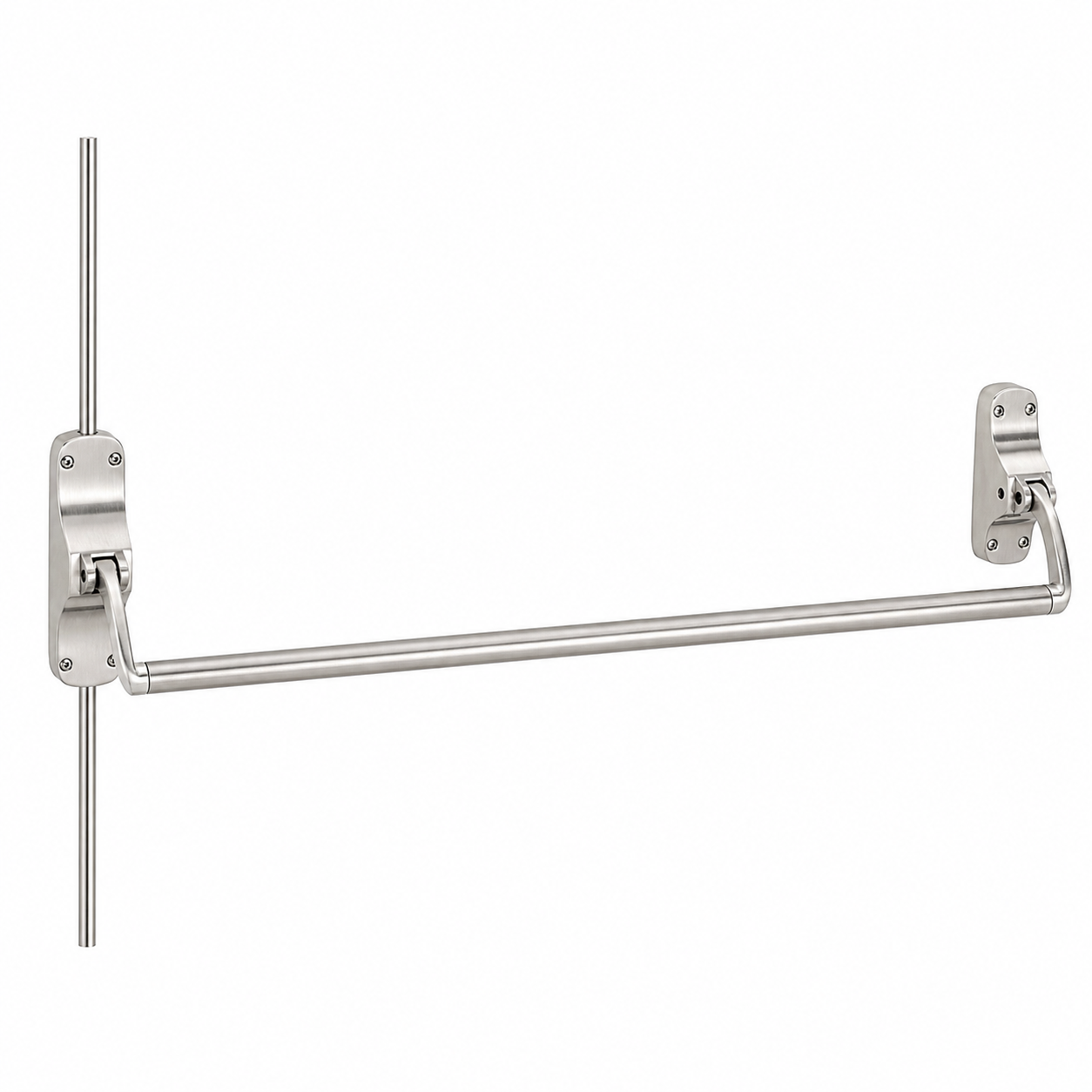

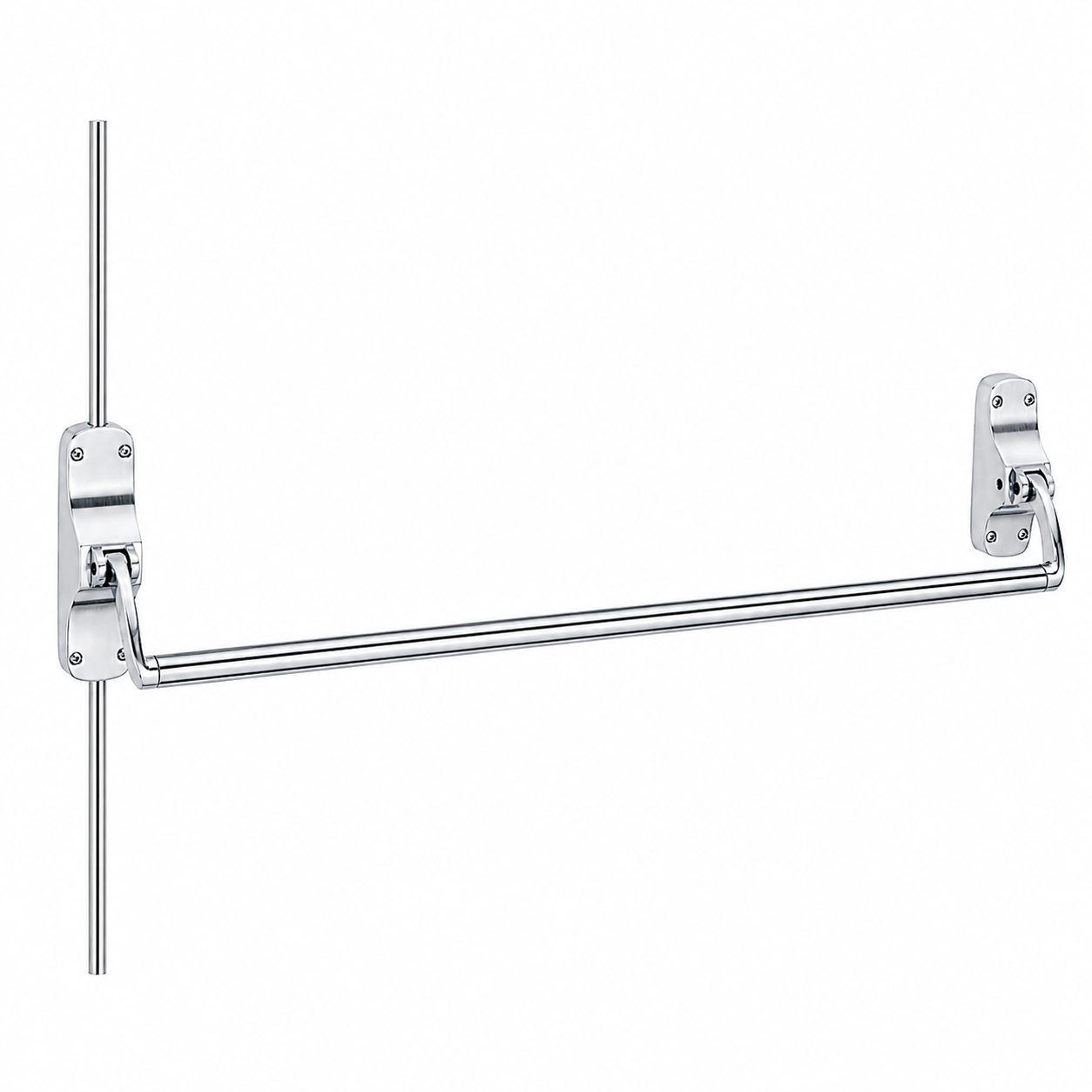

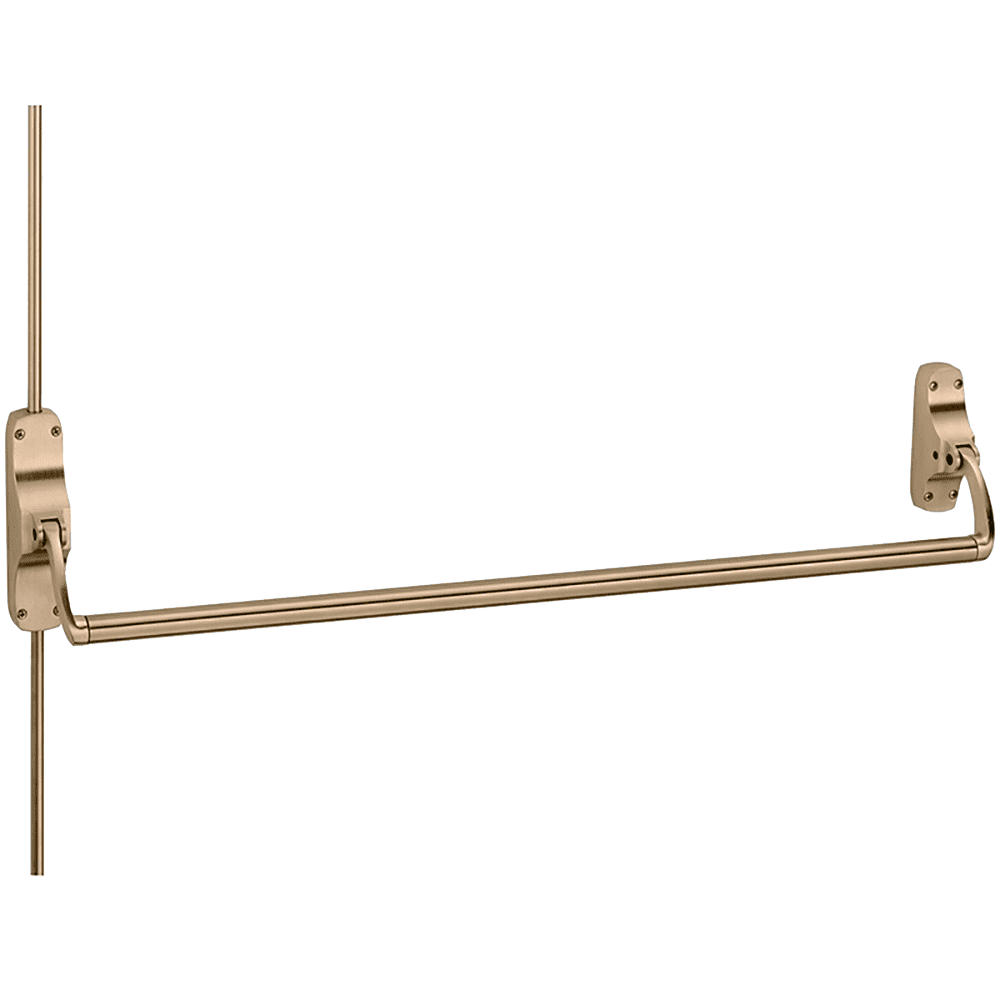

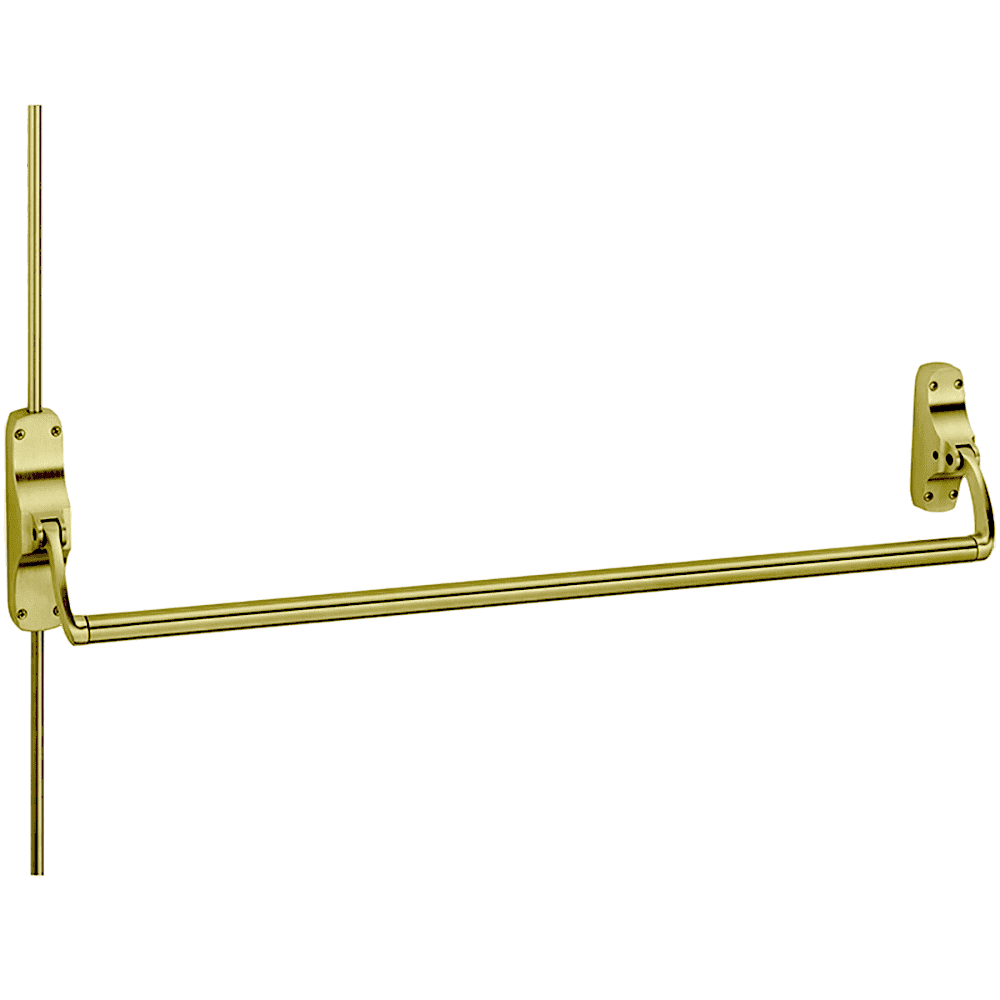

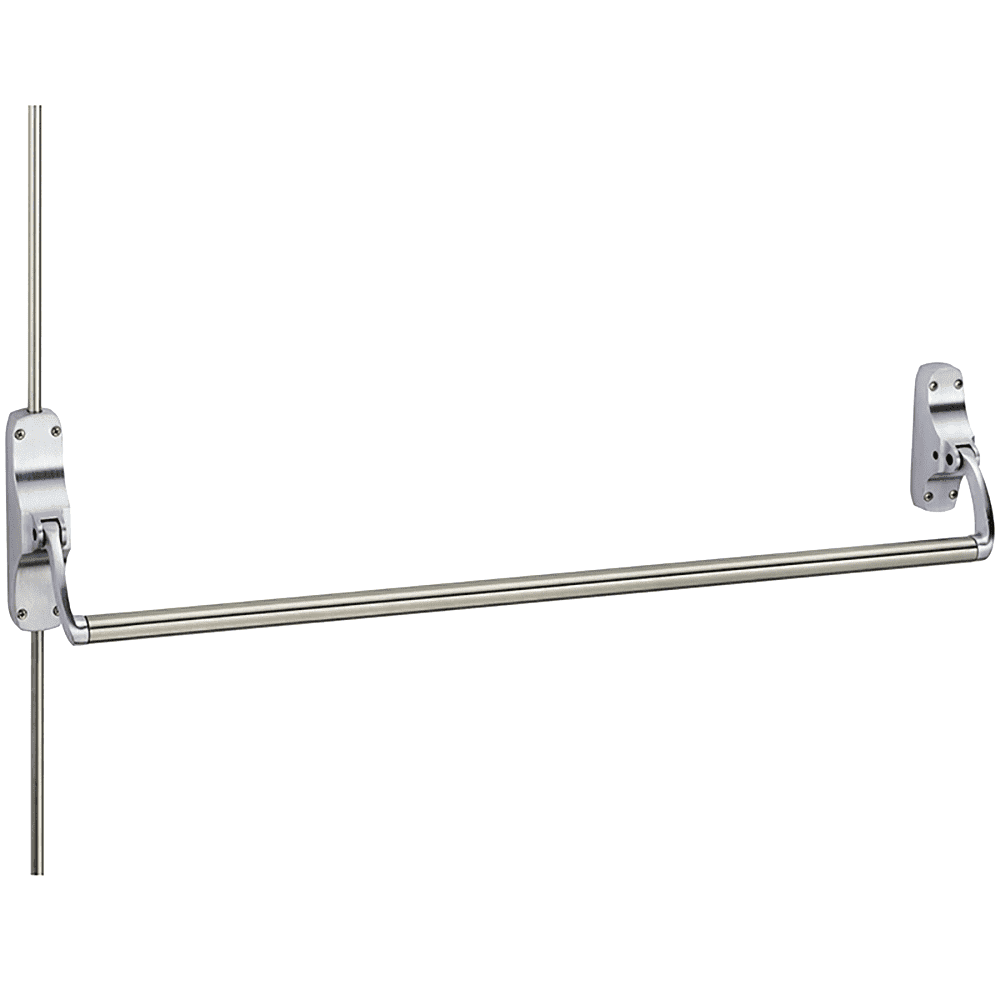

• • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D), 643E, 693 (SPBLK), 619 (US15)

Fasteners and sex bolts (SBN)

• • Includes screw pack for 1-3/4" (44 mm)
  • 2-1/4" (57 mm) thick metal or wood doors

Features and Options

Electrified Options

• • E - Electric unlocking (BE trim only)
  • RX - Crossbar monitor switch

Mechanical Options

• • RCB - Reinforced crossbar
  • KN - Knurled crossbar
  • PL - Pullman latch top and bottom

Strike

• • 304L - (Bottom) Unfinished
