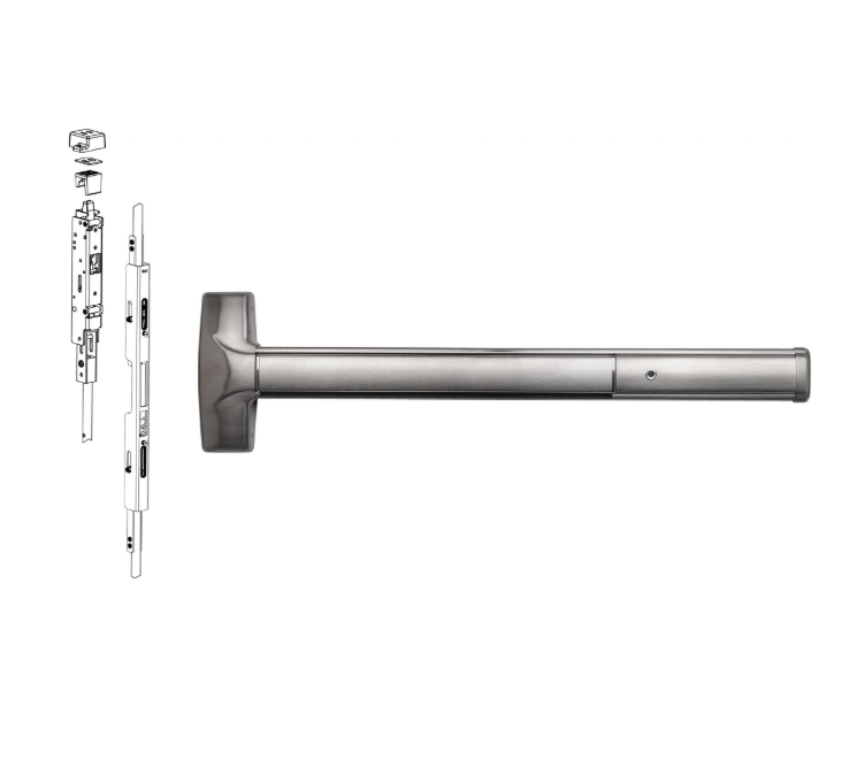

Features

• 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
• Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
• Top strike both secures the door and re-engages the latchbolts
• Patented deadlocking of top and bottom bolt assemblies
• Durable steel bottom drop bolt
• Rods are easily adjustable with rods installed in door
• Handed - field reversible
• Field sizeable
• 1/8 turn dogging

Benefits

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
• Minimal door prep saves time and money
• Outside trims are easily changed or rekeyed without removing device from door (exception: 03WSV)
• Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money

Mechanical Options

• F - 3-Hour Fire Rated

Custom Length

• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Dogging Option

• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging

Finishes

• 605 / US3 - Polished Brass
• 606 / US4 - Brushed Brass
• 611 / US9 - Polished Bronze
• 612 / US10 - Brushed Bronze
• 613 / US10B - Oil Rubbed Bronze
• 628 / US28 - Aluminum Satin
• 629 / US32 - Polished Stainless Steel
• 630 / US32D - Brushed Stainless Steel
• 693 / SPBLK - Black, Painted
• 695 / SP 313 - Dark Bronze, Painted

Technical Information

•  Door Types - Hollow Metal
• Minimum Stile - 5"
• Door Thickness - Fits standard 1-3/4" - 2 1/4" (for other door thicknesses contact factory)
• Fasteners - Machine and Self-Drilling Screws standard
• Rail is heavy ribbed aluminum extrusion
