Picture of Schlage

SKU: 798C-18

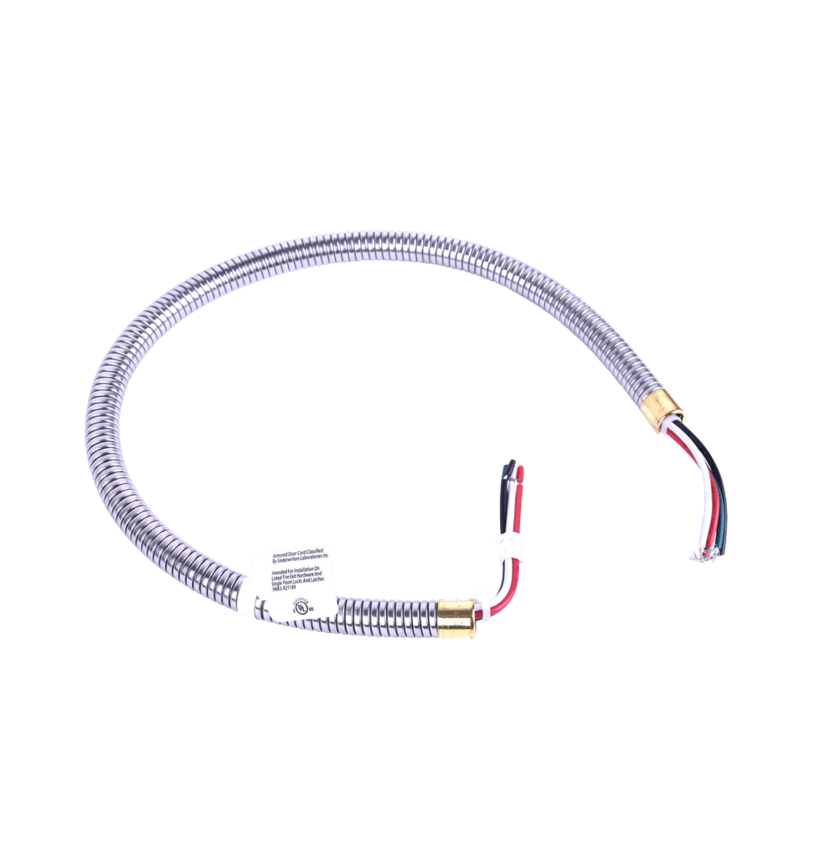

Schlage 798C-18 Flexible Armored Door Cord with Wire

Schlage 798C-18 Flexible Armored Door Cord with Wire

Schlage

SKU: 798C-18

Schlage 798C-18 Flexible Armored Door Cord with Wire

In stock

The Schlage 798C-18 is a flexible armored door cord with wire designed to provide a protected connection between the door frame and door for commercial electronic access control applications.

Schlage 798C-18 is an 18-inch flexible armored door cord with four 20-gauge conductor wires. It provides a protective path for electrical wiring between the door frame and door for applications involving electrified locks and electrified exit devices.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 798C-18
Product Name: Flexible Armored Door Cord with Wire
Cord Length: 18 inches
Conductor Wires: Four (4) 20-gauge wires
Wire Length: 26 inches
Interior Diameter: 3/8 inch
Outside Diameter: 1/2 inch
Door Application: Outswinging
Door Swing: 90° swinging doors
Mounting: Surface Mounted
Conductor Wires: Red, green, white, and black
Primary Function: Provides a protected path for electrical wiring between the frame and door
Application: Electrical door devices, including electrified locks and electrified exit devices
OEM Part: Yes
Warranty: 12 months from date of installation or 18 months from date of shipment from the manufacturer's factory
$215.00
$150.50
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 798C-18?
The Schlage 798C-18 is an 18-inch flexible armored door cord.
What is the Schlage 798C-18 used for?
It provides a protected conduit for running electrical wiring from the door frame to the door for devices such as electrified locks and electric exit devices.
What type of door is the 798C-18 designed for?
The 18-inch 798C-18 configuration is designed for outswinging doors with a 90° swing.
How many wires are included with the 798C-18?
The 798C-18 includes four 20-gauge conductor wires that are 26 inches long.
Is the Schlage 798C-18 an OEM replacement part?
Yes. The Schlage 798C-18 is an OEM Schlage flexible armored door cord with wire.

chlage 798C-18 is an 18-inch armored door cord with four 20-gauge wires for 90° outswinging doors. Fits the Schlage 798 Series.

chlage 798C-18 is an 18-inch armored door cord with four 20-gauge wires for 90° outswinging doors. Fits the Schlage 798 Series.

chlage 798C-18 is an 18-inch armored door cord with four 20-gauge wires for 90° outswinging doors. Fits the Schlage 798 Series.
