Schlage 798C-12 Flexible Armored Door Cord with Wire

Schlage 798C-12 Flexible Armored Door Cord with Wire

Schlage

SKU: 798C-12

Schlage 798C-12 Flexible Armored Door Cord with Wire

In stock

Schlage 798C-12 is a flexible armored door cord with wire designed to provide a protected wiring path between the door and frame for commercial electronic access control applications.

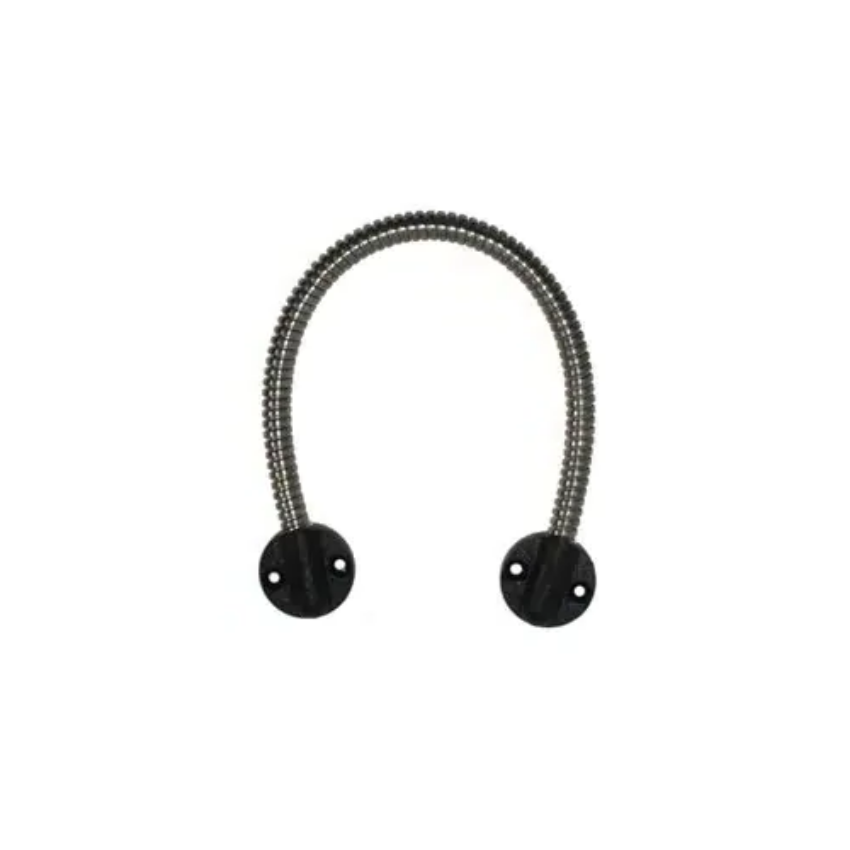

Schlage 798C-12 is a 12-inch Flexible Armored Door Cord with Wire from the 798 Series. It provides a protective conduit for wires running from the door frame to the door when installing electrical devices such as electrified locks or electrified exit devices.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 788C-18
Product Name: Flexible Armored Door Cord with Wire
Cord Length: 12 inches
Conductor Wires: Four (4) 20-gauge wires
Wire Length: 20 inches
Interior Diameter: 5/16 inch
Outside Diameter: 3/8 inch
Door Application: Inswinging
Door Swing: 90° swinging doors
Mounting: Surface Mounted
Conductor Wires: Red, green, white, and black
Primary Function: Provides a protected path for electrical wiring between the frame and door
Application: Electrical door devices, including electrified locks and electrified exit devices
OEM Part: Yes
Warranty: 12 months from date of installation or 18 months from date of shipment from the manufacturer's factory
$183.00
$128.10
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 798C-12?
The Schlage 798C-12 is a 12-inch flexible armored door cord with wire.
What is the Schlage 798C-12 used for?
It provides a protected path for electrical wiring between a door frame and door for applications involving electrified locks and electrified exit devices.
What type of doors is the 798C-12 designed for?
The 798C-12 is designed for 90° inswinging doors.
Does the Schlage 798C-12 include wires?
Yes. The 798C-12 includes four 20-gauge conductor wires.
Is the Schlage 798C-12 an OEM Schlage replacement part?
Yes. Schlage 798C-12 is a genuine Schlage OEM replacement part.

Schlage 798C-12 flexible armored door cord with four 20-gauge wires for 90° inswinging doors. Includes 20-inch conductors for electrified door hardware.
