Schlage 788C-12 Armored Door Cord with Wire

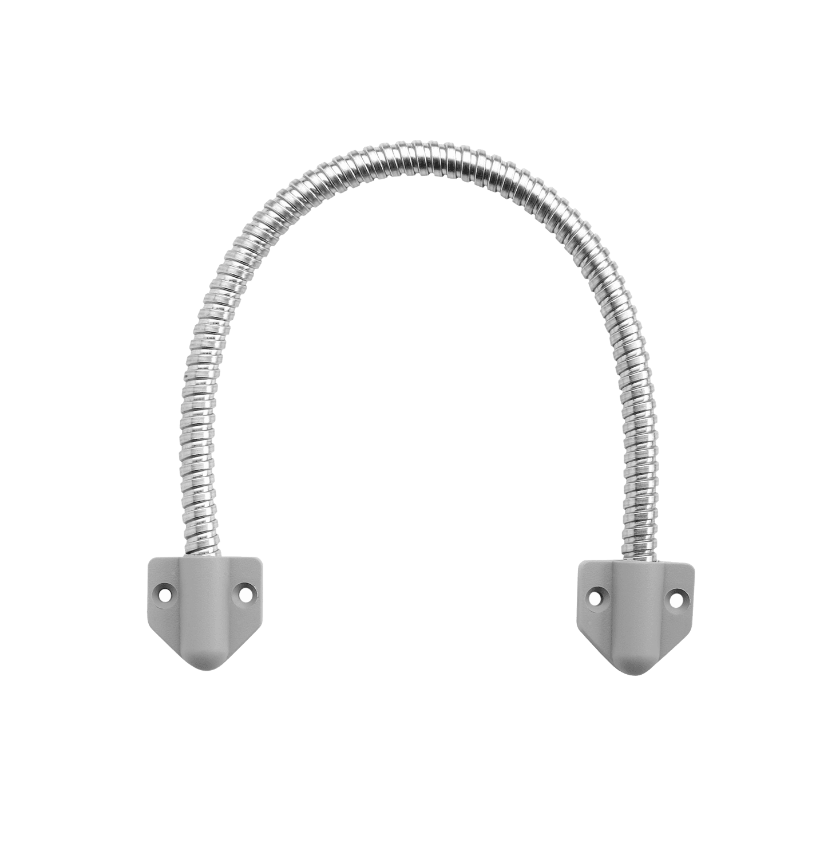

Schlage 788C-12 armored door cord with conductor wire

Schlage

SKU: 788C-12

Schlage 788C-12 Armored Door Cord with Wire

In stock

Schlage 788C-12 is an armored door cord designed to protect and route electrical wiring between a door and frame for commercial door hardware applications.

Schlage 788C-12 is a 12-inch armored door cord with four pre-installed 20-gauge conductor wires. The 788C-12 is designed for surface mounting on 90° swinging, inswinging doors.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 788C-12
Product Name: Armored Door Cord with Wire
Cord Length: 12 inches
Conductor Wires: Four (4) 20-gauge wires
Wire Length: 20 inches
Interior Diameter: 5/16 inch
Outside Diameter: 3/8 inch
Door Application: Inswinging
Door Swing: 90° swinging doors
Mounting: Surface Mounted
Conductor Wires: Red, green, white, and black
Primary Function: Provides a protective conduit for wiring from the frame to the door
Application: Electrical door devices, including electrified locks and electrified exit devices
OEM Part: Yes
Warranty: 12 months from date of installation or 18 months from date of shipment from the manufacturer's factory
$183.00
$128.10
minus minus

Catalogs

Frequently Asked Questions

What is Schlage 788C-12?
Schlage 788C-12 is a 12-inch armored door cord with four pre-installed 20-gauge conductor wires.
What does the Schlage 788C-12 do?
It provides a protected path for wiring between the door frame and door and is used to transfer power for electrical door hardware.
What type of doors is the Schlage 788C-12 designed for?
The Schlage 788C-12 is designed for 90° swinging, inswinging doors.
Is Schlage 788C-12 an OEM replacement part?
Yes. Schlage 788C-12 is an OEM Schlage replacement part.
Why choose a genuine Schlage replacement part?
Genuine Schlage OEM replacement parts are designed and specified by Schlage for use with its commercial electronic hardware and access control products.
