Product Overview:

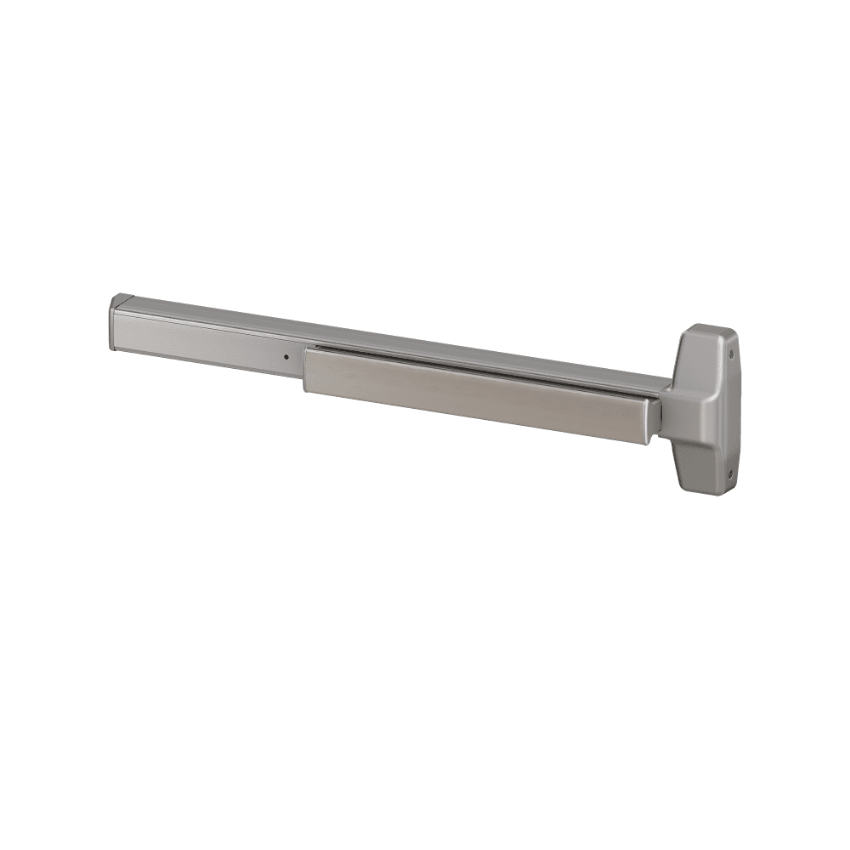

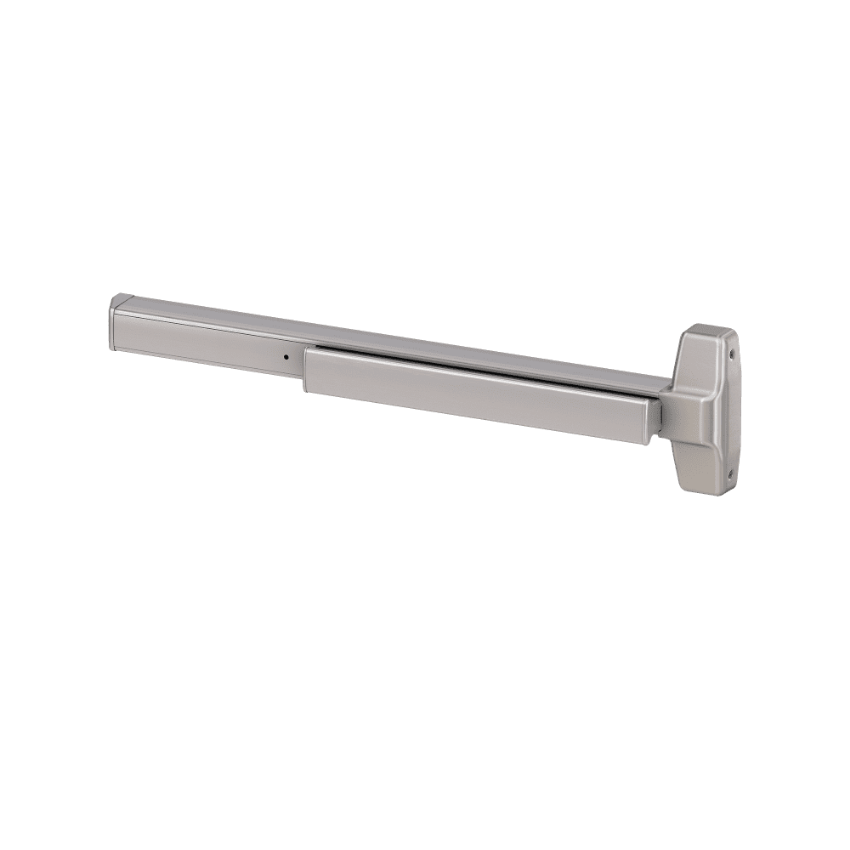

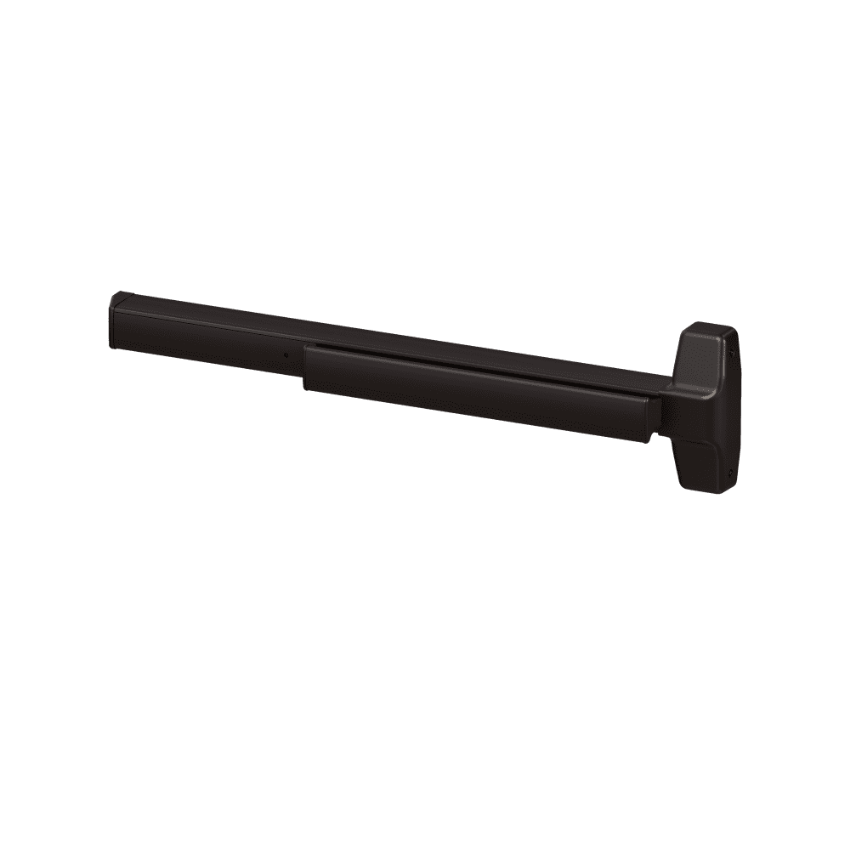

• 7847WDC Concealed vertical rod device for use on single or double wood doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 Grade 1.

Click Here for 7847WDC-F-EO CVR Fire Rated Exit Device

Specifications:

Device Functions:

• • Device ships EO/DT/NL
  • Field selectable

Device Lengths:

• • 36" - 2' 6" to 3' (762mm to 914mm) door size
  • 48" - 3' to 4' (914mm to 1219mm) door size

Device centerline from finished floor

• • 39-13/16" (1011mm)
  • 39-11/16" (1008mm) with mullion

Center case

• • 7-7/8" x 2-3/4" x 2-3/8" (200mm x 70mm x 60mm)

Mechanism case

• • 2-5/16" x 2-1/8" (59mm x 54mm)

Projection

• • Pushbar neutral - 3-13/16" (97 mm)
  • Pushbar depressed - 3-1/16" (78mm)

Latch bolt

• • Deadlocking top bolt, 5/8" (16mm) throw

Door undercut

• • 1/4" (7mm) maximum

Top and bottom latch case

• • 3 3⁄4" x 1 1⁄2" x 1" (95mm x 38mm x 25mm)

Vertical rods

• • Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm).
  • Bottom rod adjustable 35-5⁄8" (905mm) to 49-5⁄8" (1260 mm).
  • Extension rod kits available for doors over 8'4" (2533mm).

Scalp plate

• • Device is furnished standard with an 8" (203mm) long scalp plate for easy access to rods

Finishes

• • US26D (626), US28 (628), 313 (710), US4 (606), US3 (605), US15 (619), US26 (625), 315 (711), 643E, US32D (630), US10 (612)

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick wood doors. (425 SNB required on wood doors without SLM blocking)

Features and Options

Electrified Options

• • LX - Latch bolt monitor switch

  • RX - Request to exit

  • E - Electric locking and unlocking trim

  • ALK - Alarm exit kit

  • CON - Allegion Connect

  • QEL - Quiet electric latch retraction

Mechanical Options

• • GBK - Glass bead kit
  • LBR - Less bottom rod
  • SNB - Sex bolts
  • SEC - Security screws

Dogging Options

• • HD - Hex Dogging (Standard)
  • CD - Cylinder dogging
  • LD - Less dogging

Strike

• • 338 Strike - Top, Unfinished
  • 385A Strike - Bottom, Unfinished
