Product Overview:

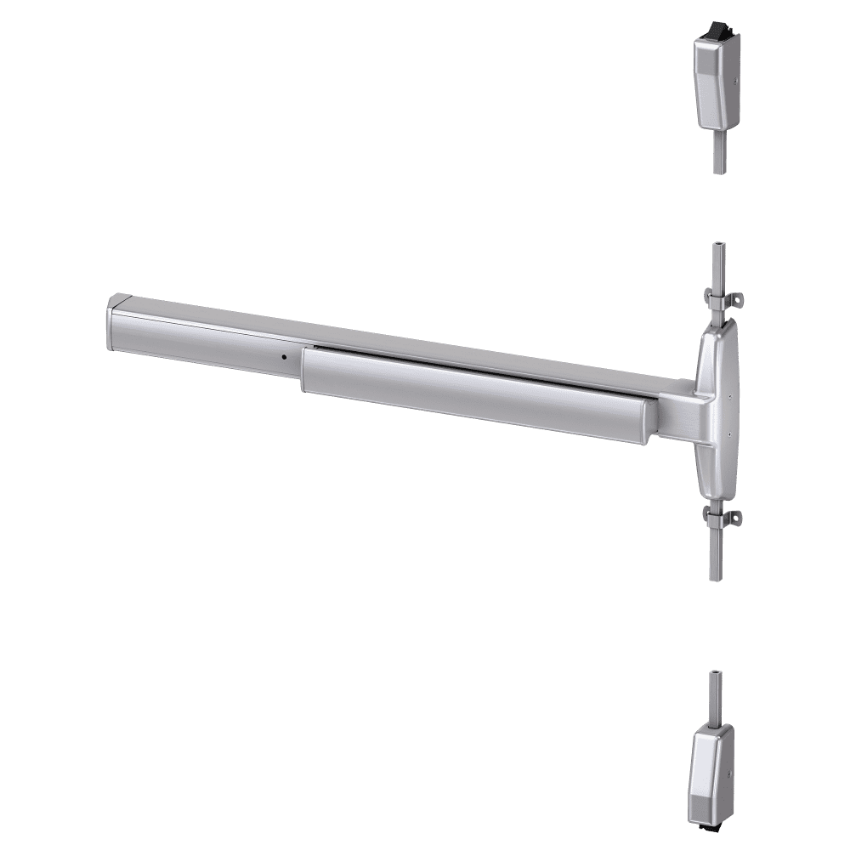

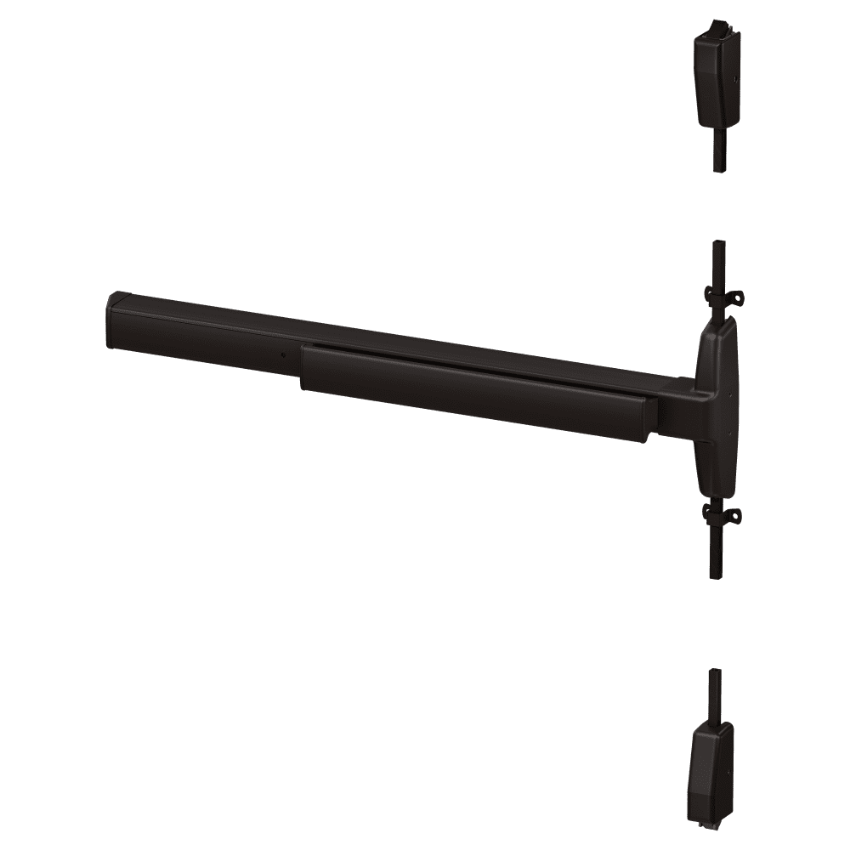

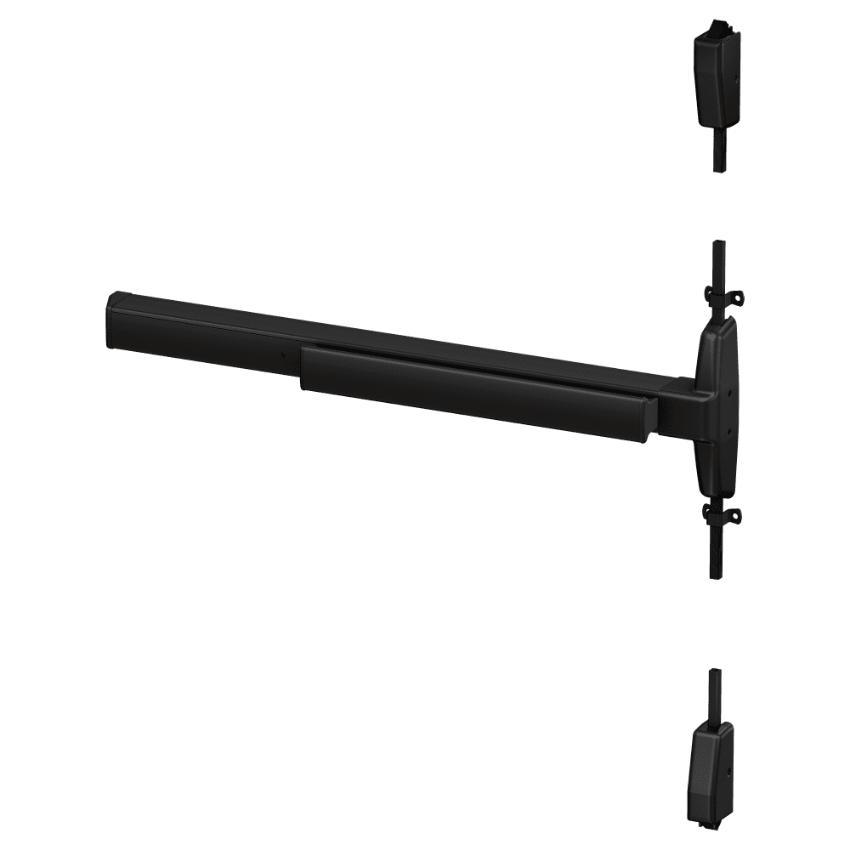

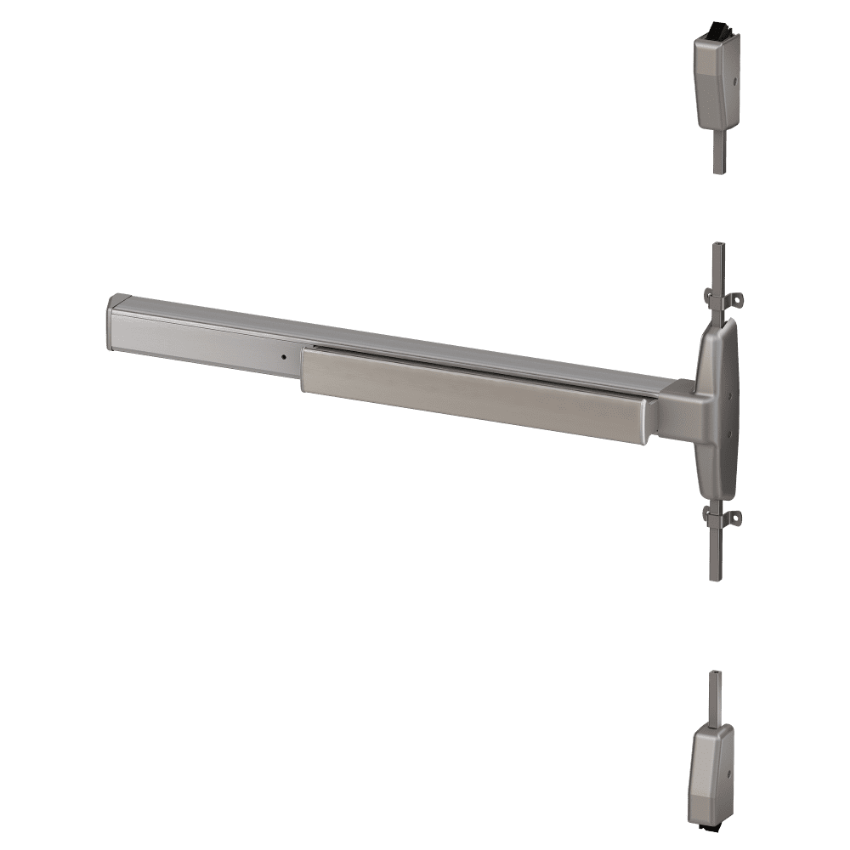

• 7527 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 Grade 1.
• Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.

Click Here for 7527-F-EO Fire Rated Exit Device

Specifications:

Device Functions:

• • Device ships EO/DT/NL
  • Field selectable

Device Lengths:

• • 36" - 2' 6" to 3' (762mm to 914mm) door size
  • 48" - 3' to 4' (914mm to 1219mm) door size

Device centerline from finished floor

• • 39-13/16" (1011mm)
  • 39-11/16" (1008mm) with mullion

Center case

• • 9" x 1-5/8" x 2-3/8" (229mm x 41mm x 60mm)

Mechanism case

• • 2-5/16" x 2-1/8" (59mm x 54mm)

Projection

• • Pushbar neutral - 3-13/16" (97 mm)
  • Pushbar depressed - 3-1/16" (78mm)

Latch bolt

• • Deadlocking, 5/8" (15.875mm) throw

Finishes

• • US26D (626), US28 (628), 313 (710), US4 (606), US3 (605), US15 (619), US26 (625), 315 (711), 643E, US10 (612)

Pushbar length

• • 3' 18" (457mm)
  • 4' 24" (610mm)

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1-3/4" (4mm) and 2-1/4" (57mm) thick metal or wood doors (Optional 425 SNB available)

Features and Options

Electrified Options

• • LX - Latch bolt monitor switch

  • RX - Request to exit

  • E - Electric locking and unlocking trim

  • ALK - Alarm exit kit

  • CON - Allegion Connect

  • QEL - Quiet electric latch retraction

Mechanical Options

• • GBK - Glass bead kit
  • LBR - Less bottom rod
  • SNB - Sex bolts
  • SEC - Security screws

Dogging Options

• • HD - Hex Dogging (Standard)
  • CD - Cylinder dogging
  • LD - Less dogging

Strike

• • 266 - Top Strike, ships standard (Dull Black).
  • 248L4 - Bottom strike For use with flat threshold
  • 304L - Bottom strike (Unfinished)
