Picture of Schlage

SKU: 701RDEXILL

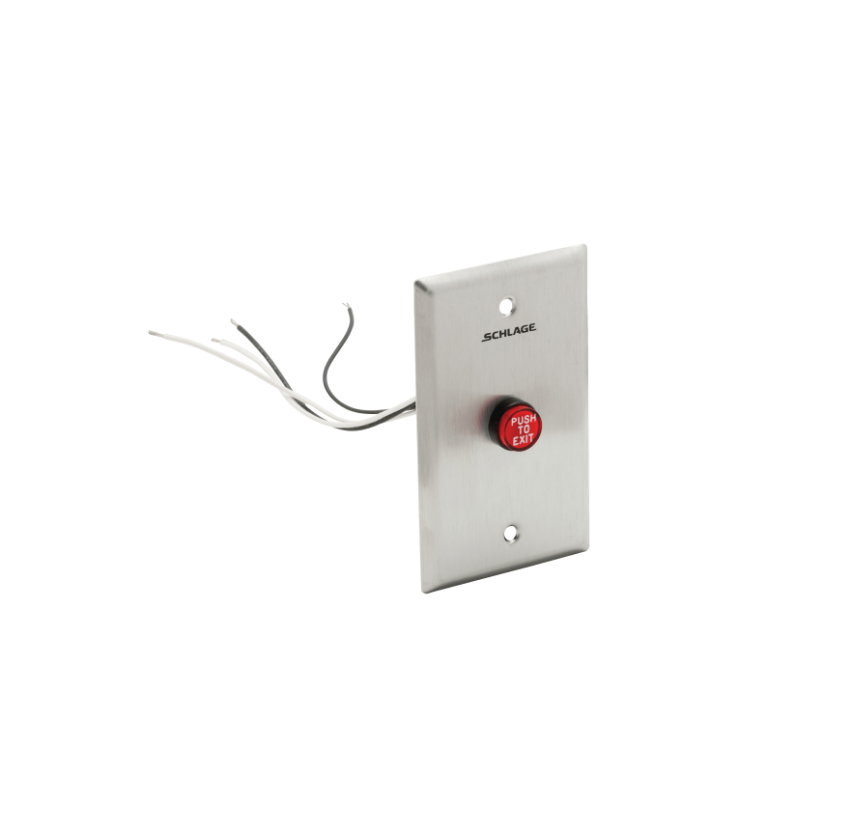

Schlage 701RDEXILL Illuminated Red Button PUSH TO EXIT, 5/8"

Schlage 701RDEXILL Illuminated Red Button - Standard

Schlage

SKU: 701RDEXILL

Schlage 701RDEXILL Illuminated Red Button PUSH TO EXIT, 5/8"

In stock

The Schlage 701RDEXILL is an illuminated red pushbutton with a 5/8-inch button and “PUSH TO EXIT” marking for commercial door access control applications.
*
*

The Schlage 701RDEXILL is a 5/8-inch illuminated red pushbutton marked “PUSH TO EXIT.” It is part of the Schlage 700 Series and is used for door ingress and egress control in commercial electronic access control applications. The button uses momentary SPDT contacts with a 3A @ 30 VAC/VDC contact rating. The illuminated option operates with 12/24 VDC input and has a 30 mA current draw.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 701RDEXILL
Product Type: Pushbutton
Button Marking: Engraved "PUSH TO EXIT"
Cover Plate: Stainless steel
Standard Action: Momentary
Contact Type: Single Pole Double Throw (SPDT)
Contact Rating: 3A @ 30 VAC/VDC
Primary Function: Pushbutton control for door ingress and/or egress
Application: Commercial access control installations for door ingress and/or egress
OEM Part: Yes

$299.00
$269.10
minus minus

Price Books

Frequently Asked Questions

What is the Schlage 701RDEXILL?
The 701RDEXILL is a 5/8-inch red button with illuminated “PUSH TO EXIT” marking in the Schlage 700 Series.
What is the Schlage 701RDEXILL used for?
The 701RDEXILL is used for door egress control in commercial electronic access control applications.
When should the Schlage 701RDEXILL be replaced?
The 701RDEXILL should be considered for replacement when the pushbutton or illumination no longer operates properly, is damaged, or requires replacement as part of servicing the access control installation.
Is the 701RDEXILL an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
Why choose a genuine OEM replacement?
A genuine Schlage OEM replacement helps maintain the specified design, electrical characteristics, and intended operation of the compatible Schlage access control system.
