Schlage 653-14 DPDT Maintained Keyswitch

SKU: 653-14

Schlage 653-14 DPDT Maintained Keyswitch

Schlage

SKU: 653-14

Schlage 653-14 DPDT Maintained Keyswitch

Available (3 - 4 Weeks)

Schlage 653-14 is a DPDT maintained single-direction keyswitch for 650 Series applications, using key activation to provide maintained switching for electronic access control and related equipment.

Finish *

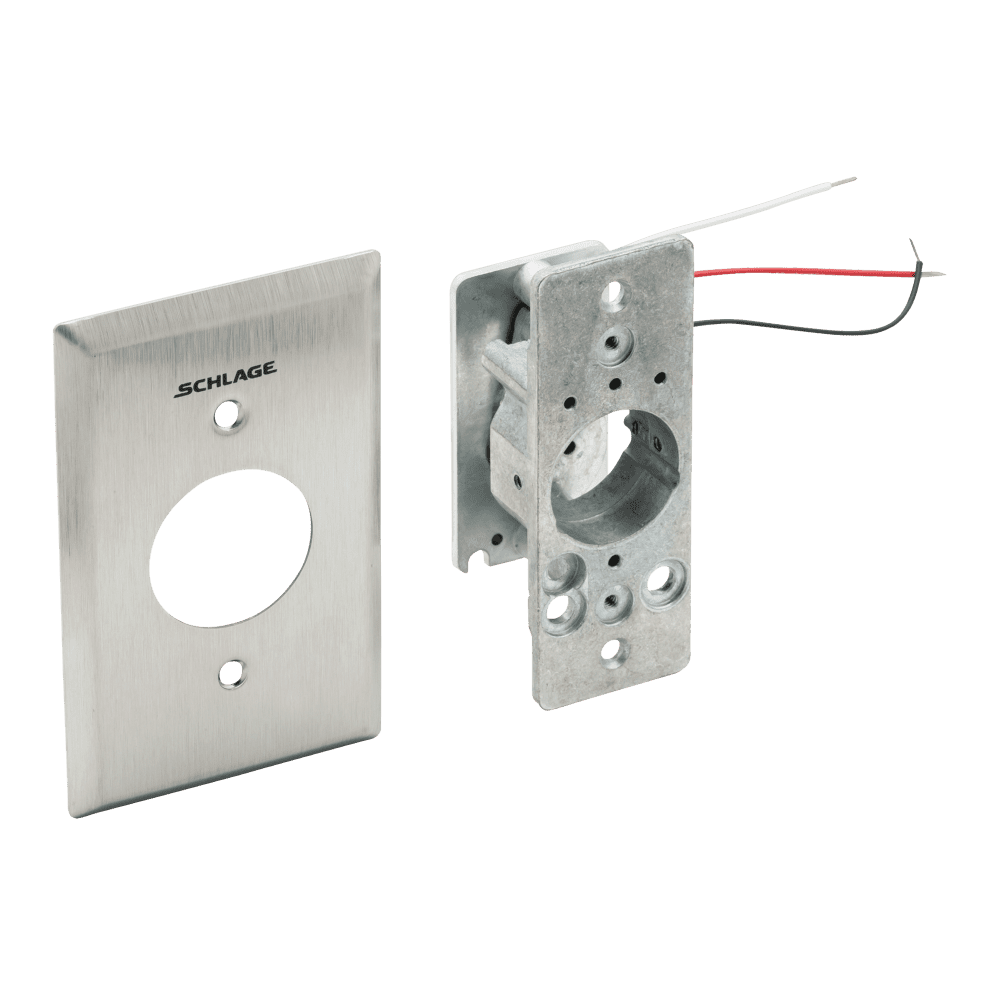

630 / US32D - Satin Stainless Steel
Not available

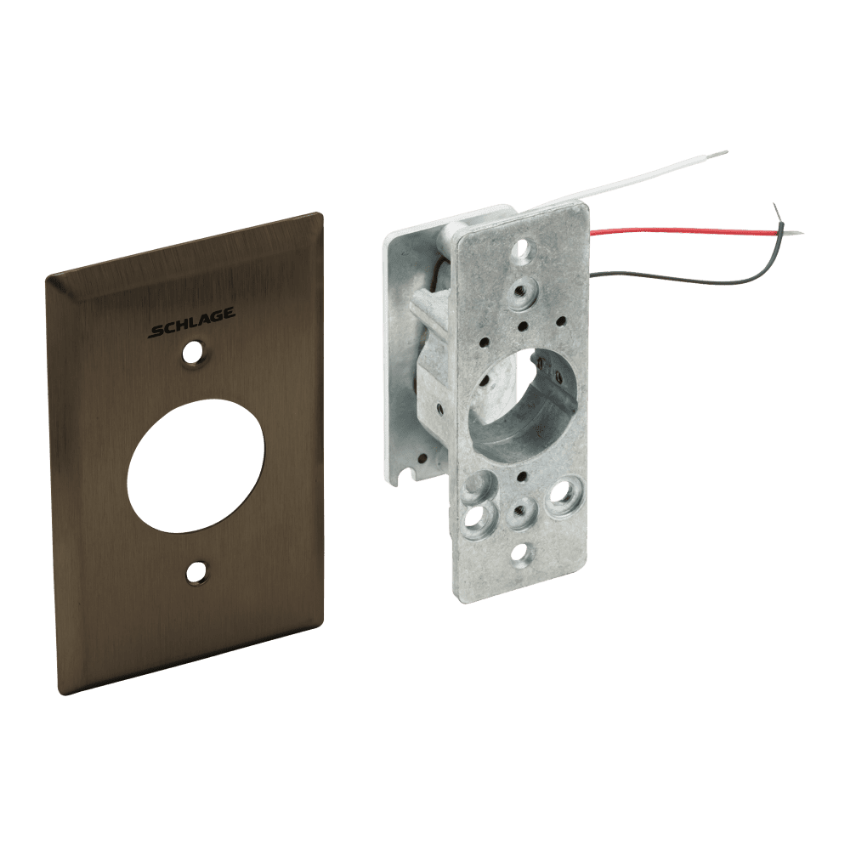

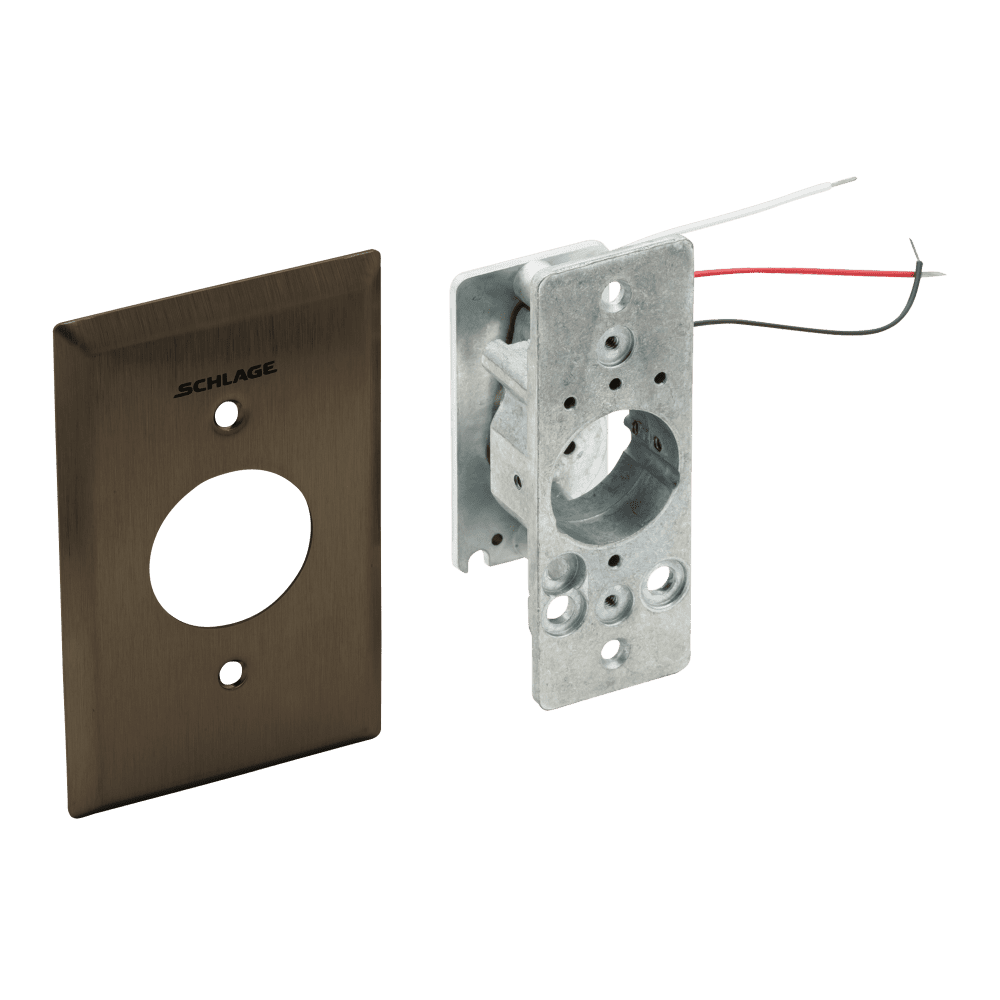

SF-613 - Oil Rubbed Bronze
Not available

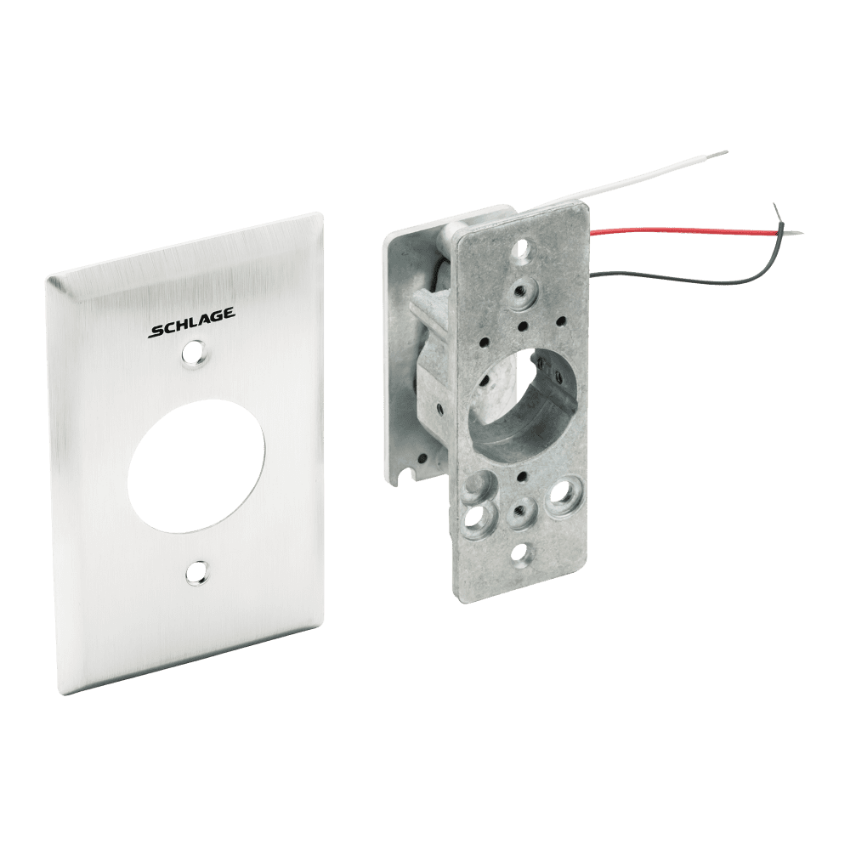

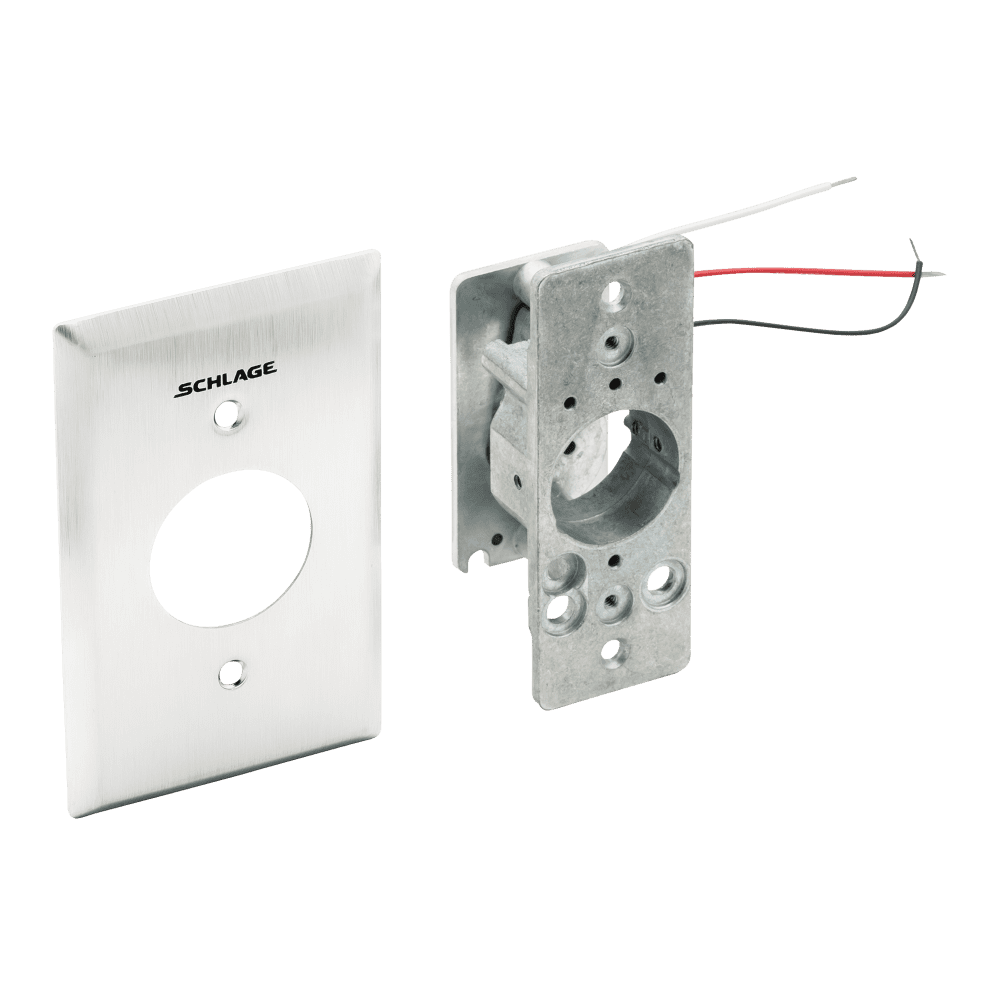

SF-625 - Bright Chrome
Not available

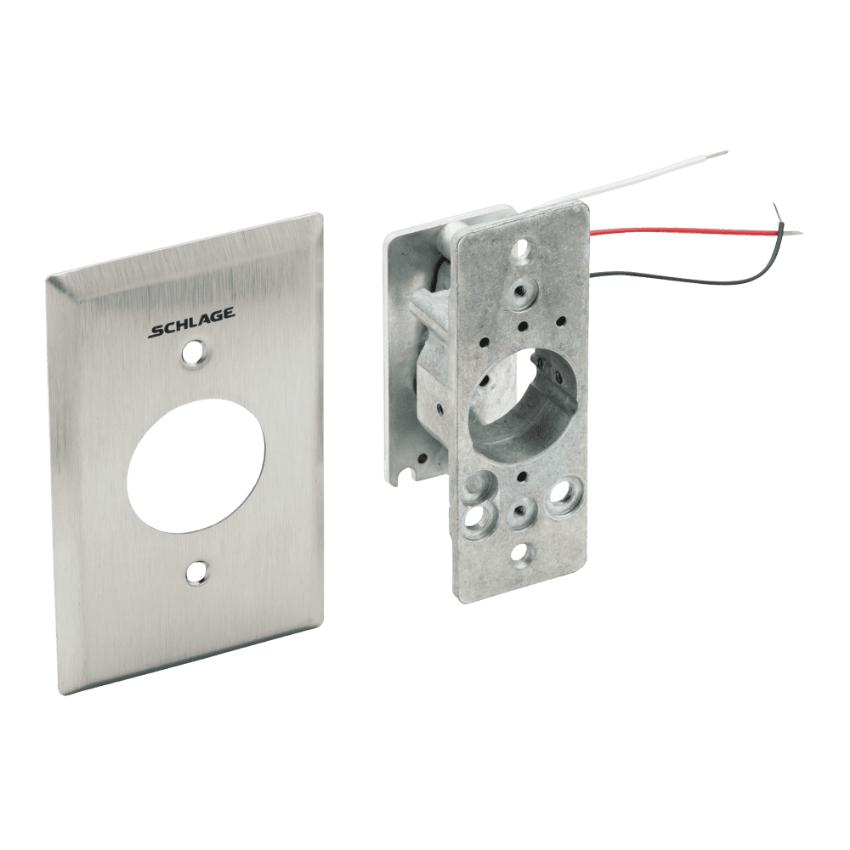

SF-626 - Satin Chrome
Not available

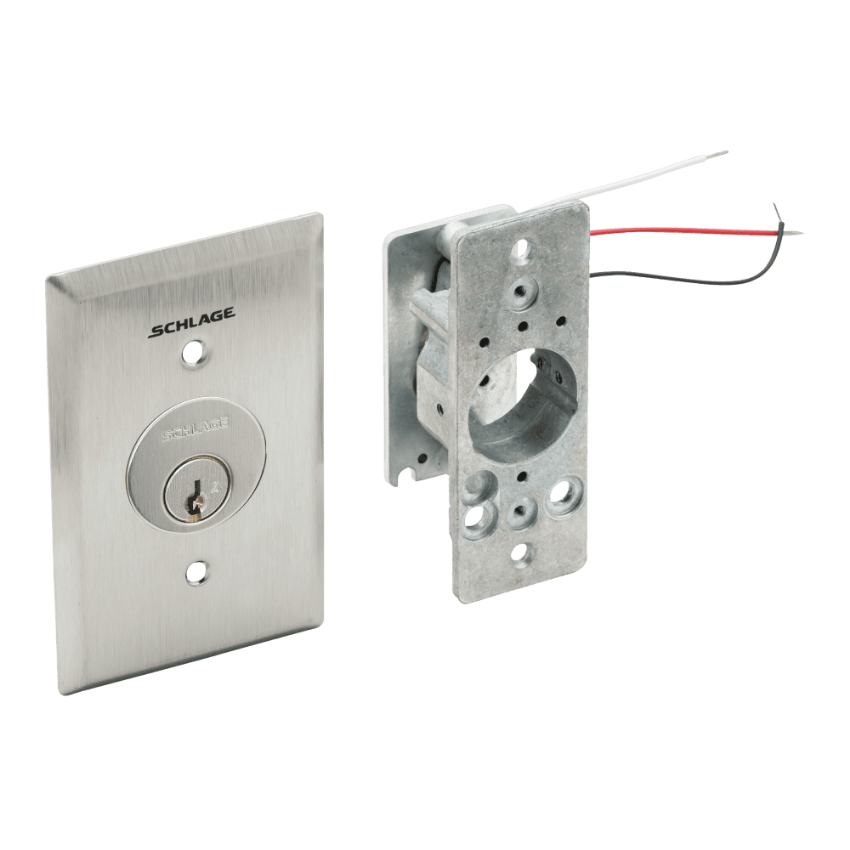

Cylinder *

LED Option

Switch Option

Cover Option

Block Ring Option

Schlage 653-14 is a DPDT maintained single-direction keyswitch in the Schlage 650 Series. It uses magnetic spring technology to provide maintained key-switch action and can be configured for clockwise operation. A blocking or spacer ring is required for applicable longer cylinders.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-14
Product Type: Keyswitch
Product Series: 650
Product Name: DPDT Maintained Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: DPDT maintained single-direction switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

1-1/8" cylinder
1-1/4" cylinder
1-3/8" cylinder
1-1/2" cylinder

$469.00

$328.30

Catalogs

Schlage Electronic Access Control Catalog

What is Schlage 653-14?

Schlage 653-14 is a DPDT maintained single-direction keyswitch.

What does the 653-14 fit?

It is part of the Schlage 650 Series keyswitch family and operates with compatible straight-cam mortise cylinders.

Is the 653-14 momentary or maintained?

The 653-14 is a maintained-action keyswitch.

What cylinders can the 653-14 use?

The 650 Series accepts 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders with a straight type cam, with blocking rings required for applicable cylinder sizes.

Is the Schlage 653-14 an OEM replacement part?

Yes. The 653-14 is a Schlage OEM keyswitch part for 650 Series applications.

Schlage 653-14 DPDT maintained keyswitch for 650 Series access control applications. Supports straight-cam mortise cylinders in multiple sizes.
