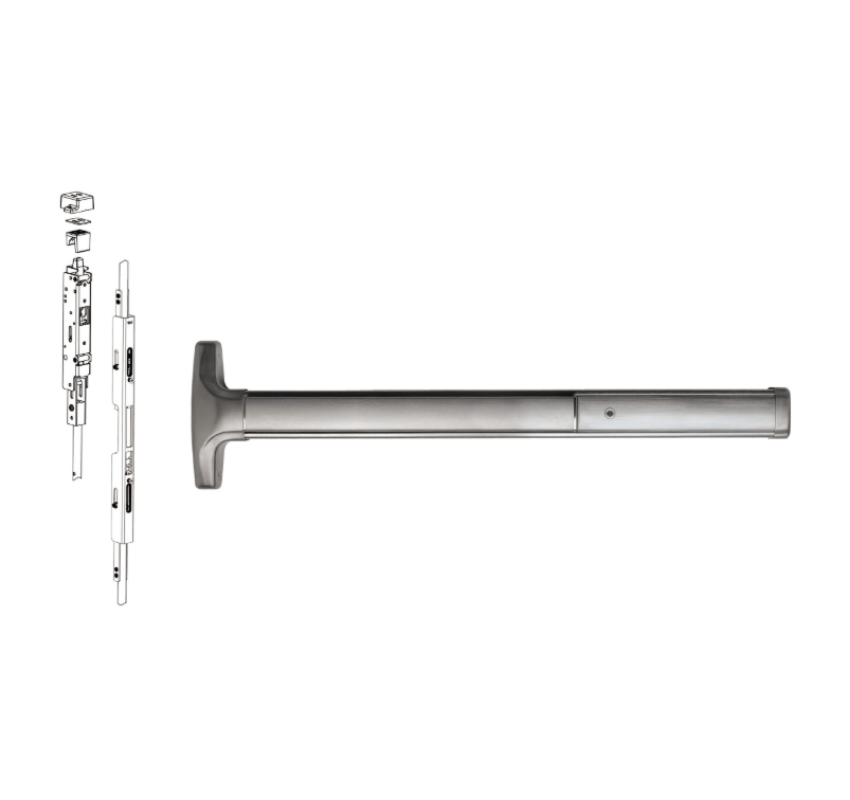

Detex Hardware Parts and Diagrams 62/63 Series CVR Exit Device

Picture of 62/63 Series CVR Exit Device

Detex Hardware Parts and Diagrams

SKU: 62/63

Detex Hardware Parts and Diagrams 62/63 Series CVR Exit Device

Available (3 - 4 Weeks)

The 62 and 63 Series concealed vertical rod exit devices are super-heavy-duty panic and fire exit solutions designed for narrow stile hollow metal doors without a mullion. Their patented mounting plate system ensures fast, accurate, and hassle-free installation.
*
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • 628 / US28 - Aluminum Anodized
    628 / US28 - Aluminum Anodized
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 611 / US9 - Polished Bronze
    611 / US9 - Polished Bronze
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available
  • 693 / SPBLK - Black Painted
    693 / SPBLK - Black Painted
    Not available
  • 695 / DKBRZ - Dark Bronze, Painted
    695 / DKBRZ - Dark Bronze, Painted
    Not available
*

Features

  • 6-position multi-step action in top latch keeps top and bottom bolts retracted until door closes and provides more consistent re-latching and security to door
  • Top strike fully adjustable both vertically and to accommodate a variety of varying weather strip thicknesses
  • Top strike both secures the door and re-engages the latchbolts
  • Patented deadlocking of top (62 and 63 Series) and bottom bolt (62 Series) assemblies
  • Durable steel bottom drop bolt (62 Series)
  • Handed - field reversible
  • Field sizeable
  • 1/8 turn dogging

Benefits

  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments
  • Minimal door prep saves time and money
  • Heavy duty angled end cap deflects damage away from device
  • Fast and easy installation saves time and money
  • Except for 03R, outside trims are easily changed or rekeyed without removing device from door

Mechanical Options

  • F - 3-Hour Fire Rated

Custom Length

  • 36 - Fits 36" Door Width (Std.)
  • 48 - Fits 48" Door Width

Dogging Option

  • HD - Hex Dogging (Std.)
  • CD - Cylinder Dogging
  • LD - Less Dogging

Finishes

  • 605 / US3 - Polished Brass
  • 606 / US4 - Brushed Brass
  • 611 / US9 - Polished Bronze
  • 612 / US10 - Brushed Bronze
  • 613 / US10B - Oil Rubbed Bronze
  • 628 / US28 - Aluminum Satin
  • 629 / US32 - Polished Stainless Steel
  • 630 / US32D - Brushed Stainless Steel
  • 693 / SPBLK - Black, Painted
  • 695 / SP 313 - Dark Bronze, Painted

Technical Information

  • Door Types - Hollow Metal
  • Door Stile - Fits minimum 4-1/2"
  • Door Thickness - Fits standard 1-3/4" - 2 1/4" (for other door thicknesses contact factory)
  • Fasteners - Machine and sheet metal screws supplied standard
  • Rail is heavy ribbed aluminum extrusion
