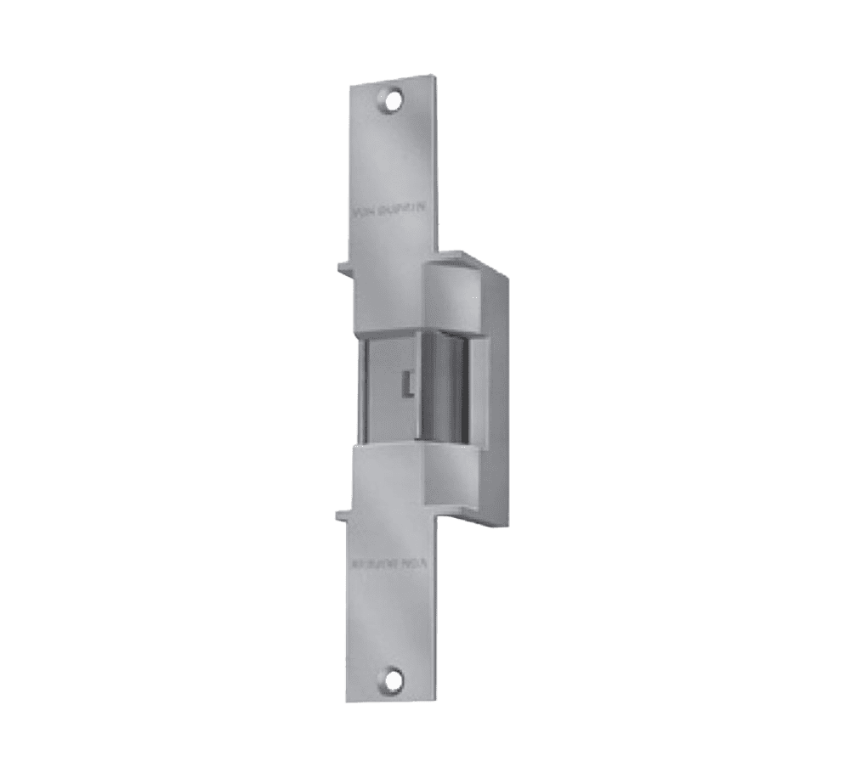

The Von Duprin 6222 is a 6200 Series open-back electric strike designed for double-door applications using mortise locks without deadbolts or cylindrical locks. It accepts a 3/4-inch latchbolt throw and is designed for 1-3/4-inch thick double doors. The 6222 is available for hollow metal and aluminum door/frame applications and is intended for installations where an open-back strike configuration is required.

We are your trusted source for genuine OEM replacement parts, commercial door hardware, electronic access control products, and life safety hardware.

Manufacturer: Von Duprin
Part Number: 6222
Product Name: Electric Strike for 6200 Series
Latchbolt Throw: 3/4"
Faceplate Length: 9" x 1-3/8"
Backbox Depth: 2"
Lockset Type: Mortise without deadbolt or cylindrical
Door Configuration: Double door
Door Thickness: 1-3/4"
Frame Types: Hollow metal or aluminum
Fire Rated: Yes
Retrofit: FA 310-2-3/4 OB
Standard Power: 24 VDC
Available Voltage Options: 12 VDC and 16 VDC
Power Failure Modes: Fail-secure (Standard) fail-safe (Optional)
Primary Function: Provides electric release for compatible mortise or cylindrical locksets
Application: Commercial access control for cylindrical locks or mortise locks without deadbolts
OEM Part: Yes
Warranty: 3-year limited (electronic), Limited lifetime (mechanical)
