Product Overview:

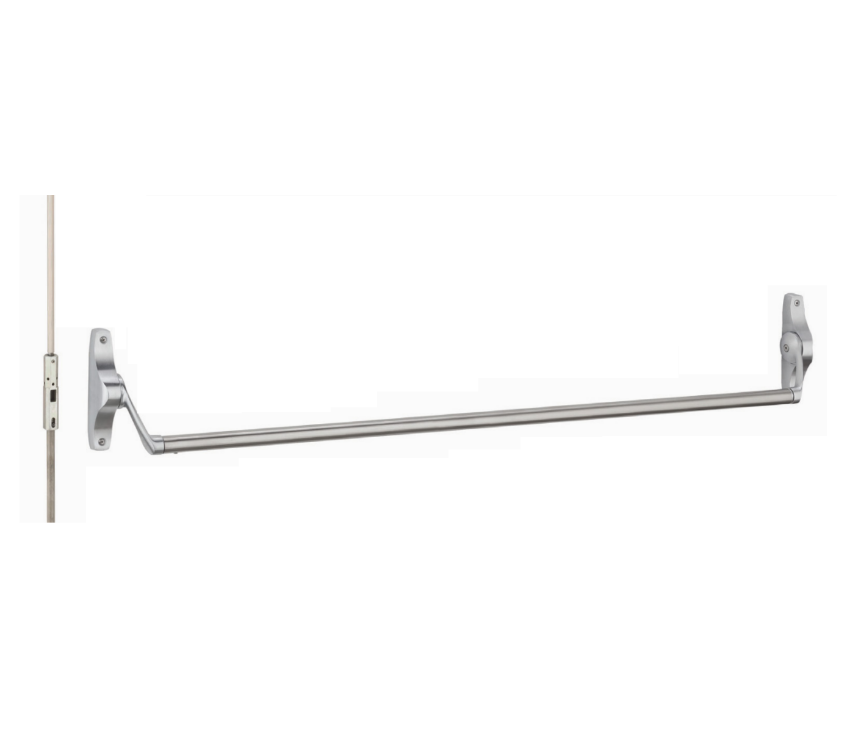

• 5547WDC-F Fire exit concealed vertical rod devices for use on 8' x 9'3" (2438 mm x 2819 mm) double wood doors swinging same direction or double egress.
• UL listed for up to 90 minute doors and fits stiles as narrow as 4 3/4" (121 mm).
• Standard device fits 6'8" to 8'0" door height.
• Double doors swinging same direction using a pair of 5547WDC-F devices must not have an overlapping astragal.

Specifications:

Device Functions:

• • Device ships EO/L/TL /NL

Crossbar Lengths:

• • 36" for 3' door
  • 48" for 4' door

Crossbar Height to finished floor

• • 36 13/16" (935 mm) at center

Lock Stile Case

• • 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Hinge Stile Case

• • 7 1/4" x 1 3/16" x 2 1/4" (184 mm x 30 mm x 57 mm)

Vertical rodshexagon

• • 3/8" (10 mm) adjustable top rod

Crossbar Tubing

• • 1" (25 mm)

Projection

• • Crossbar neutral – 3 3/4" (95 mm)
  • Crossbar depressed – 2 3/8" (60 mm)

Latch bolt

• • 5/8", throw

Finishes

• • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D), 643E, 693 (SPBLK)

Fasteners and sex bolts (SNB)

• • Device ships with screws and SNBs for 1 3/4" thick door, specify door thickness if greater than 1 3/4"

Wood frame strikes

• • 472U for 1 3/4" door
  • 473U for 2 1/4" door

Features and Options

Outside Trim

• • Wood door
  • 376WDC-L
  • 556NL
  • 550DT
  • 376WDC-T x 550DT

Electrified Options

• • RX - Crossbar monitor switch
  • E - Electric unlocking (BE trim only)

Mechanical Options

• • RCB - Reinforced crossbar
  • KN - Knurled crossbar (must be ordered as 4' device; cut bar as needed)

Strike

• • 378 - Top
  • 304L - Bottom (Unfinished)
