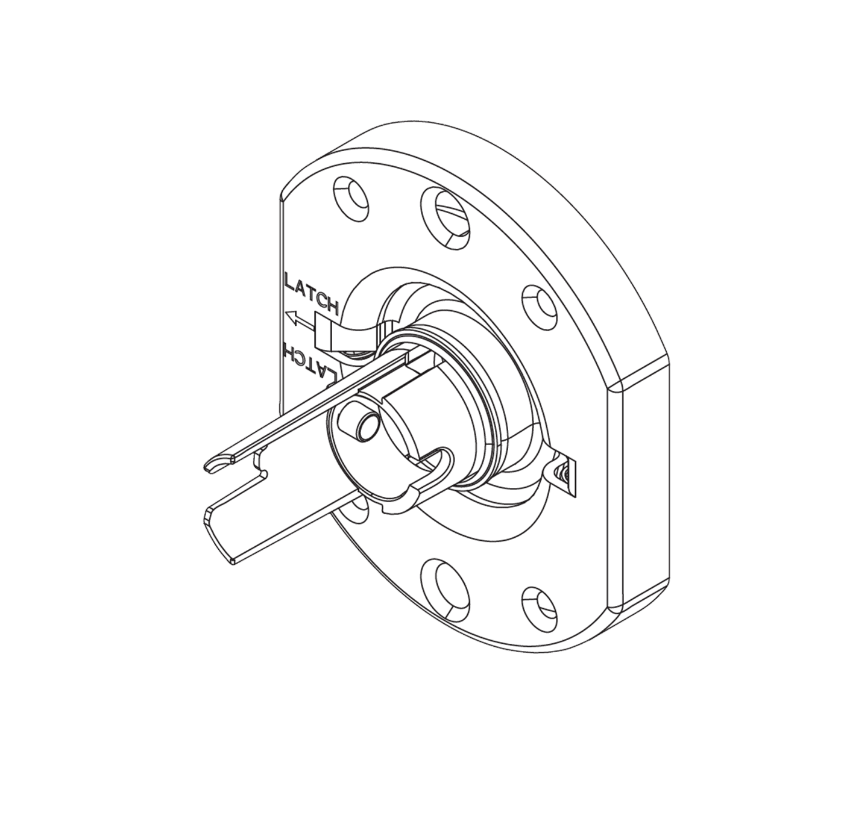

Schlage 47258546 Outside Spring Cage

Schlage 47258546 Outside Spring Cage

Schlage

SKU: 47258546

Schlage 47258546 Outside Spring Cage

In stock

The Schlage 47258546 Outside Spring Cage is an OEM replacement spring cage for compatible exterior electronic lock trim assemblies using Yale/Medeco 6-pin FSIC, Yale 7-pin FSIC, and Medeco 6-pin FSIC cylinder configurations.

Schlage 47258546 Outside Spring Cage is an OEM replacement component designed for compatible Schlage CO-Series and AD-Series electronic locks equipped with specific Yale and Medeco FSIC cylinder types. It replaces the exterior spring cage assembly and supports proper lever return and trim operation during servicing or repair.

We are your trusted source for commercial door hardware, security hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 47258546
Product Type: Exit Exterior Spring Cage Assembly
Product Series: CO Series / AD Series
Primary Function: Exterior spring cage replacement
Application: Exterior cylindrical, mortise, and 993 exit trim assemblies
OEM Part: Yes

Supported Cylinder Types

  • JD YA6 FSIC 6 Pin (Yale, Medeco Cylinders)
  • JD YA7 FSIC 7 Pin (Yale Cylinders)
  • JD MED FSIC 6 Pin (Medeco Cylinders)

Compatibility

  • CO Series
  • AD Series
$568.00
$511.20
minus minus

Catalogs

Frequently Asked Questions

What is Schlage 47258546?
It is an OEM outside spring cage for compatible Schlage AD-Series and CO-Series electronic lock exterior trim assemblies.
Which cylinder types use this spring cage?
It is used with JD YA6, JD YA7, and JD MED cylinder configurations.
Is it compatible with Schlage KIL or Schlage FSIC cylinders?
No. Those cylinder types use different outside spring cage part numbers.
What function does this part perform?
It supports the operation and return of the exterior lever assembly.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
