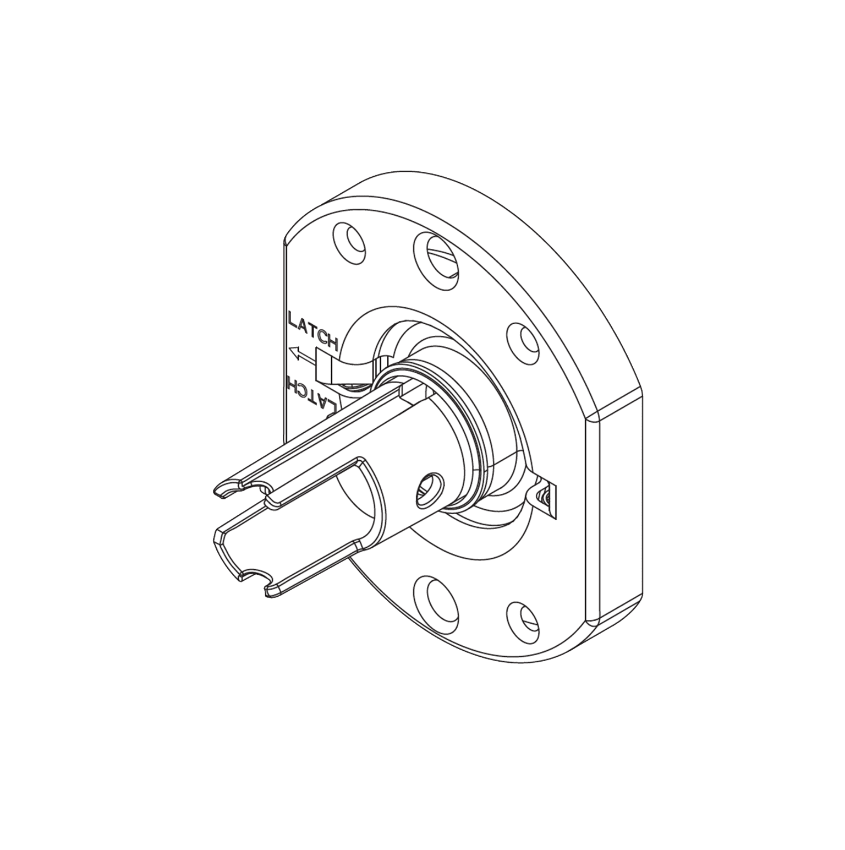

Schlage 47258545 Exit Exterior Spring Cage

Schlage 47258545 Exit Exterior Spring Cage

Schlage

SKU: 47258545

Schlage 47258545 Exit Exterior Spring Cage

In stock

The Schlage 47258545 Exit Exterior Spring Cage is a genuine OEM replacement spring cage with two mounting screws for compatible Schlage CO Series exit trim exterior assemblies with steel levers.

The Schlage 47258545 Exit Exterior Spring Cage is a genuine OEM replacement part for compatible Schlage AD Series and CO Series 993 exit trim exterior assemblies. The assembly includes two mounting screws and is used on exterior 993 Rim, Surface Vertical Rod (SVR), Mortise, and Dummy Trim configurations. It is intended for servicing and should only be installed on compatible exit trim assemblies.

We are your trusted source for commercial door hardware, security hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 47258545
Product Type: Exit Exterior Spring Cage Assembly
Product Series: CO Series / AD Series
Primary Function: Exterior spring cage for 993 exit trim assemblies
Application: Exterior 993 exit trim assemblies
Included: Two mounting screws
OEM Part: Yes

Supported Cylinder Types

  • PD/LD KIL 6 Pin (Schlage and Falcon Cylinders)
  • RD/JD FSIC 6 Pin (Schlage Cylinders)
  • GD/BD SFIC 6 and 7 Pin (Schlage, BEST, Corbin Russwin, Yale, Medeco Cylinders)
  • LD FA7 SFIC 7 Pin (Falcon Cylinders)

Compatibility

  • CO-100-993-R Keypad Only, Exterior
  • CO-100-993-S Keypad Only, Exterior
  • CO-100-993-M Keypad Only, Exterior
  • CO-200-993-R Keypad Only, Exterior
  • CO-200-993-S Keypad Only, Exterior
  • CO-200-993-M Keypad Only, Exterior
  • CO-200/250-993-R, All Models Except Keypad Only, Exterior
  • CO-200/250-993-S, All Models Except Keypad Only, Exterior
  • CO-200/250-993-M, All Models Except Keypad Only, Exterior
  • CO-993-DT, Exterior
  • AD-200/250-993-R, Exterior
  • AD-200/250-993-S, Exterior
  • AD-200/250-993-M, Exterior
  • AD-300-993-R, Exterior
  • AD-300-993-S, Exterior
  • AD-300-993-M, Exterior
  • AD-400-993-R, Exterior
  • AD-400-993-S, Exterior
  • AD-400-993-M, Exterior
$287.00
$258.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 47258545?
The Schlage 47258545 is a genuine OEM exit exterior spring cage assembly for compatible Schlage AD Series and CO Series 993 exit trim exterior assemblies.
Which lock series is this part compatible with?
It is compatible with documented AD Series and CO Series 993 exit trim exterior assemblies.
Does this part include mounting hardware?
Yes. The spring cage assembly includes two (2) mounting screws.
Which cylinder types is this spring cage designed to support?
It supports the documented PD/LD KIL, RD/JD FSIC, GD/BD SFIC, and LD FA7 cylinder configurations for compatible 993 exit trim assemblies.
Is the Schlage 47258545 a genuine OEM replacement part?
Yes. The Schlage 47258545 is a genuine OEM replacement part.
