Schlage 47258543 Exterior Spring Cage Assembly

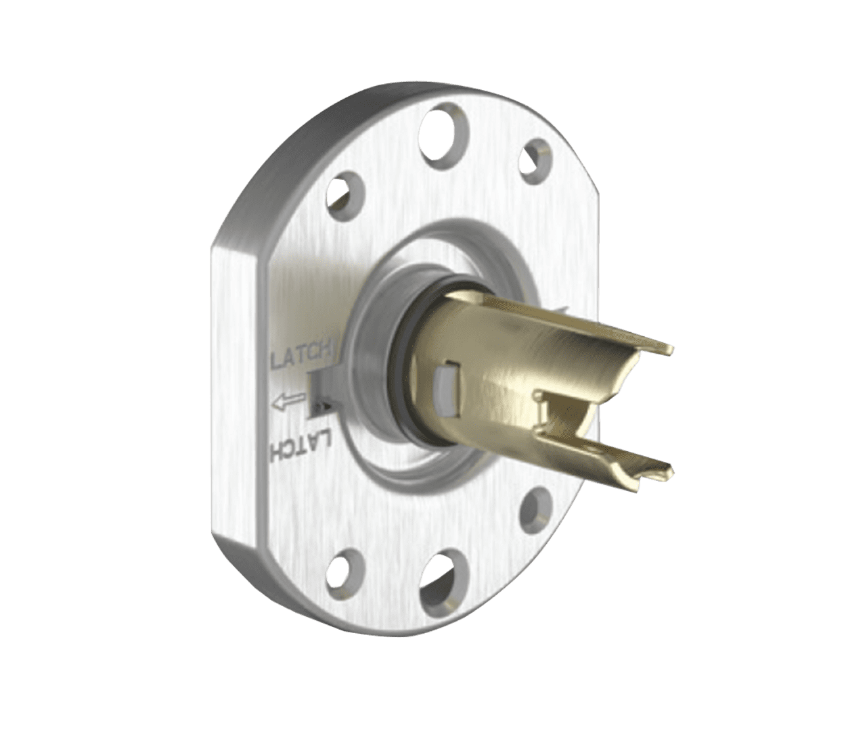

Schlage 47258543 exterior spring cage assembly

Schlage

SKU: 47258543

Schlage 47258543 Exterior Spring Cage Assembly

In stock

The Schlage 47258543 is an OEM exterior spring cage assembly with two mounting screws for AD and CO Series cylindrical and mortise electronic locks. It replaces the exterior spring cage on compatible lock configurations.

The Schlage 47258543 Exterior Spring Cage Assembly is a genuine OEM replacement part designed for compatible Schlage AD Series and CO Series cylindrical and mortise electronic locks. This assembly includes the exterior spring cage and two mounting screws used to support the exterior lever and cylinder mechanism during lock operation. It is intended for servicing compatible exterior trim assemblies and should be installed only on the compatible models.

We are your trusted source for commercial door hardware, security hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 47258543
Product Type: Exterior Spring Cage Assembly
Product Series: CO Series / AD Series
Primary Function: Supports the exterior lever/cylinder assembly
Application: Exterior cylindrical and mortise electronic lock trim
Included: Two mounting screws
OEM Part: Yes

Compatibility

  • CO-100-CY Keypad Only, Exterior
  • CO-100-MS Keypad Only, Exterior
  • CO-200-CY Keypad Only, Exterior
  • CO-200-MS Keypad Only, Exterior
  • CO-200-MD Keypad Only, Exterior
  • CO-200/250-CY, All Models Except Keypad Only, Exterior
  • CO-200/250-MS, All Models Except Keypad Only, Exterior
  • CO-200/250-MD, All Models Except Keypad Only, Exterior
  • AD-200/250-CY, Exterior
  • AD-200/250-MS, Exterior
  • AD-200/250-MD, Exterior
  • AD-300-CY, Exterior
  • AD-300-MS, Exterior
  • AD-300-MD, Exterior
  • AD-400-CY, Exterior
  • AD-400-MS, Exterior
  • AD-400-MD, Exterior
  • AD-993-DT Dummy Trim, Exterior
$118.00
$106.20
minus minus

Catalogs

Frequently Asked Questions

What is Schlage 47258543?
It is a genuine OEM exterior spring cage assembly for compatible Schlage AD and CO Series cylindrical and mortise electronic locks.
What is included with this part?
The assembly includes the exterior spring cage and two mounting screws.
Which lock types is it designed for?
It is designed for compatible cylindrical and mortise electronic lock exterior assemblies.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
Does this part fit exit trim models?
No. Exit trim models use a different exterior spring cage assembly (Part No. 47258545).
