Schlage 46928735 Exit Wiring Harness

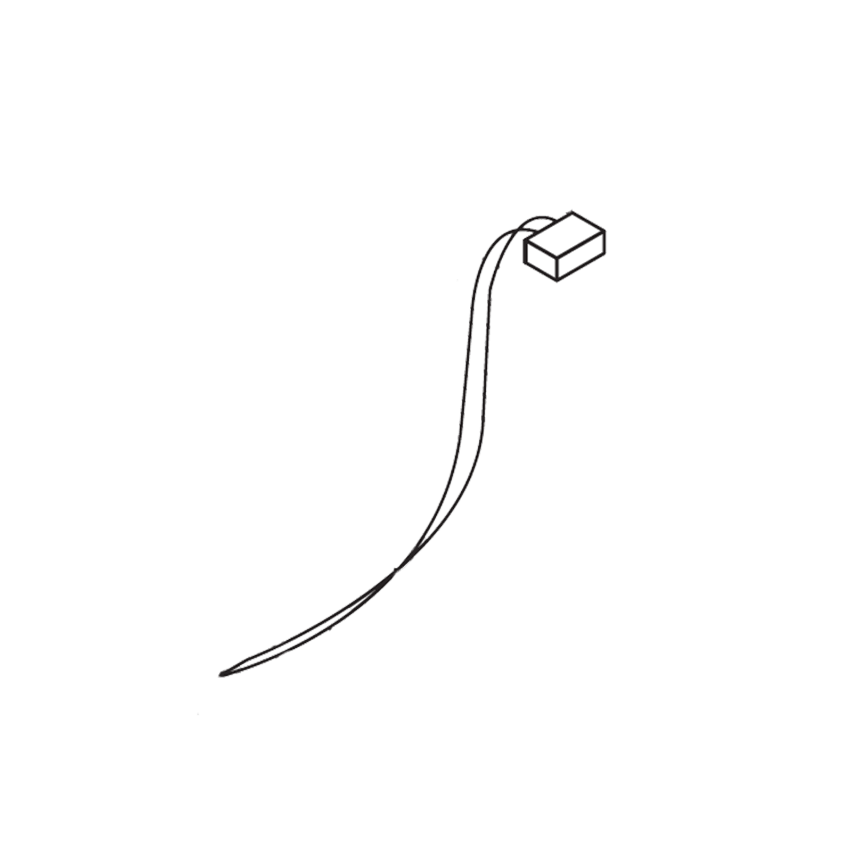

Schlage 46928735 exit wiring harness

Schlage

SKU: 46928735

Schlage 46928735 Exit Wiring Harness

In stock

Schlage 46928735 is an OEM wiring harness that connects the interior main board to the exterior board on compatible AD Series exit trim electronic locks.

The Schlage 46928735 Wiring Harness is a genuine OEM replacement component designed for Schlage AD Series electronic locks with an exit trim chassis. It provides the electrical connection between the interior main board and the exterior board, allowing communication and power transfer between the lock assemblies. This wiring harness is for AD Series exit configurations and is intended for service replacement of the original factory-installed harness.

We are your trusted source for commercial door hardware, security hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 46928735
Product Type: Exit Wiring Harness
Lock Configuration: Exit
Primary Function: Connects the interior main board to the exterior board
Application: Commercial electronic access control
OEM Part: Yes

Compatibility

  • AD-200/250-993 Series
  • AD-300-993 Series
  • AD-400-993 Series
$87.00
$78.30
minus minus

Catalogs

Frequently Asked Questions

What is Schlage 46928735?
It is an OEM wiring harness for AD Series electronic locks with an exit chassis.
What does this wiring harness connect?
It connects the interior main board to the exterior board.
What is the primary function of this wiring harness?
It transfers power and communication between the interior and exterior electronic assemblies.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.

OEM Schlage 46928735 Exit Wiring Harness connecting the interior main board to the exterior board for AD Series exit chassis electronic locks.
