Detex Hardware Parts and Diagrams 30 Series Mortise Exit Device

Picture of 30 Series Mortise Exit Device

Detex Hardware Parts and Diagrams

SKU: 30

Detex Hardware Parts and Diagrams 30 Series Mortise Exit Device

Available (3 - 4 Weeks)

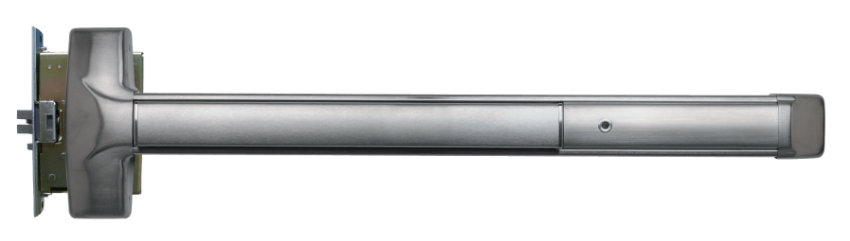

The 30 Series mortise lock exit device is a super-heavy-duty panic and fire exit solution designed for all types of single and double doors. Its patented mounting plate and strike locator system ensures fast, accurate, and hassle-free installation.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • 628 / US28 - Aluminum Anodized
    628 / US28 - Aluminum Anodized
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 611 / US9 - Polished Bronze
    611 / US9 - Polished Bronze
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available
  • 693 / SPBLK - Black Painted
    693 / SPBLK - Black Painted
    Not available
  • 695 / DKBRZ - Dark Bronze, Painted
    695 / DKBRZ - Dark Bronze, Painted
    Not available
*

Features

  • 3/4" Projection Stainless Steel latch bolt
  •  Anti-friction, deadlocking, latch bolt
  •  All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
  • 1/8 turn dogging
  • Non-handed, field sizeable

Benefits

  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments
  • Heavy duty angled end cap deflects damage away from device
  • Easy retrofit to other manufacturers
  • Minimal door prep saves time and money
  • Outside trims are easily changed or re-keyed without removing device from door
  • Fast and easy installation saves time and money
  • Patented mounting plate and strike locator replaces paper templates

Mechanical Options

  • F - 3-Hour Fire Rated

Custom Length

  • 36 - Fits 36" Door Width (Std.)
  • 48 - Fits 48" Door Width

Dogging Option

  • HD - Hex Dogging (Std.)
  • CD - Cylinder Dogging
  • LD - Less Dogging

Finishes

  • 605 / US3 - Polished Brass
  • 606 / US4 - Brushed Brass
  • 611 / US9 - Polished Bronze
  • 612 / US10 - Brushed Bronze
  • 613 / US10B - Oil Rubbed Bronze
  • 628 / US28 - Aluminum Satin
  • 629 / US32 - Polished Stainless Steel
  • 630 / US32D - Brushed Stainless Steel
  • 693 / SPBLK - Black, Painted
  • 695 / SP 313 - Dark Bronze, Painted

Technical Information

  • Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
  • Door Thickness - Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory)
  • Minimum Stile - 4-3/4”
  • Machine and Self-Drilling Screws (Std.)
  • Optional Sex Nuts for wood or composite doors
  • Security Torx screws available



$3,035.00
$1,942.40
minus minus
