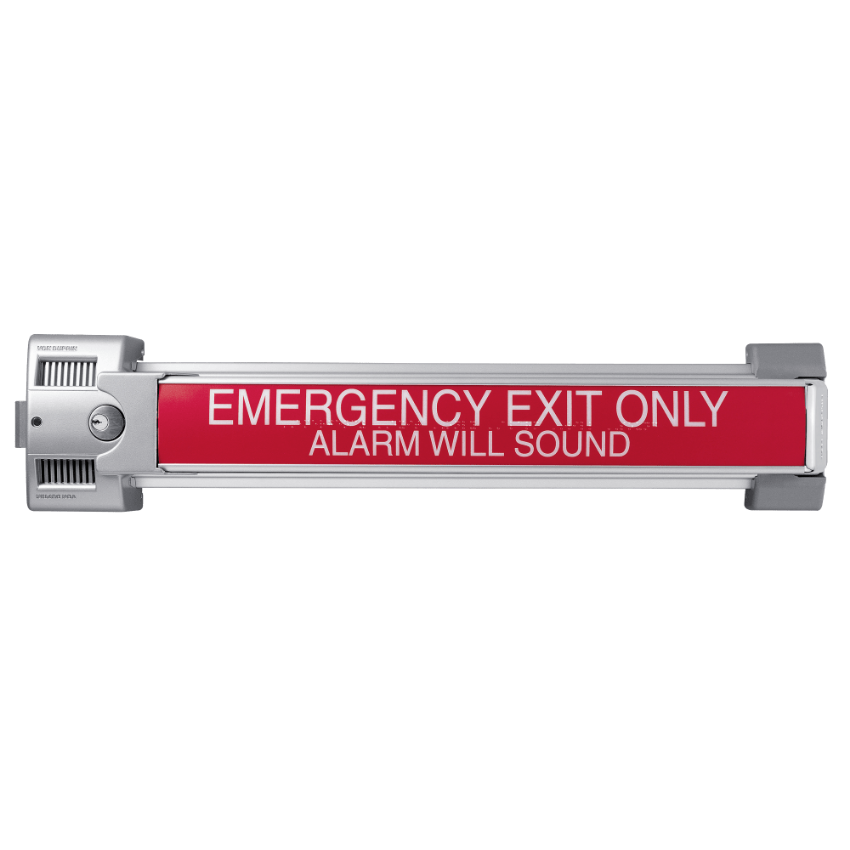

Product Overview

• GUARD-X provides secure, alarmed code-compliant protection for secondary exits.
• GUARD-X exit alarm lock readily identifies the door on which it is mounted as an emergency exit and secures the opening against unauthorized use.
• It is ideal for deterring theft in restaurants and retail establishment such as: discount stores, grocery stores, drug stores, clothing stores and sporting goods stores.

Features and Benefits

• UL listed for panic exit hardware (UL305)
•  Tested in accordance to ANSI A156.3 Grade 1 panic hardware (250,000 cycles)
•  Quick installation with an easy-to-use adhesive back template
•  Non-handed design allows installer to mount for either hand by just removing and reversing the “Emergency Exit - Alarm Will Sound” sign built into the device
• Three finishes available: SP28, 313, 315
• Heavy duty construction with stainless steel deadbolt with cast aluminum latch case
• Only authorized person with a key can re-latch or reset the alarm after unauthorized exit
• 100-decibel alarm
• Armed and disarmed by key
• Alarm is powered by standard 9V battery or hardwired using optional PT790 power supply

Specifications:

Touchbar height to finished floor

• • 40" (1016mm) at center

Device width range

• • 36" to 48" (914mm to 1219mm)

Touchbar projection

• • Neutral - 4 1/8" (103mm)
  • Depressed - 2 3/4" (70mm)

Latch case housing

• • 7" X 4 1/16" X 4 1/8" (179mm X 103mm X 105mm)

Device Length

• • 32 1/2" (826mm)

Minimum stile requirement

• • Single door - 5 7/8"
  • Double door - 6 1/4"

Finishes

• • 628 (US28), 710 (313), 711 (315)
