Schlage 23599384 Door Thickness Kit

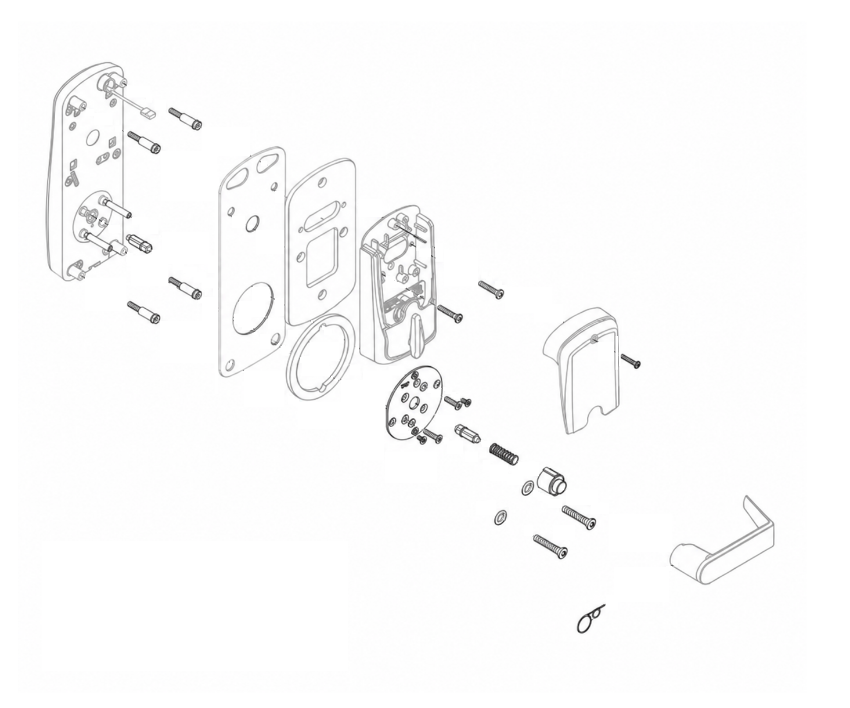

Schlage 23599384 door thickness kit

Schlage

SKU: 23599384

Schlage 23599384 Door Thickness Kit

In stock

The Schlage 23599384 Door Thickness Kit is an OEM replacement parts kit for installing Schlage CO Series MS and MD electronic locks on supported door thicknesses from 1-3/8" through 2-3/4".
*

Schlage 23599384 Door Thickness Kit is an OEM replacement parts kit for Schlage CO Series mortise and mortise deadbolt electronic locks. Schlage lists 23599384 kit variants for doors from 1-3/8" through 2-3/4" thick, with the exact suffix selected according to door thickness. The kit is compatible with CO Series MS and MD lock types and can also be used as replacement parts.

We are your trusted source for commercial door hardware, security hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 23599384
Product Type: Door Thickness Kit
Product Series: CO Series
Primary Function: Provides door-thickness-specific mounting hardware and components for compatible CO-Series electronic locks
Application: Commercial electronic lock installation and service
OEM Part: Yes

Compatibility

  • CO-100 Series
  • CO-200 Series

Includes

  • 2x Baseplate screws
  • 2x Reader screws
  • 2x Spindles
  • 1x Spring
  • 1x Pin wrench
  • 2x Fire plate screw
  • 4x Standoffs
  • 3x Shim Plates
  • 2x Mortise Standoffs
  • 2x UL Plate to Outside Baseplate, MS/MD
  • 2x Bottom Oval Head Mounting Screws
  • 2x Finishing Washer
$84.00
$75.60
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 23599384 Door Thickness Kit used for?
It provides the door-thickness-specific mounting hardware, spindle components, shim plates, standoffs, and related parts needed to install compatible CO Series locks or replace existing components.
What locks are compatible with the Schlage 23599384 Door Thickness Kit?
The kit is compatible with Schlage CO-100 and CO-200 electronic locks using MS mortise and MD mortise deadbolt lock types.
What door thicknesses are supported by Schlage 23599384 kits?
Schlage lists 23599384 kit variants for door thicknesses from 1-3/8" through 2-3/4", with a specific part number suffix assigned to each supported thickness.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
