Product Overview:

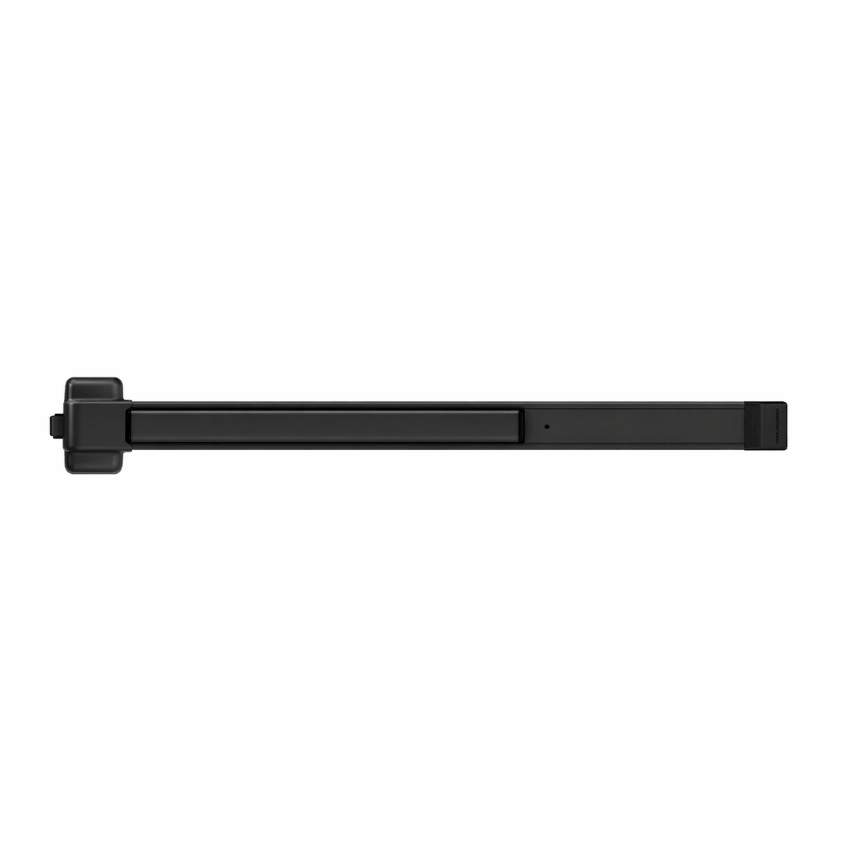

• 22 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are Grade 1 rated to ANSI A156.3, 2014.
• Devices cover stock hollow metal doors with 161 door prep cutouts.
• Fits door stiles as narrow as 3-13⁄16" (97 mm).

Click Here for 22EO-F Fire Rated Exit Device

Specifications:

Device Functions:

• • Ships ready for all functions, EO, DT, NL, TP, K, L

Device Lengths:

• • 36" (914 mm)
  • 48" (1219 mm)

Device centerline from finished floor

• • 39-13/16" (1011mm)
  • 39-11/16" (1008mm) with mullion

Center case

• • 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)

Mechanism case

• • 2" (51 mm) x 2-3/8" (60 mm)

Projection

• • Push bar neutral - 3-11/16" (94 mm)
  • Push bar depressed - 2-7/8" (73 mm)

Latch bolt

• • Deadlocking, 3/4" (19 mm) throw

Finishes

• • 526, 622, 689, 695

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) wood and metal doors (Optional SNB available for device)

Features and Options

Electrified Options

• • ALK - Alarm exit kit
  • CON - Allegion Connect
  • LX - Latch bolt monitor switch
  • LX-LC - Latch bolt monitoring, low current
  • LX-RX - Latch bolt monitoring, request to exit
  • LX-RX-LC - Latch bolt monitoring, request to exit low current
  • QEL - Quiet electric latch retraction
  • RX - Request to exit

  • RX2 - Double request to exit
  • WPRX - Waterproof Request to Exit

Mechanical Options

• • AX - Accessible device, LBR only
  • GBK - Glass bead kit

Dogging Features

• • Hex key dogging standard
  • Comes standard on 22 rim exit devices

Dogging Option

• • HD - Hex Dogging (Standard)
  • LD - Less Dogging

Strike

• • 299 Strike - Ships standard; optional strikes available (Top, Dull Black)
