Product Overview:

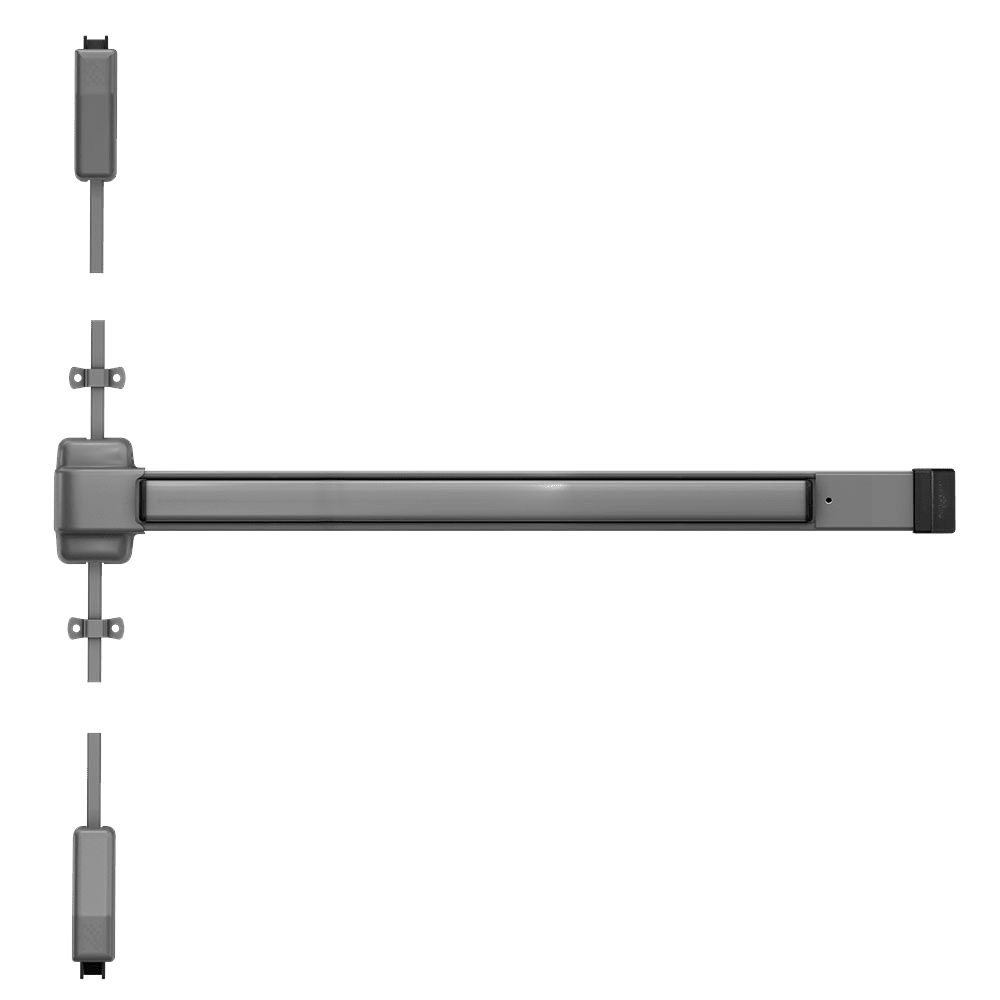

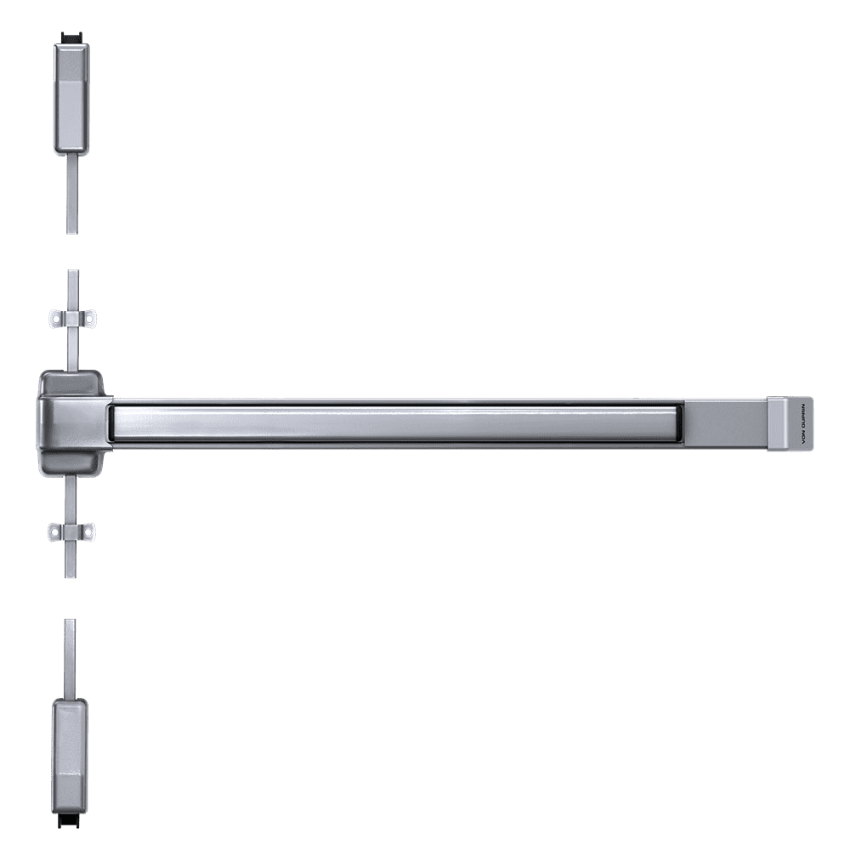

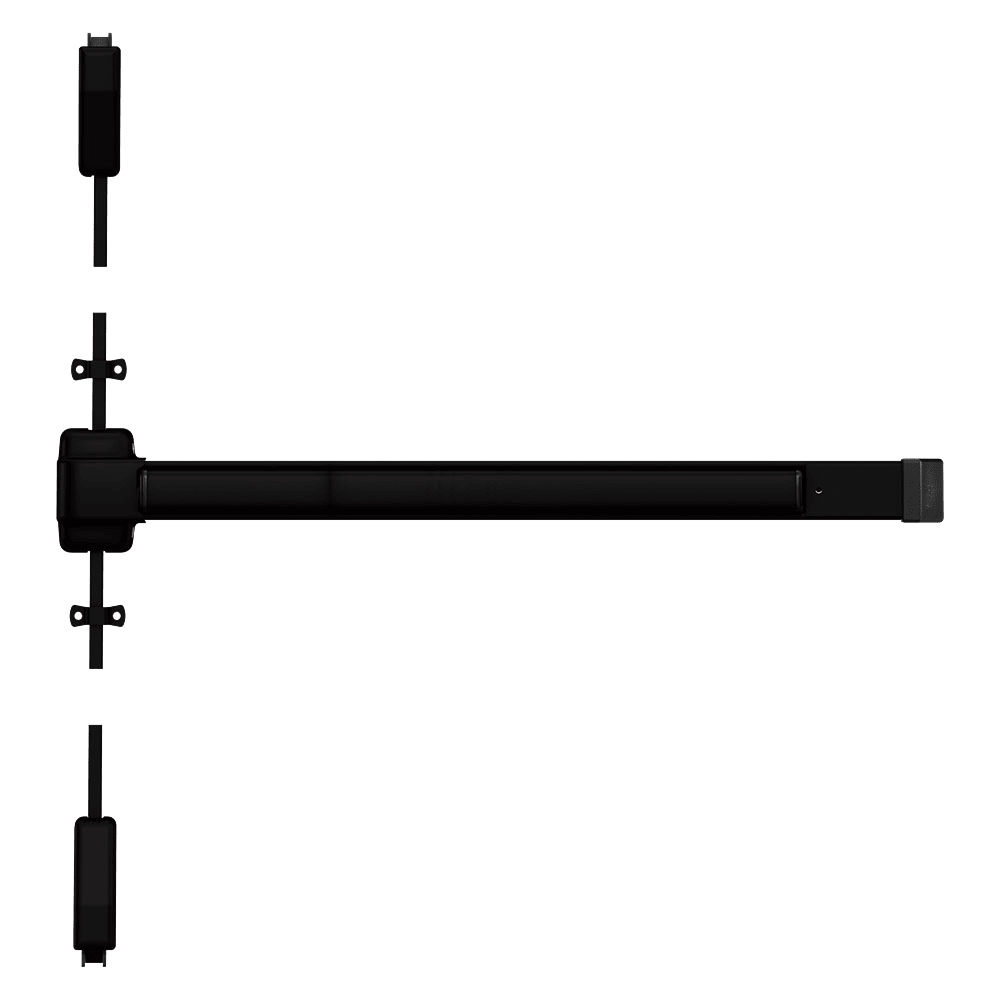

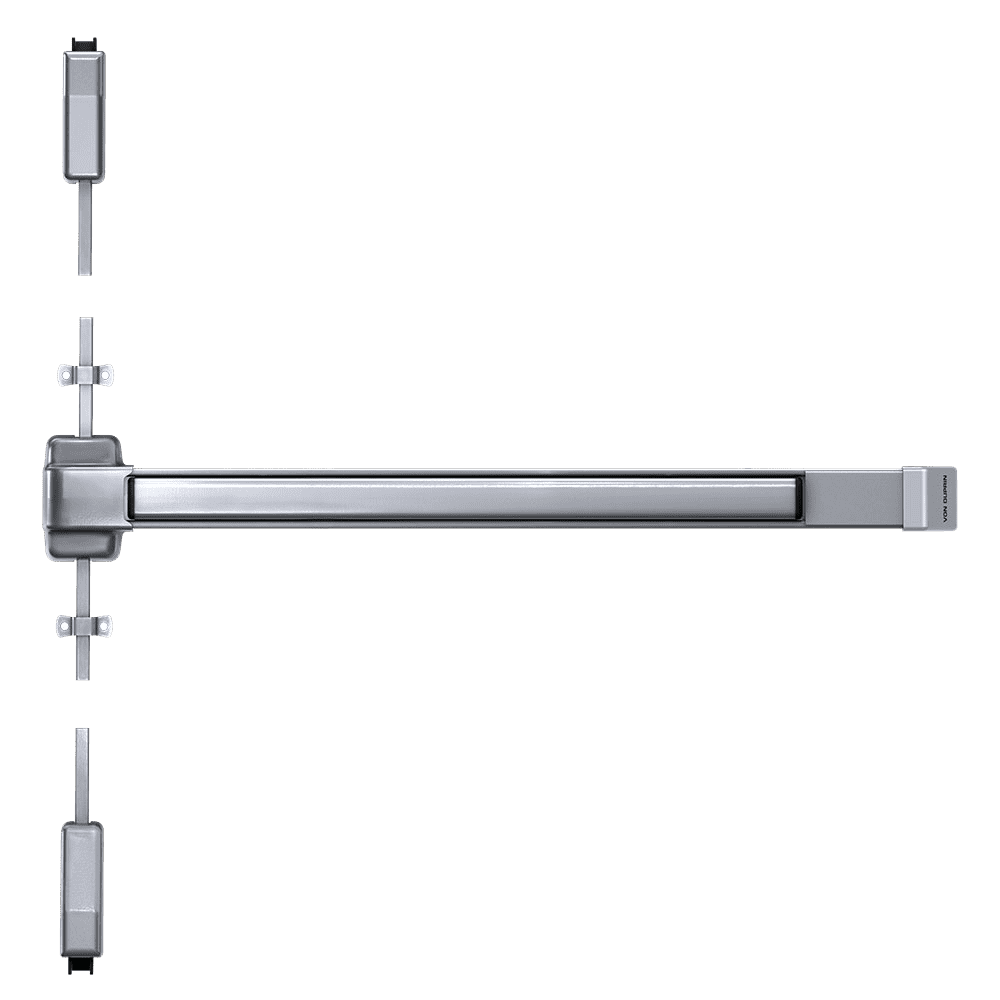

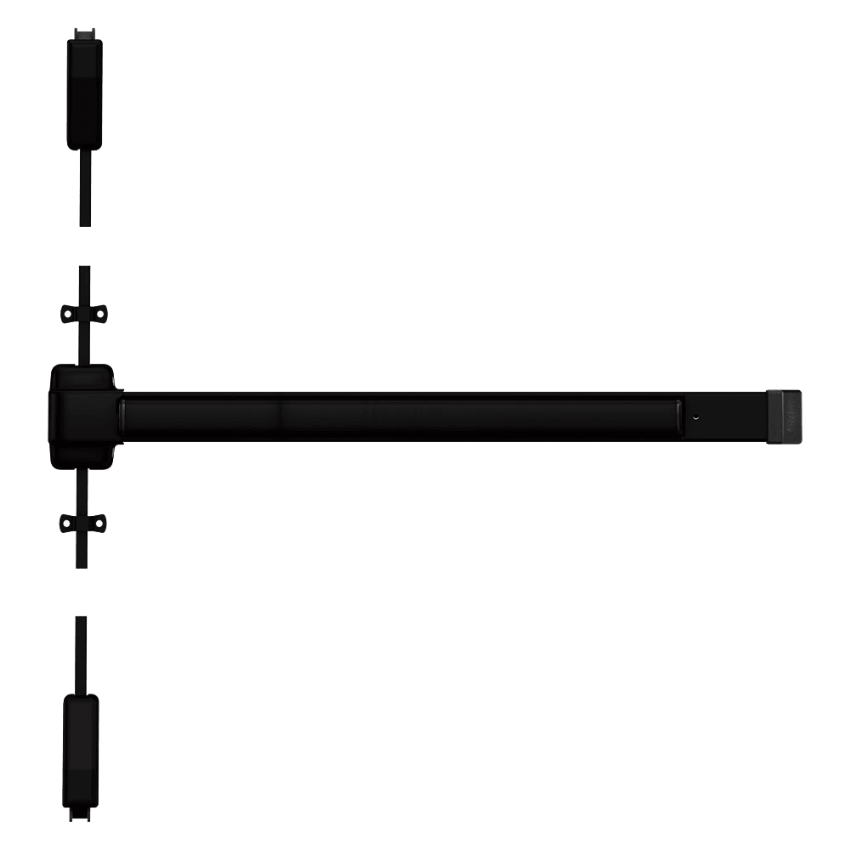

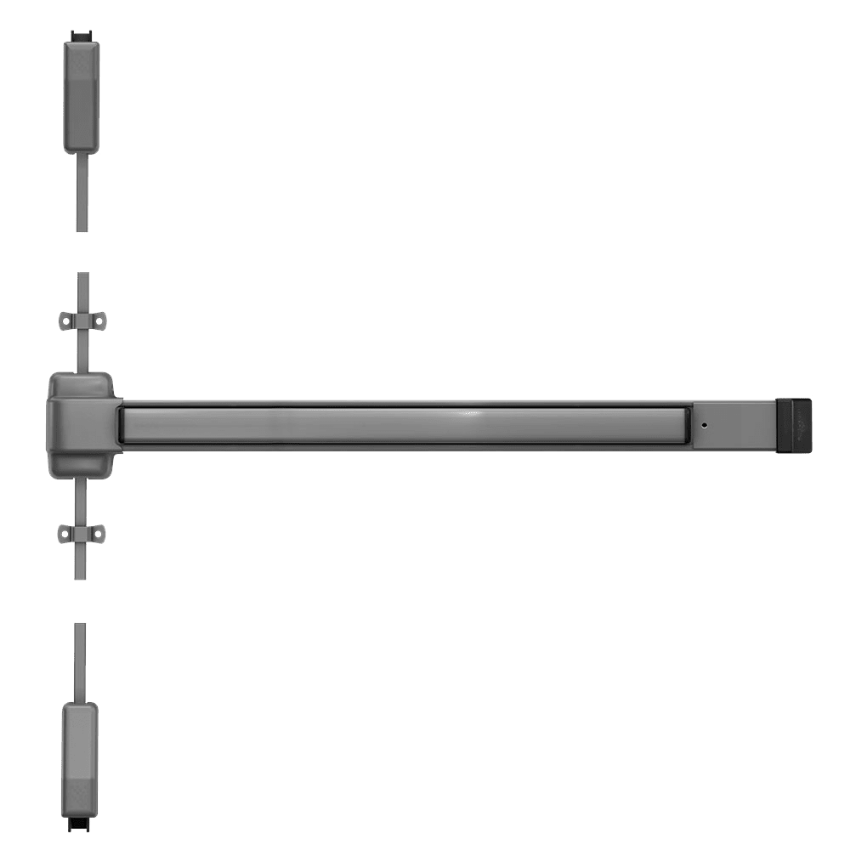

• 2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1.
• Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3-5/8" (92 mm).

Click Here for 22EO-F Fire Rated Exit Device

Specifications:

Device Functions:

• • Ships ready for all functions, EO, DT, NL, TP, K, L

Device Lengths:

• • 36" (914 mm)
  • 48" (1219 mm)

Door height

• • 7' (2134 mm) standard door height

Device centerline from finished floor

• • 39-13⁄16" (1011 mm)

Center case

• • 4 5⁄32" (105 mm) x 3 3⁄16" (81 mm) x 2 3⁄8" (60 mm)

Mechanism case

• • 2" (51 mm) x 2-3/8" (60 mm)

Projection

• • Push bar neutral - 3-11/16" (94 mm)
  • Push bar depressed - 2-7/8" (73 mm)

Latch bolt

• • Deadlocking antifriction top and bottom bolt, 5⁄8" (16 mm) throw

Finishes

• • 526, 622, 689, 695

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) wood and metal doors (Optional SNB available for device)

Features and Options

Electrified Options

• • ALK - Alarm exit kit
  • CON - Allegion Connect
  • LX - Latch bolt monitor switch
  • LX-LC - Latch bolt monitoring, low current
  • LX-RX - Latch bolt monitoring, request to exit
  • LX-RX-LC - Latch bolt monitoring, request to exit low current
  • QEL - Quiet electric latch retraction
  • RX - Request to exit

  • RX2 - Double request to exit
  • WPRX - Waterproof Request to Exit

Mechanical Options

• • GBK - Glass bead kit
  • HW - Hurricane device — Wind-Only
  • LBR - Less bottom rod
  • AX - Accessible device, LBR only

Dogging Features

• • Hex key dogging standard
  • Comes standard on 2227 devices

Dogging Option

• • HD - Hex dogging (Standard)
  • LD - Less dogging

Strike

• • 299 Strike - Top (Dull Black)
  • 248L4 & 304L – Bottom (Unfinished)
