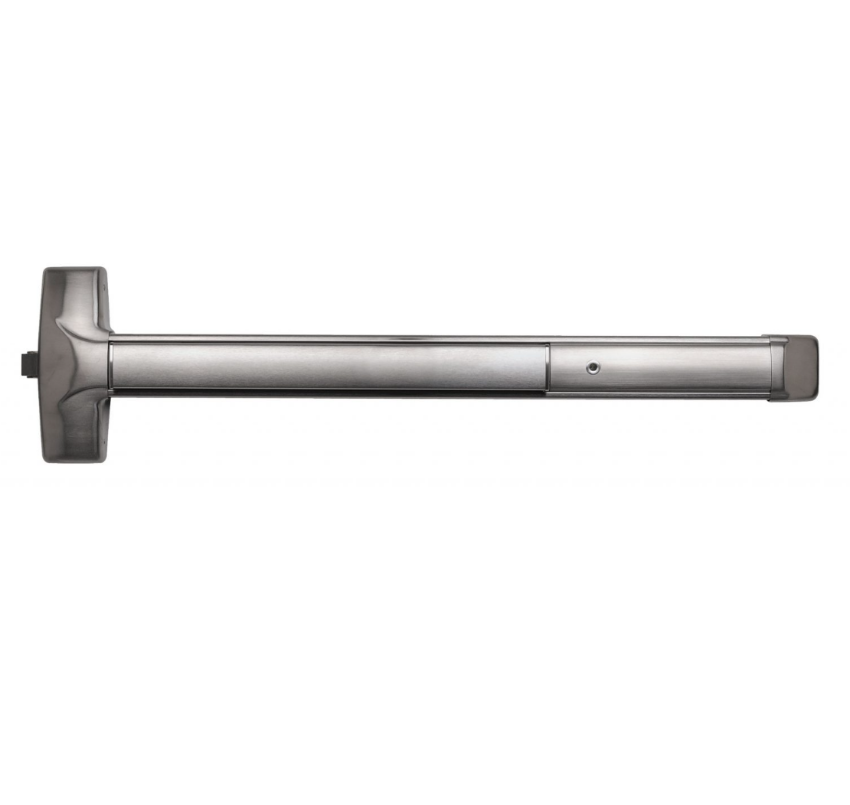

Features

• Stainless steel deadlocking top latch
• Hardened steel bottom drop bolt with dust proof strike
• Field sizeable
• ADA ramped bottom bolt cover
• 1/8 turn hex or cylinder dogging
• Handed - field reversible
• All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process


Benefits

• Tough and durable design for years of trouble-free service in high-use, high-abuse environments
•  Patented mounting plate and strike locator system replaces paper templates
• Minimal door prep saves time and money
• Outside trims are easily changed or rekeyed without removing device from door
• Security enhanced by stainless steel, rod covers, standard
•  Heavy duty angled end cap deflects damage away from device
• Fast and easy installation saves time and money

Mechanical Options

• F - 3-Hour Fire Rated
• H - Hurricane Rated
• FH - Fire-Rated/Hurricane Rated
• W - Weatherized (mechanical only)

Custom Length

• 36 - Fits 36" Door Width (Std.)
• 48 - Fits 48" Door Width

Dogging Option

• HD - Hex Dogging (Std.)
• CD - Cylinder Dogging
• LD - Less Dogging

Finishes

• 605 / US3 - Polished Brass
• 606 / US4 - Brushed Brass
• 611 / US9 - Polished Bronze
• 612 / US10 - Brushed Bronze
• 613 / US10B - Oil Rubbed Bronze
• 628 / US28 - Aluminum Satin
• 629 / US32 - Polished Stainless Steel
• 630 / US32D - Brushed Stainless Steel
• 693 / SPBLK - Black, Painted
• 695 / SP 313 - Dark Bronze, Painted

Technical Information

•  Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory) Technical Information
• Minimum Stile - 4-1/2" with standard 97 strike
• Fasteners - Machine and Self-
