Detex 12-800 Logic Controller

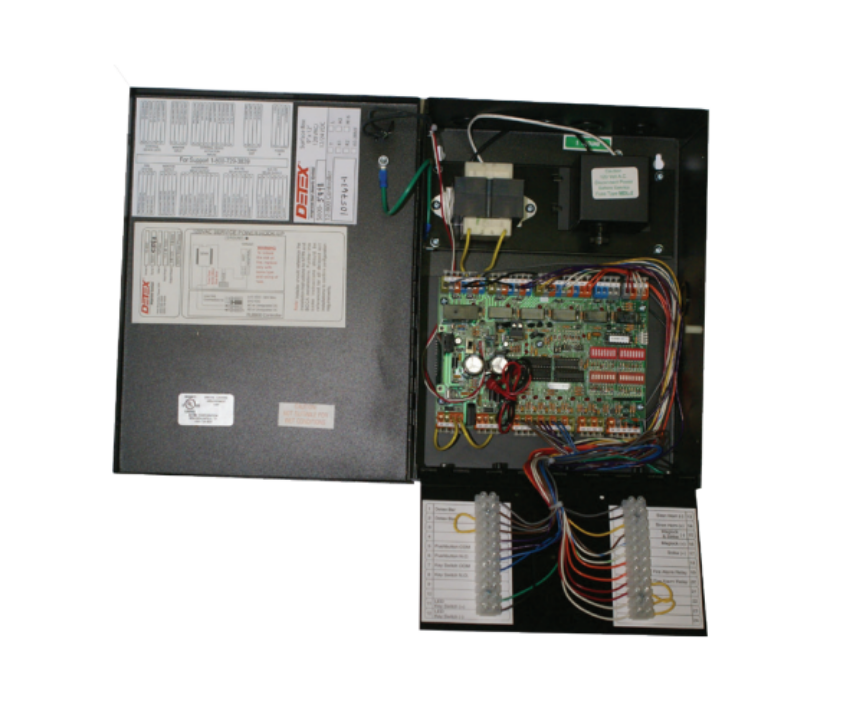

Detex 12-800 logic controller for delayed egress and access control applications

Detex

SKU: 12-800

Detex 12-800 Logic Controller

The Detex 12-800 is a logic controller and power supply designed for delayed egress, access control, and interlock applications. It provides regulated DC power and control functionality for up to two doors.

Product Overview

The Detex 12-800 Logic Controller is a logic controller and power supply designed to process inputs from switches, access control systems, and other dry-contact devices while controlling electrified door hardware in delayed egress, standard egress, and interlock applications. Manufactured by Detex the 12-800 provides regulated DC power, centralized wiring connections, and control functionality for up to two doors. It is designed for use in commercial security and access control installations where delayed egress operation, door monitoring, and system integration are required. The 12-800 is compatible with applications utilizing the ADVANTEX Series and Value Series product families.

We are a trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

  • Integrated logic controller and power supply in a single enclosure
  • Controls up to two doors
  • Supports delayed egress, standard egress, and interlock applications
  • Accepts inputs from switches, access control systems, and other dry-contact devices
  • Provides regulated 12VDC or 24VDC power output
  • Includes centralized terminal connections for field wiring
  • Features configurable wet or dry relay contacts
  • Includes a battery backup charging circuit

Benefits

  • Simplifies installation by combining control and power functions in one unit
  • Supports multiple door control configurations from a single controller
  • Provides flexible integration with access control and door monitoring systems
  • Reduces wiring complexity through centralized connection points
  • Helps maintain system operation when paired with a compatible backup battery
  • Supports a variety of commercial egress and security applications
  • Allows installers to configure outputs for different system requirements
  • Streamlines management of delayed egress and interlock door systems

Compatible Models

  • ADVANTEX Series
  • Value Series

Includes:

  • Back box
  • Upper back pan and flip-up insert
  • 24-point terminal strip
  • Transformer
  • Series 800 electronics
$2,656.00
$2,124.80
minus minus

Catalogs

Frequently Asked Questions

What is the Detex 12-800 used for?
The 12-800 is used to control electrified door hardware in delayed egress, standard egress, and interlock applications.
How many doors can the 12-800 control?
One 12-800 controller can manage up to two doors depending on the application.
What input devices can connect to the 12-800?
The controller accepts inputs from switches, access control systems, and other dry contact devices.
Does the 12-800 provide power for electrified hardware?
Yes. The controller provides at least 2A of regulated DC power at the door.
Does the 12-800 include battery backup capability?
Yes. A battery backup charging circuit is standard, but batteries are sold separately.
