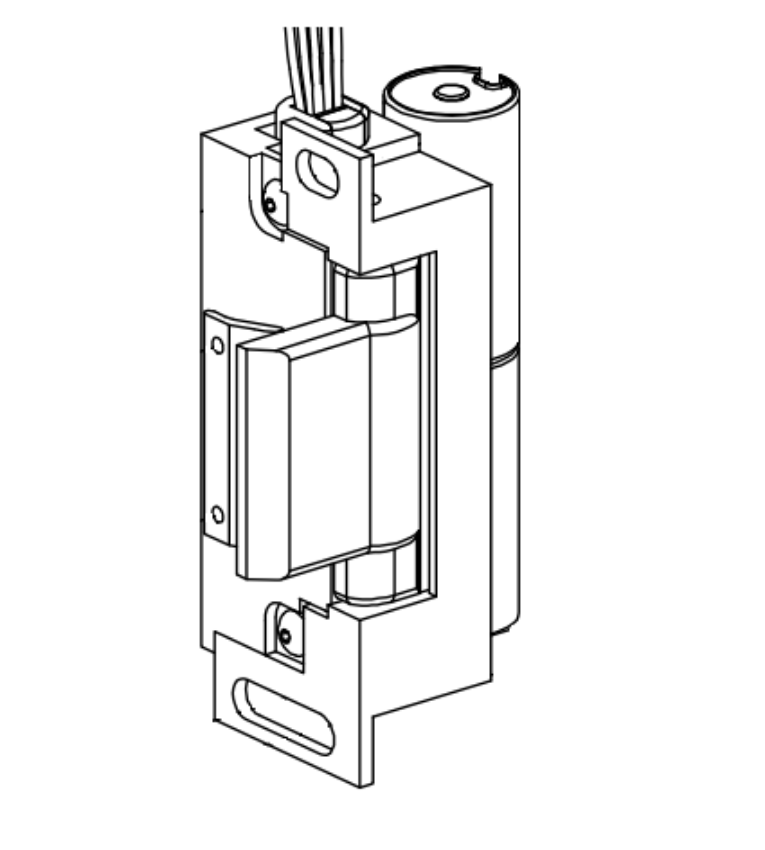

Von Duprin 112774, 6111, 6113, 6213 24VDC FS DS-LC Box Assembly

Keep your Von Duprin electric strike working the way it should with this replacement box assembly. Part number 112774 is used with Von Duprin 6111, 6113, and 6213 series electric strikes.

About this item

The Von Duprin 112774 box assembly is designed for fail-secure operation with DS-LC monitoring and is made for use with Von Duprin 6111, 6113, and 6213 electric strikes.

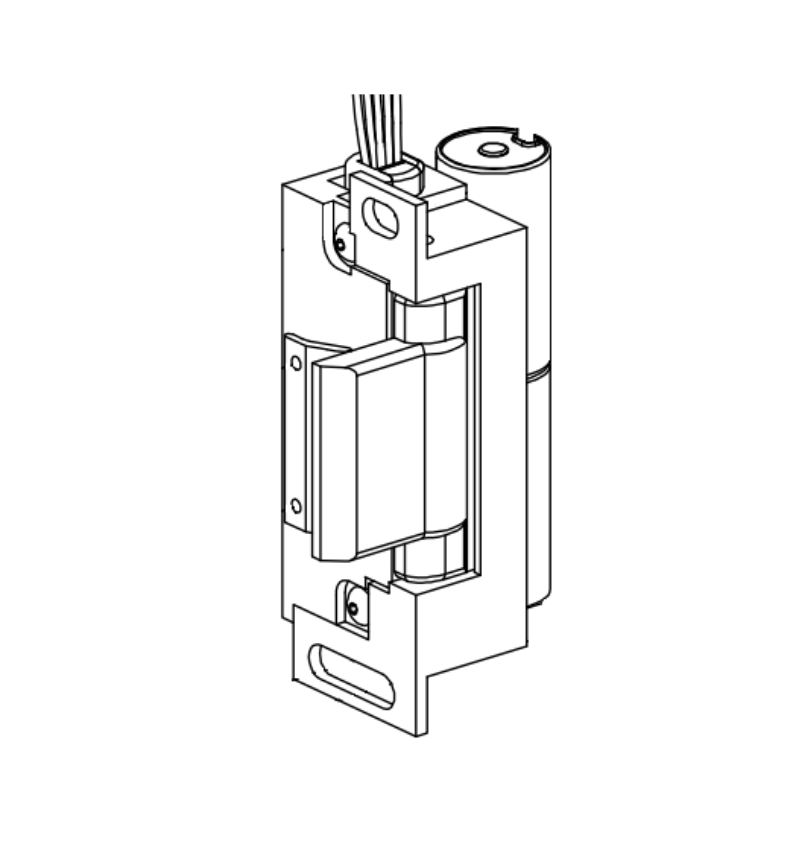

Von Duprin 112774, 6111, 6113, 6213 – 24VDC, FS, DS-LC Box Assembly
Keep your Von Duprin electric strike working properly with this replacement box assembly. Part number 112774 is used with Von Duprin 6111, 6113, and 6213 series electric strikes.

Function:

• This box assembly provides the electrical and monitoring components that let the strike operate in fail secure mode and report latch bolt and lock status through DS-LC monitoring.

Applications:

• It is used when servicing compatible Von Duprin electric strikes that release a locked door by moving the strike lip, often controlled by an access control system or push button.

Best for:

• Replacing a worn or damaged box assembly in Von Duprin 6111, 6113, or 6213 electric strikes
• Openings that need fail secure operation where power is used to unlock the strike lip
• Jobs that need DS-LC low-current monitoring for system inputs



It helps by:

• Restoring correct strike operation with the proper 24VDC assembly for the strike series
• Supporting fail secure behavior based on your application needs
• Providing DS-LC monitoring that tracks latch bolt and lock status with low-current signaling



Specifications:

• Part number: 112774
• Voltage: 24 VDC
• Power mode: FS (fail secure)
• Monitoring: DS-LC low current option for computer monitoring, monitors latch bolt and lock status
• Compatible series: 6111, 6113, 6213



Key highlights

• Made for Von Duprin 6111, 6113, 6213 electric strikes
• Fail secure operation, power applied to unlock the strike lip
• DS-LC monitoring for latch bolt and lock status, low current signaling
• Supports the 6100 series strike system approach, including plug connectors and service-friendly design elements used across the line



What’s included:

• 112774 24VDC FS DS-LC box assembly (assembly quantity 1)
• DS tripper extension and connector components used with monitored configurations


Key features:

• FS mode: strike lip stays locked when power is lost
• DS-LC: low current monitoring for latch bolt and lock status
• Designed as a service replacement part for listed strike series


Keying options:

• No keying options, this is an electrified strike component controlled by power and monitoring circuits


Warranty

• Many Von Duprin 6100 series electric strike listings show a 5 year limited warranty on the strike products; warranty terms can vary by seller and application
