FS DS-LC - Fail Safe Dual Switch Low Current

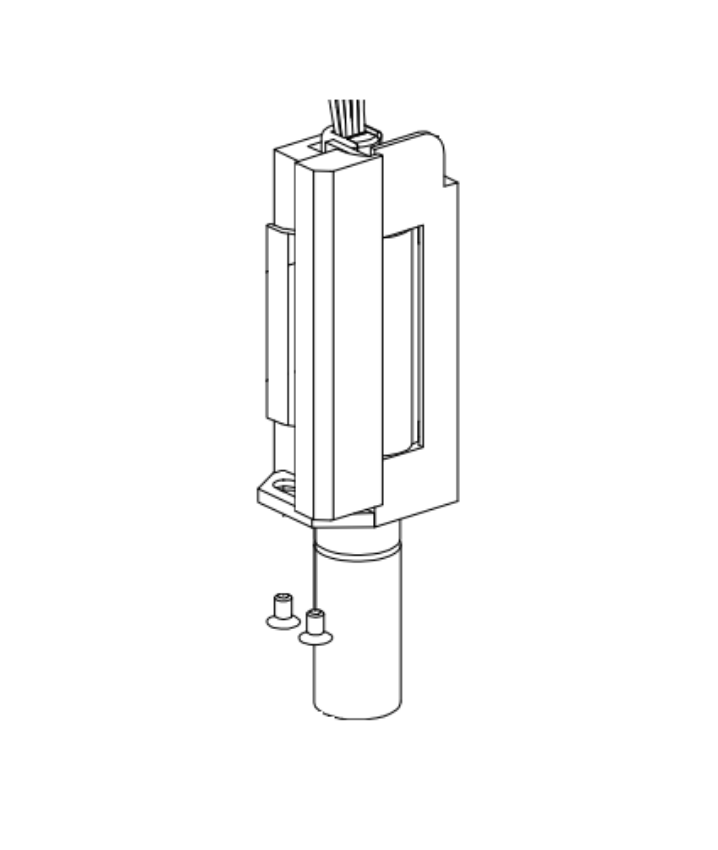

Von Duprin 112754, 6210 12VDC FS DS-LC Box Assembly

Keep your Von Duprin 6210 electric strike working the way it should with the correct replacement box assembly. Part 112754 is the 12VDC fail safe box assembly built for 6210 strikes that use DS-LC low current dual monitoring. It is used when servicing or restoring the internal box portion of the strike so the system can release the keeper when the access control signal changes.

About this item

• The Von Duprin 112754 is a 6210 12VDC fail safe DS-LC box assembly that replaces the box assembly in compatible Von Duprin 6210 electric strikes.


Function:

• This box assembly supports fail safe operation, where the strike unlocks when power is removed, and it supports DS-LC low current dual monitoring for latch and lock status monitoring.


Applications:

• It is used in Von Duprin 6210 electric strike service work where a 12VDC fail safe DS-LC box assembly is required.

Best for:

• Repairs on Von Duprin 6210 electric strikes that are 12VDC and fail safe
• Openings that use DS-LC low current dual monitoring for system feedback
• Service work where replacing the full box assembly is preferred over individual small parts


It helps by:

• Restoring the correct 6210 box assembly configuration for 12VDC fail safe DS-LC setups
• Supporting door status feedback using DS-LC low current monitoring
• Keeping the strike aligned with Von Duprin service manual parts listings for the 6210 platform


Specifications:

• Part number: 112754
• Series: 6200 Series (6210 section of service manual)
• Device compatibility: Von Duprin 6210 electric strike
• Voltage: 12VDC
• Power mode: FS (fail safe) meaning power removed unlocks the strike
• Monitoring: DS-LC low current dual monitoring (monitors latch bolt and lock status)


Key highlights

• Correct replacement box assembly for Von Duprin 6210
• 12VDC fail safe configuration
• DS-LC low current dual monitoring support
• Listed in the Von Duprin electric strikes service manual parts table for 6210


What’s included

• One 6210 12VDC fail safe DS-LC box assembly (112754)


Key features:

• Replacement box assembly for Von Duprin 6210
• Fail safe function (unlock on power loss)
• DS-LC low current dual monitoring for system feedback


Keying options

• Not applicable (electric strike service part, no keyed cylinder)


Warranty

• Electric strikes: 5 years on mechanical components
• Electric strikes: 1 year on electrical components including solenoid and wiring
