Product Overview

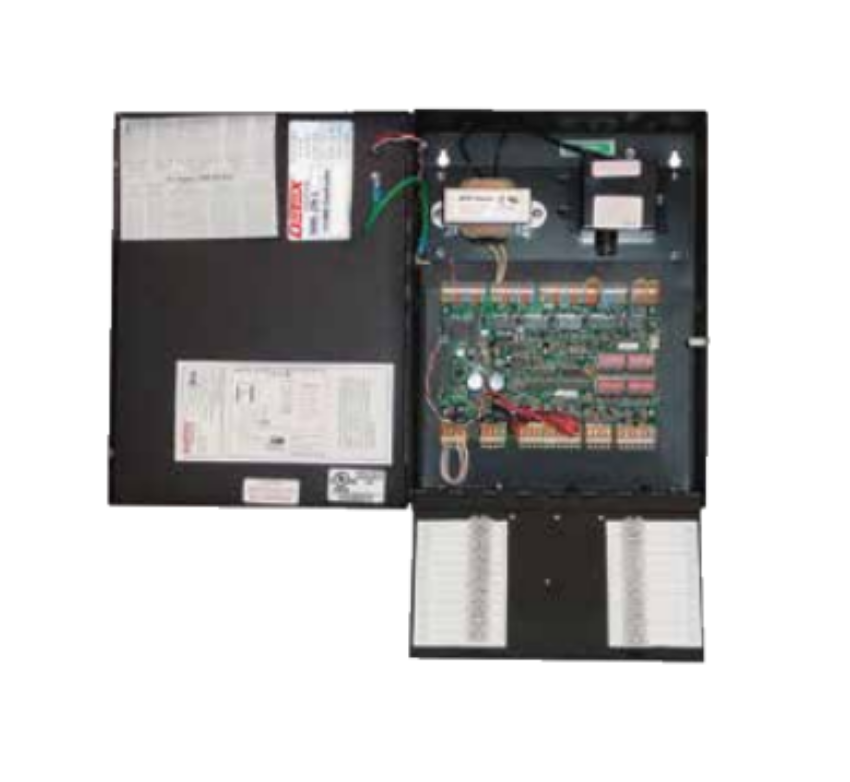

The Detex 11-800 from Detex is a universal logic controller and power supply designed to provide application control and regulated power for electrified door hardware, access control systems, delayed egress applications, and interlock configurations. Used with compatible hardware including the Value Series and Advantex Series, the controller receives input from switches, access control devices, or dry contact devices and processes those signals into the required outputs. One controller can manage up to two doors for standard egress or two-door interlock applications. The 11-800 includes output relays for locks, local alarms, and remote alarms, dual voltage selection (12/24VDC), a standard battery backup charging circuit, and a 24-point terminal strip with a flip-down tray for simplified wiring and service access. SecurityParts.com is a trusted source for commercial door hardware, access control products, security hardware, and OEM replacement parts.

Features

• Universal logic and power supply controller
• Power supply and controller integrated in one enclosure
• 12VDC or 24VDC selectable output
• Provides up to 2A DC power output
• Controls up to 2 separate doors
• Supports standard egress, delayed egress, and interlock applications
• 24-point terminal strip with flip-down tray
• Output relays for locks, local alarms, and remote alarms
• Relays configurable for wet or dry connections
• Battery backup and charging circuit included
• Inline fuse protection against power surges
• Multiple fire alarm relay input options
• Status LEDs for system monitoring and troubleshooting
• Pre-wired terminal strip with labeled connections
• Single AC line voltage activation
• Heavy-duty enclosure construction

Benefits

Advanced Multi-Door Access Control

• • Supports two-door control for delayed egress and interlock applications
  • Designed for electrified locks and commercial access control systems

Reliable Power & Backup Protection

• • Provides stable 12VDC or 24VDC power output
  • Integrated battery backup circuit supports uninterrupted operation
  • Fuse protection helps improve system safety and reliability

Simplified Installation

• • Pre-wired labeled terminal strip speeds up installation
  • Flip-down tray allows easier wiring access and maintenance
  • Centralized connections reduce setup complexity

Easy Monitoring & Service

• • Status LEDs provide fast troubleshooting feedback
  • On/Off switch simplifies servicing and inspection
  • Flexible wet or dry relay configurations support system integration

Compatible Models

• Detex Advantex Series
• Detex Value Series

Includes

• Back box
• Upper back pan and flip-up insert
• 24-point terminal strip
• Transformer
• Series 800 electronics
