Product Overview

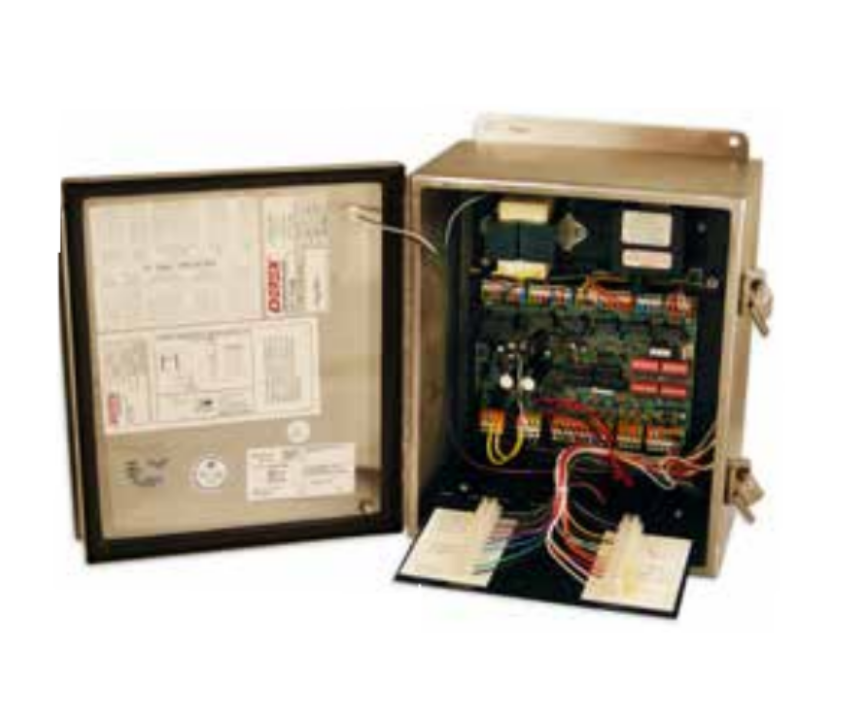

The Detex 106595-1 Logic Controller Power Supply is a universal controller designed to provide logic control and power for electrified hardware used in delayed egress, access control, and door interlock applications. This Detex controller supports up to two doors and is commonly used with compatible Detex systems, including Advantex Series and Value Series delayed egress configurations. The unit receives inputs from switches, access control systems, and dry-contact devices and converts them into the required outputs for locks, alarms, and related door hardware functions.

We are a trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

• Universal logic controller and power supply
• Supports up to two doors
• NEMA 4X outdoor-rated enclosure
• Selectable 12VDC or 24VDC output
• Minimum 2A DC output
• Battery backup and charging circuit
• Output relays for locks, local alarms, and remote alarms
• Status LEDs for troubleshooting
• Single AC line voltage activation
• Fuse-protected circuitry
• 9VDC 100mA terminal tap

Benefits

• Provides centralized control for electrified door hardware
• Supports multiple door control applications from a single enclosure
• Suitable for outdoor installations due to NEMA 4X protection
• Helps maintain operation during power interruptions with battery backup capability
• Simplifies troubleshooting through integrated status indicators
• Offers voltage flexibility for different installation requirements
• Combines power supply and logic control functions in one unit

Compatible Models

• Detex Advantex Series
• Detex Value Series
