Detex 106385 Wiring Harness, Logic Board to Power Board

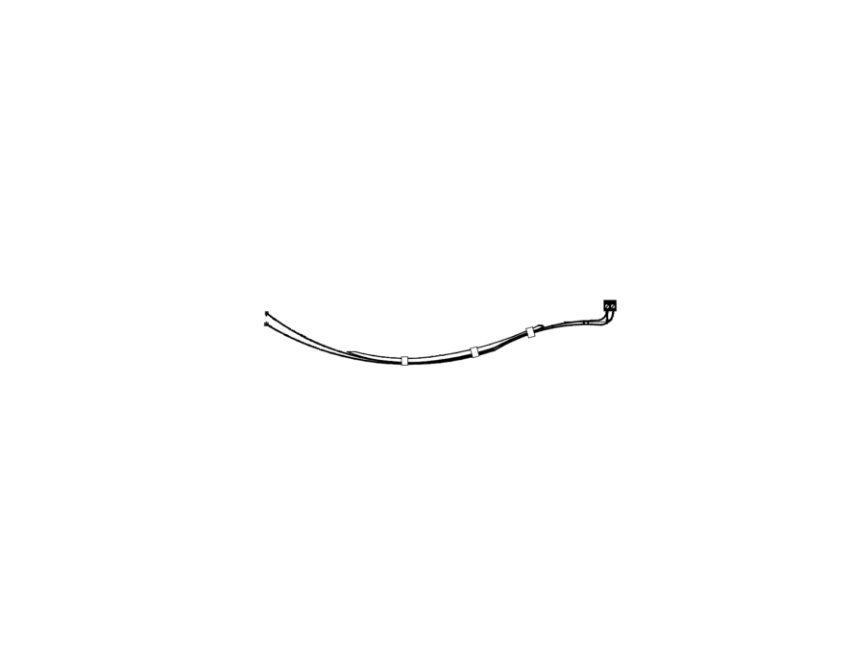

Detex 106385 wiring harness for EAX-3500

Detex

SKU: 106385

Detex 106385 Wiring Harness, Logic Board to Power Board

Available (3 - 4 Weeks)

The Detex 106385 is a wiring harness used to connect the logic board to the power board in the Detex EAX-3500 exit alarm

The Detex 106385 Wiring Harness connects the logic board to the power board within the EAX-3500 exit alarm. It is a service component for the EAX-3500 and is listed alongside the 106392 logic board and 106390 power board in the manufacturer’s current parts list. This harness is appropriate when the specified logic-board-to-power-board wiring component requires replacement during EAX-3500 service or maintenance.

We are your trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

  • Wiring harness for the EAX-3500.
  • Connects the logic board to the power board.
  • Listed as item 4 in the EAX-3500 parts breakdown.

Benefits

  • Provides the specified wiring connection between the EAX-3500 logic board and power board.
  • Allows the identified harness to be replaced as an individual service component.
  • Supports repair and maintenance of the Detex EAX-3500.

Compatibility

  • EAX-3500 Series
$245.00
$196.00
minus minus

Catalogs

Frequently Asked Questions

What is the Detex 106385?
It is a genuine wiring harness for connecting the logic board to the power board in the EAX-3500.
What model is the Detex 106385 compatible with?
It is designed compatible with the EAX-3500 Series.
What does the Detex 106385 wiring harness connect?
It connects the logic board to the power board.
Does the 106385 connect to the EAX-3500 power board?
Yes. Detex describes the “Wiring harness, logic board to power board.”
Is the Detex 106385 an OEM replacement part?
Yes. The Detex 106385 is a genuine replacement component.

Models that Use this Part

Detex EAX-3500 Series Parts Diagram

Detex EAX-3500 Series Parts Diagram

Detex EAX-3500 Series

Genuine Detex 106385 wiring harness connects the logic board to the power board in the EAX-3500, providing the specified replacement connection for service.
