Detex 106385 Wiring Harness

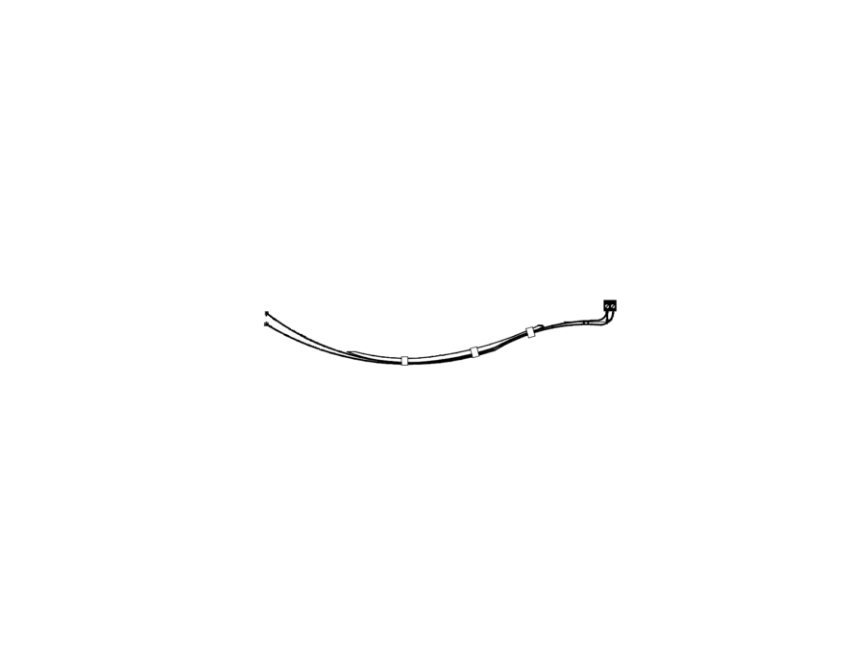

Detex 106385 wiring harness for EAX-3500

Detex

SKU: 106385

Detex 106385 Wiring Harness

Available (3 - 4 Weeks)

The Detex 106385 is a wiring harness that connects the logic board to the power board in the EAX-3500 exit alarm.

The Detex 106385 is the wiring harness that connects the logic board to the power board in the EAX-3500. It provides the documented wiring connection between these two boards within the assembly. This part is intended for replacement when the existing wiring harness needs to be replaced due to damage, failure, or service requirements.

We are your trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

  • Wiring harness for the EAX-3500.
  • Connects the logic board to the power board.
  • Listed as item 4 in the EAX-3500 parts breakdown.

Benefits

  • Provides the specified wiring connection between the EAX-3500 logic board and power board.
  • Allows the identified harness to be replaced as an individual service component.
  • Supports repair and maintenance of the Detex EAX-3500.

Compatibility

  • EAX-3500 Series
$245.00
$196.00
minus minus

Catalogs

Frequently Asked Questions

What is the Detex 106385?
It is a genuine wiring harness for connecting the logic board to the power board in the EAX-3500.
What model is the Detex 106385 compatible with?
It is designed compatible with the EAX-3500 Series.
What does the Detex 106385 wiring harness connect?
It connects the logic board to the power board.
Does the 106385 connect to the EAX-3500 power board?
Yes. Detex describes the “Wiring harness, logic board to power board.”
Is the Detex 106385 an OEM replacement part?
Yes. The Detex 106385 is a genuine replacement component.
