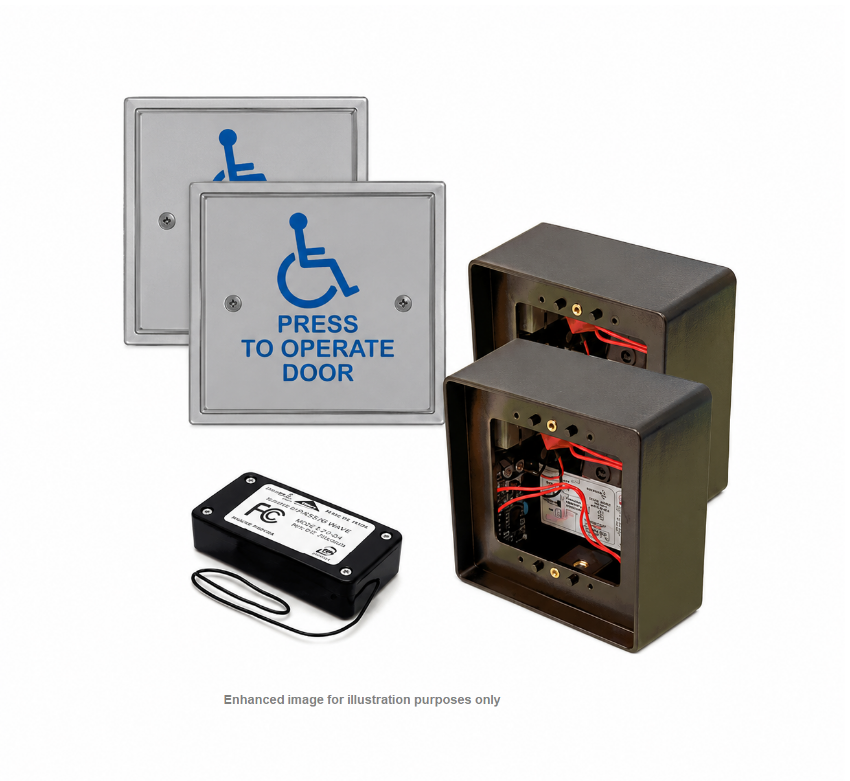

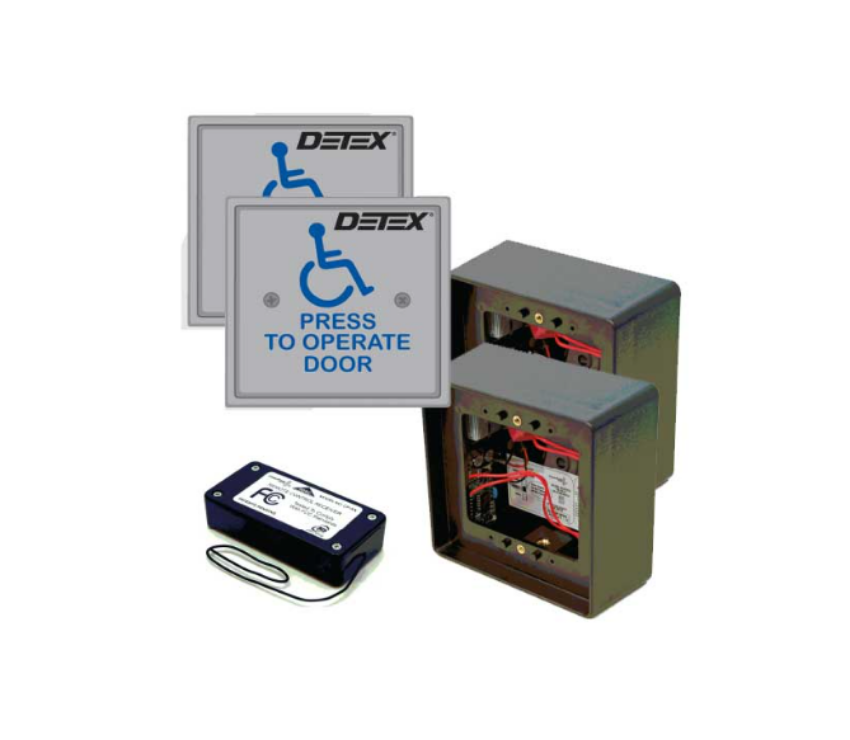

Includes

• 2x 4-1/2” Square HSS-Detex Pushplate Switch (104755)
• 2x Wall-Mount Boxes / Transmitter (104753)
• 1x Multi-Mode Receiver (104752)

Features

• Includes tamper-resistant screws
• 4" x 4" All Active Face Plate
• Most reliable microswitch in the industry
• CP/RX and CP/TX accept three different frequencies: HDRC™, 300 MHz, and 390 MHz
• CP/RX can be programmed as a timer, dual receiver, or sequencing receiver
• Two-piece mounting boxes designed for quick installation and battery replacement
• CP/TX transmitter comes prewired and installed with a 9V battery in a surface mount box
• Utilizes Proprietary High Definition Radio Control™ (HDRC™)
• Three user-selectable frequencies available in a single unit: HDRC™, 300 MHz, and 390 MHz
• FCC License for all three frequencies
• SignalLock™ guarantees signal transmission when push plate switch is pressed
• Power-saving circuitry extends battery life
• Integrated signal-radiating antenna boosts signal strength
• 4½" x 4½" formed stainless steel back plate
• Rubber bellows increases weather protection (included)
• Includes Surface Mount Box with Standard Transmitter (104753)
• Includes Standard Receiver (104752)

Benefits

• Designed to provide reliable activation of any automatic door
• Utilizes Proprietary High Definition Radio Control™ (HDRC™) for unsurpassed signal transmission clarity
• CP/RX and CP/TX can be used interchangeably with other manufacturers' products that operate on its frequencies
• Durable finishes
• Built utilizing heavy-gauge stainless steel, aircraft-quality rivets, and screws

Technical Information

Push Plate Assembly

• • 4" x 4" All Active Face Plate
  • 4½" x 4½" Formed Stainless Steel Back Plate
  • UL Listed Momentary Switch, SPDT, 15 Amp @ 125V AC
  • Output Contact: Form C, Rated at 3 Amps
  • Power Requirements: 12V–24V AC or DC
  • Relay Contact Rating: 3 Amp @ 24V AC

Transmitter (104753)

• • Temperature Range: -4°F to 140°F (-20°C to 60°C)
  • 300 MHz: Compatible with Multicode™ products
  • 390 MHz: Compatible with MS SEDCO and GENIE™ products
  • Weight: <0.25 lbs.
  • Physical Size: 4" L x 2" W x 1" H
  • Power Requirements: 9V Battery
  • Relay Contact Rating: 3 Amp @ 24V AC

Receiver (104752)

• • Temperature Range: -4°F to 140°F (-20°C to 60°C)
  • 300 MHz: Compatible with Multicode™ products
  • 390 MHz: Compatible with MS SEDCO and GENIE™ products
  • Physical Size: 2¼" W x 2¼" D x 2" H
  • Weight: 1.46 lbs. (663g)
