Detex 104755 4-1/2" Square Push Plate Switch

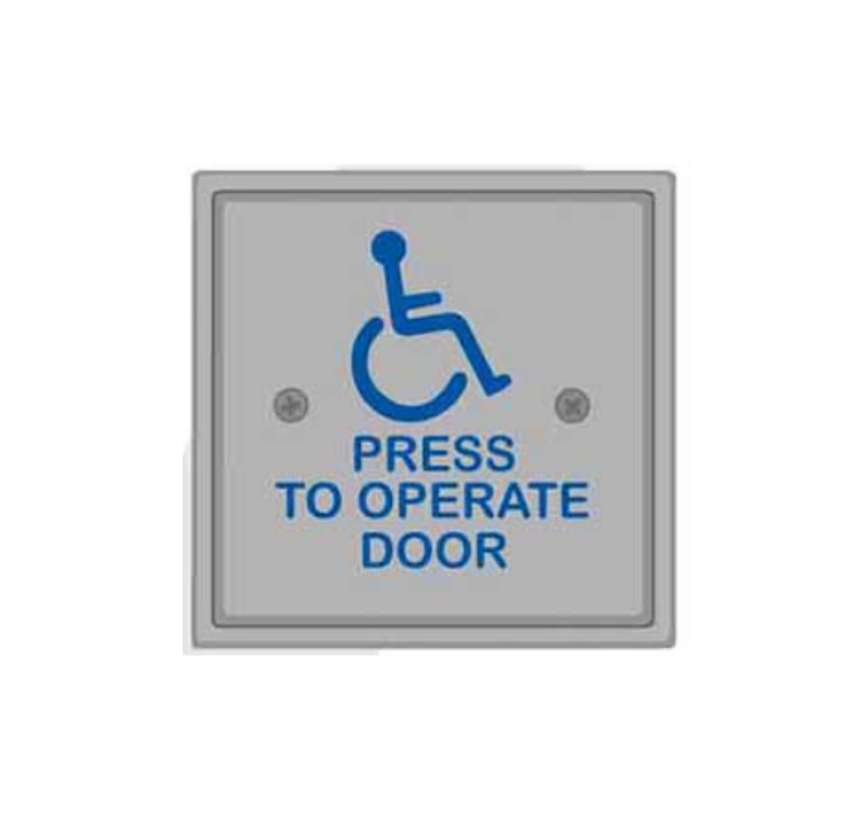

Detex 104755 4-1/2 inch square push plate switch

Detex

SKU: 104755

Detex 104755 4-1/2" Square Push Plate Switch

The Detex 104755 is a 4-1/2" square push plate switch designed to provide reliable activation of automatic doors. It fits single-gang and 2-gang electrical boxes and includes weather-protection features for commercial door applications.

Product Overview

The Detex 104755 is a 4-1/2" square push plate switch designed to activate automatic door operators in commercial and institutional facilities. This activation switch combines architectural-quality finishes with industrial-grade components to provide reliable door activation. The 104755 features a 4" all-active face plate, a formed stainless steel back plate, and a UL-listed SPDT momentary microswitch. It is designed as a universal switch that fits single-gang or 2-gang electrical boxes without adapters and can also be used with compatible surface-mount boxes. Rubber bellows are included to increase weather protection in exterior applications.

We are a trusted source for commercial door hardware, access control products, security hardware accessories, and OEM replacement components.

Features

  • Designed for reliable activation of automatic doors
  • 4" square face plate with etched and paint-filled legend
  • 4" x 4" all-active face plate
  • 4-1/2" x 4-1/2" formed stainless steel back plate
  • UL-listed SPDT momentary microswitch rated at 15A @ 125VAC
  • Rubber bellows included for increased weather protection
  • Fits single-gang or 2-gang electrical boxes without adapters
  • Compatible with optional surface-mount boxes
  • Constructed using heavy-gauge stainless steel, aircraft-quality rivets, and screws

Benefits

  • Provides dependable activation for automatic door systems
  • Simplifies installation by fitting common electrical box configurations
  • Helps reduce unauthorized tampering with included tamper-resistant hardware
  • Supports exterior applications with enhanced weather protection
  • Offers durable construction for commercial environments
  • Provides a large active push area for convenient operation
$234.00
$187.20
minus minus

Frequently Asked Questions

hat is the Detex 104755 used for?
The Detex 104755 is a push plate switch used to activate automatic door operators.
Does the 104755 fit standard electrical boxes?
Yes. The 104755 is designed to fit single-gang and 2-gang electrical boxes without adapters.
Is the switch suitable for exterior installations?
The switch includes a rubber bellows that increases weather protection for exterior applications.
What type of switch mechanism does the 104755 use?
It uses a UL-listed SPDT momentary microswitch rated at 15A @ 125VAC.
Are tamper-resistant screws included?
Yes. Tamper-resistant screws are included with the switch assembly.
