Picture of Detex

SKU: 104752-RXM

Detex 104752-RXM Multi-Mode Receiver with RXM

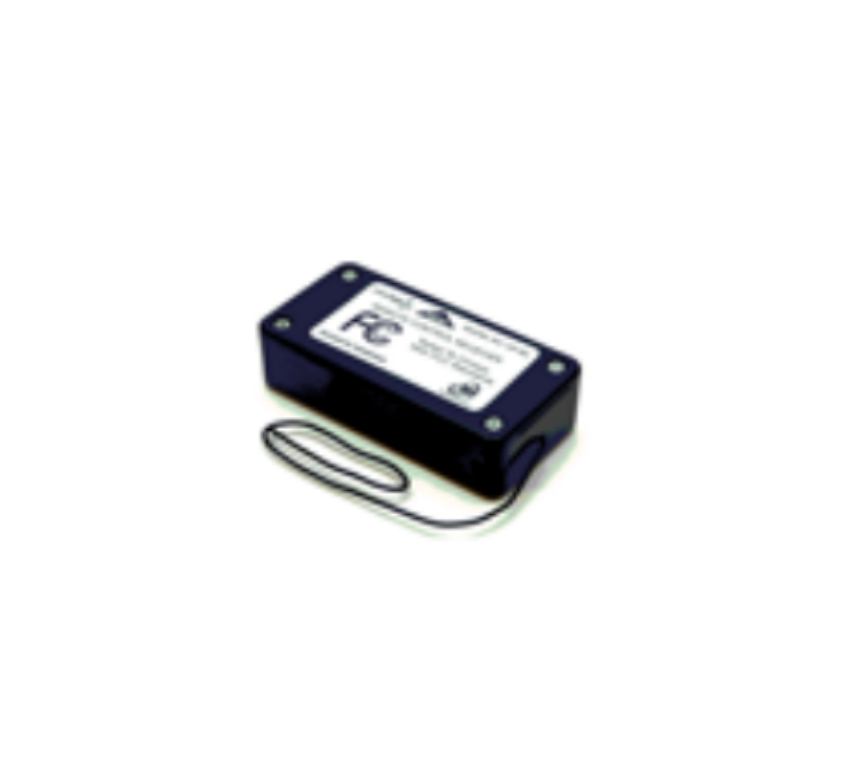

Detex 104752-RXM multi-mode receiver with RXM module

Detex

SKU: 104752-RXM

Detex 104752-RXM Multi-Mode Receiver with RXM

Available (2 - 3 weeks)

The Detex 104752-RXM is a multi-mode wireless receiver with an RXM add-on module that provides a second output for dual-channel or sequenced-output operation in automatic door activation systems. Based on official Detex documentation, it is designed for use with compatible Detex wireless activation products.

Product Overview

The Detex 104752-RXM Multi-Mode Receiver with RXM is a wireless receiver designed to receive activation signals for automatic door applications. Manufactured by Detex, this receiver includes the RXM add-on module, which provides a second output and enables advanced operating modes such as dual-channel receiver functionality and sequenced outputs. It is intended for use within Detex wireless activation systems and compatible automatic door control applications.

We are a trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

  • Multi-mode wireless receiver
  • Includes RXM add-on module
  • Supports dual-channel receiver operation
  • Supports sequenced output operation
  • Programmable operating modes
  • Accepts HDRC, 300 MHz, and 390 MHz frequencies
  • Compatible with multiple wireless activation devices
  • Operates on 12V to 24V AC or DC power input

Benefits

  • Provides wireless activation capability for automatic door systems
  • Supports advanced control configurations through dual outputs
  • Allows flexible installation with multiple operating modes
  • Accommodates multiple supported transmission frequencies
  • Enables sequencing functions when required by the application
$349.00
$279.20
minus minus

Catalogs

Frequently Asked Questions

What is the Detex 104752-RXM?
The Detex 104752-RXM is a multi-mode wireless receiver supplied with an RXM add-on module for dual-channel and sequenced-output operation.
What does the RXM module provide?
The RXM module adds a second output that enables dual-channel receiver and sequenced-output operating modes.
What frequencies does the 104752-RXM support?
The receiver accepts HDRC, 300 MHz, and 390 MHz frequencies.
What power is required for operation?
The receiver operates on 12V to 24V AC or DC power.
Which Detex transmitters can be used with this receiver?
The Detex 104737 series hand-held wireless transmitters as a compatible accessories.
