Detex 101716 Mylar Bottom Latch Bracket Locator

Detex 101716 mylar bottom latch bracket locator

Detex

SKU: 101716

Detex 101716 Mylar Bottom Latch Bracket Locator

Available (3 - 4 Weeks)

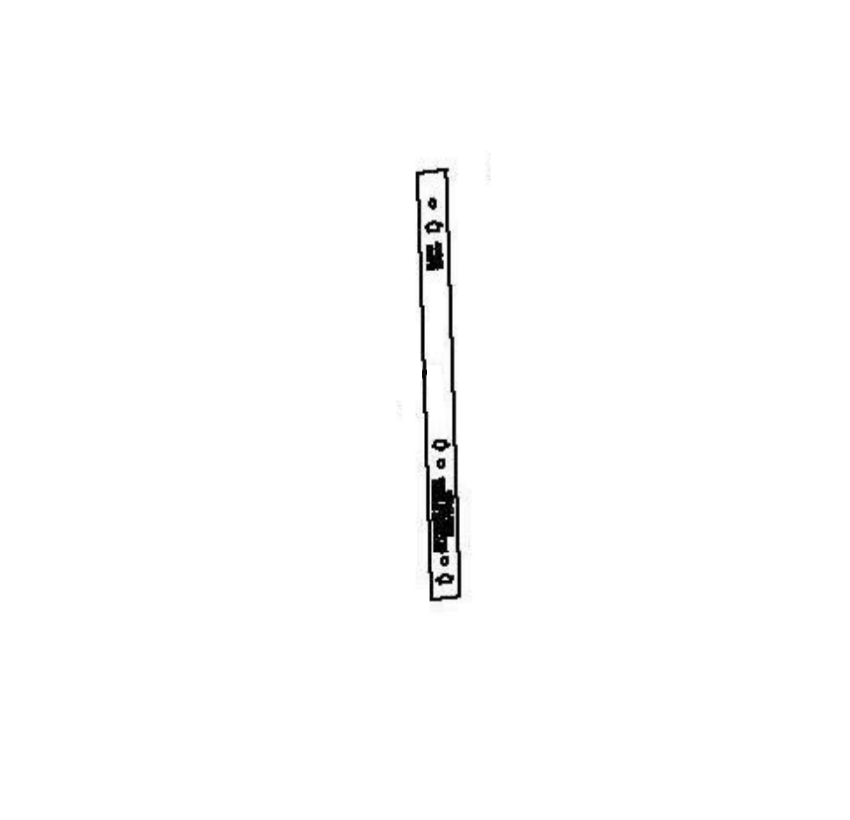

The Detex 101716 Mylar Bottom Latch Bracket Locator is an OEM installation locator used to accurately position and drill the bottom latch bracket mounting holes on compatible Detex Advantex 20 and 50 Series vertical rod exit devices.

The Detex 101716 Mylar Bottom Latch Bracket Locator is an OEM installation aid manufactured by Detex for use during the installation of compatible Advantex 20 and 50 Series vertical rod exit devices. This self-adhesive mylar locator aligns with the edge and bottom of the door to accurately mark and drill the mounting holes for the bottom latch bracket. The locator may remain on the door during installation.

We are your trusted source for commercial door hardware, OEM replacement parts, and security hardware components.

Features

  • Genuine Detex OEM replacement component
  • Mylar locator for bottom latch bracket installation
  • Self-adhesive locator for door positioning
  • Used to mark and drill bottom latch bracket mounting holes

Key Benefits

  • Helps ensure accurate bottom latch bracket placement.
  • Simplifies hole layout during installation.
  • Supports proper alignment of bottom latch hardware.

Compatibility

  • Detex Advantex 20/50 Series
$10.00
$8.00
minus minus

Catalogs

Frequently Asked Questions

What is the Detex 101716?
It is a mylar installation locator used to position and drill the bottom latch bracket mounting holes on compatible Detex exit devices.
Which Detex series is it compatible with?
It is used with Detex Advantex 20 Series and Advantex 50 Series vertical rod exit devices.
What is the purpose of the mylar locator?
It provides accurate positioning for drilling the bottom latch bracket mounting holes during installation.
Can the locator remain on the door during installation?
Yes. The locator may remain permanently in place if desired.
Is this a genuine OEM replacement part?
Yes. It is a genuine OEM replacement part.
