Detex 10 Series Rim Exit Device

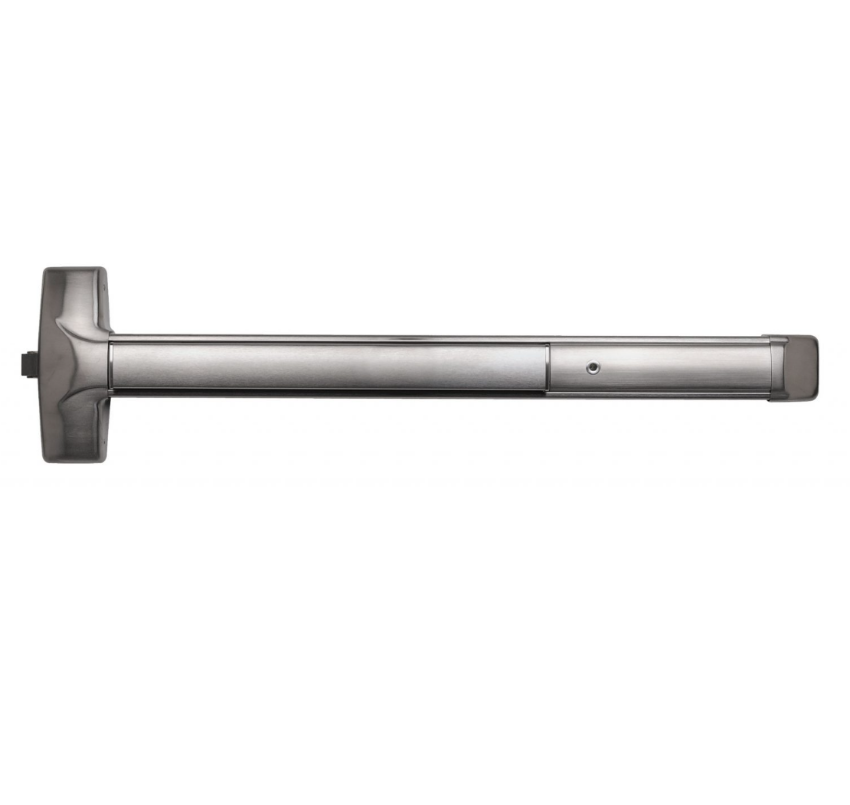

Picture of 10 Series Rim Exit Device

Detex

SKU: 10

Detex 10 Series Rim Exit Device

The 10 Series rim exit device is a tough and reliable panic and fire exit tool designed for all kinds of single and double doors, including those with center posts. The special mounting plate and strike locator system make it super easy and really accurate to install panic hardware.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • 628 / US28 - Aluminum Anodized
    628 / US28 - Aluminum Anodized
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 611 / US9 - Polished Bronze
    611 / US9 - Polished Bronze
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available
  • 693 / SPBLK - Black Painted
    693 / SPBLK - Black Painted
    Not available
  • 695 / DKBRZ - Dark Bronze, Painted
    695 / DKBRZ - Dark Bronze, Painted
    Not available
*

Features

  • All exposed surfaces are finishedover stainless steel with PVD, an environmentally-friendly finishing process.
  • Non-handed
  • Field sizeable
  • Stainless steel deadlocking, Pullman-type latch bolt.
  • 1/8 turn hex or cylinder dogging

Benefits

  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
  • Fast and easy installation saves time and money.
  • Outside trims are easily changed  or re-keyed without removing  device from door.
  •  Patented mounting plate and strike locator system replaces paper templates
  • Minimal door prep saves time and money.
  • Heavy duty angled end cap deflects damage away from device.

Mechanical Options

  • F - 3-Hour Fire Rated
  • H - Hurricane Rated
  • FH - Fire-Rated/Hurricane Rated
  • W - Weatherized (mechanical only)

Custom Length

  • 36 - Fits 36" Door Width (Std.)
  • 48 - Fits 48" Door Width

Dogging Option

  • HD - Hex Dogging (Std.)
  • CD - Cylinder Dogging
  • LD - Less Dogging

Finishes

  • 605 / US3 - Polished Brass
  • 606 / US4 - Brushed Brass
  • 611 / US9 - Polished Bronze
  • 612 / US10 - Brushed Bronze
  • 613 / US10B - Oil Rubbed Bronze
  • 628 / US28 - Aluminum Satin
  • 629 / US32 - Polished Stainless Steel
  • 630 / US32D - Brushed Stainless Steel
  • 693 / SPBLK - Black, Painted
  • 695 / SP 313 - Dark Bronze, Painted

Technical Information

  • Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
  • Door Thickness - Fits standard 1-3/4” - 2-1/4” doors (for other door thicknesses contact factory)
  • Minimum Stile - 4-5/8” with standard 99 strike; 4-1/8” with optional 98 strike
  • Fasteners - Machine and Self- Drilling Screws standard



$2,082.00
$1,686.42
