Detex 10-800 Logic Controller

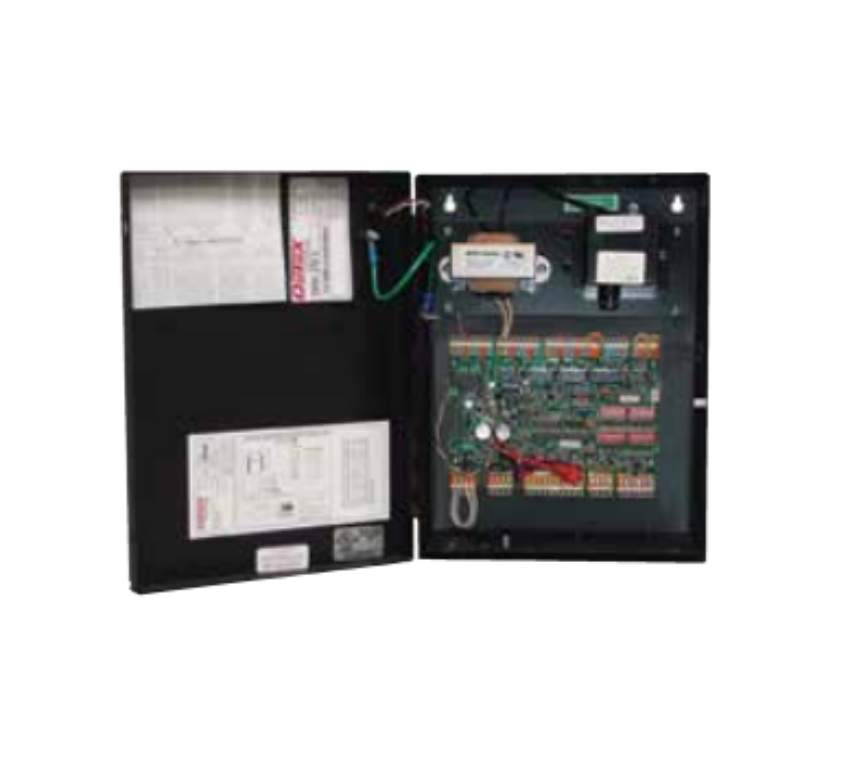

Detex 10-800 logic controller

Detex

SKU: 10-800

Detex 10-800 Logic Controller

The Detex 10-800 Logic Controller is a universal logic and power supply controller designed to provide regulated power and application control for commercial door security systems. It is used with compatible Detex Value Series and Advantex delayed egress and access control applications.

Product Overview

The Detex 10-800 Logic Controller is a universal logic and power supply controller designed to provide regulated DC power and application control for commercial access control, delayed egress, and door security systems. As part of the Detex Series 800 family, the 10-800 supports up to two openings and provides configurable control functions for compatible locking hardware and security devices. It identifies applications involving both the Value Series and Advantex product families. The controller is designed for commercial installations requiring centralized logic control, regulated power distribution, relay outputs, and battery backup capability.

We are a trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

  • Universal logic and power supply controller
  • Power supply and controller integrated in one enclosure
  • 12VDC or 24VDC selectable output
  • Provides up to 2A DC power output
  • Controls up to 2 separate doors
  • Supports standard egress, delayed egress, and interlock applications
  • Output relays for locks, local alarms, and remote alarms
  • Relays configurable for wet or dry connections
  • Battery backup and charging circuit included
  • Inline fuse protection against power surges
  • Multiple fire alarm relay input options
  • Status LEDs for system monitoring and troubleshooting
  • Central terminal connections for simplified wiring
  • Labeled connections for easy circuit identification
  • Single AC line voltage activation
  • Heavy-duty enclosure construction

Benefits

  • Centralizes door security control functions
  • Provides regulated power for connected devices
  • Supports multiple commercial door security applications
  • Simplifies integration of locking and alarm components
  • Allows flexible configuration for project requirements
  • Supports continued operation with backup battery capabilityn

Compatible Models

  • Detex Value Series
  • Detex Advantex Series

Contains:

  • Back box
  • Transformer
  • Series 800 electronics
$2,240.00
$1,792.00
minus minus

Catalogs

Frequently Asked Questions

What is the Detex 10-800?
The Detex 10-800 is a universal logic and power supply controller designed for commercial access control and delayed egress applications.
What systems can the 10-800 be used with?
Is compatible with Value Series and Advantex devices.
How many openings can the 10-800 support?
The controller is designed to support up to two openings.
Does the 10-800 provide power to connected devices?
Yes. The unit provides regulated 12 or 24 VDC power for compatible applications.
Does the 10-800 support battery backup?
Yes. The controller includes battery backup capability for supported installations.
