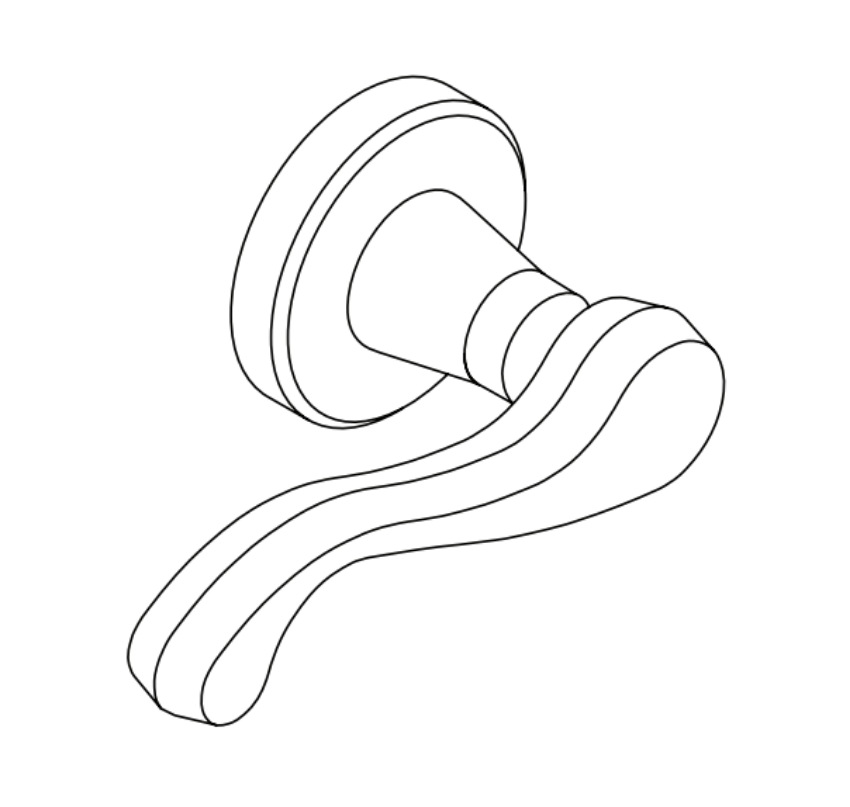

Schlage 09-506 AST Outside Lever Assembly For L Series

Schlage 09-506 AST Outside Lever Assembly for L Series
Picture of 09-506 AST Outside Lever Assembly For L Series
Picture of 09-506 AST Outside Lever Assembly For L Series
Dynamic Image
Schlage 09-506 AST Outside Lever Assembly for L Series
Picture of 09-506 AST Outside Lever Assembly For L Series
Picture of 09-506 AST Outside Lever Assembly For L Series

Schlage

SKU: 09-506 AST

Schlage 09-506 AST Outside Lever Assembly For L Series

Available (3 - 4 Weeks)

The Schlage 09-506 AST Outside Lever Assembly is a genuine OEM replacement outside lever assembly for Schlage L Series mortise locks.
*
  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available
  • 622 - US19 - Powder-Coated Matte Black
    622 - US19 - Powder-Coated Matte Black
    Not available
  • 609 / US5 Antique Brass
    609 / US5 Antique Brass
    Not available
*

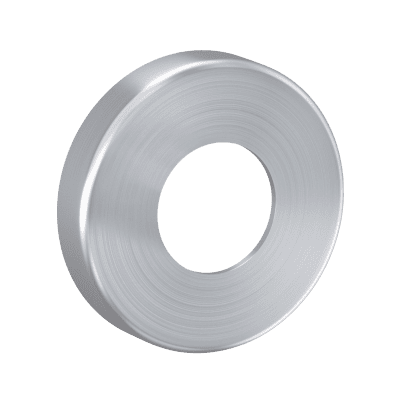

  • A Rose - 2 1⁄8" (54 mm) diameter
    A Rose - 2 1⁄8" (54 mm) diameter
    Not available
  • B Rose - 2 9⁄16" (65 mm) diameter
    B Rose - 2 9⁄16" (65 mm) diameter
    Not available

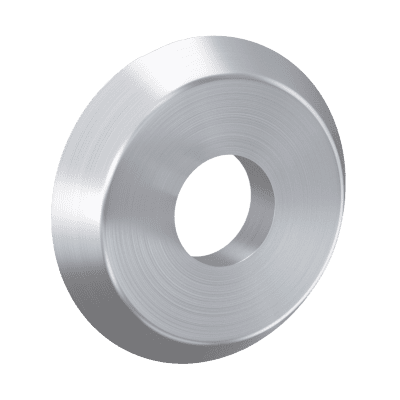

  • C Rose - 2 5⁄8" (66.68 mm) Diameter
    C Rose - 2 5⁄8" (66.68 mm) Diameter
    Not available
*
  • LH - Left Hand
    LH - Left Hand
    Not available

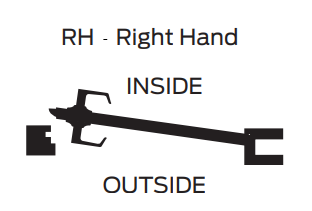

  • RH - Right Hand
    RH - Right Hand
    Not available

Schlage 09-506 AST Outside Lever Assembly is a genuine OEM replacement outside lever assembly designed for Schlage L Series mortise locksets. This replacement assembly restores the exterior operating lever of compatible L Series locks using the AST lever design. It is intended for maintenance, repair, or replacement of worn or damaged outside lever assemblies while preserving the original fit, function, and appearance of the lock.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 09-506 AST
Product Type: Outside Lever

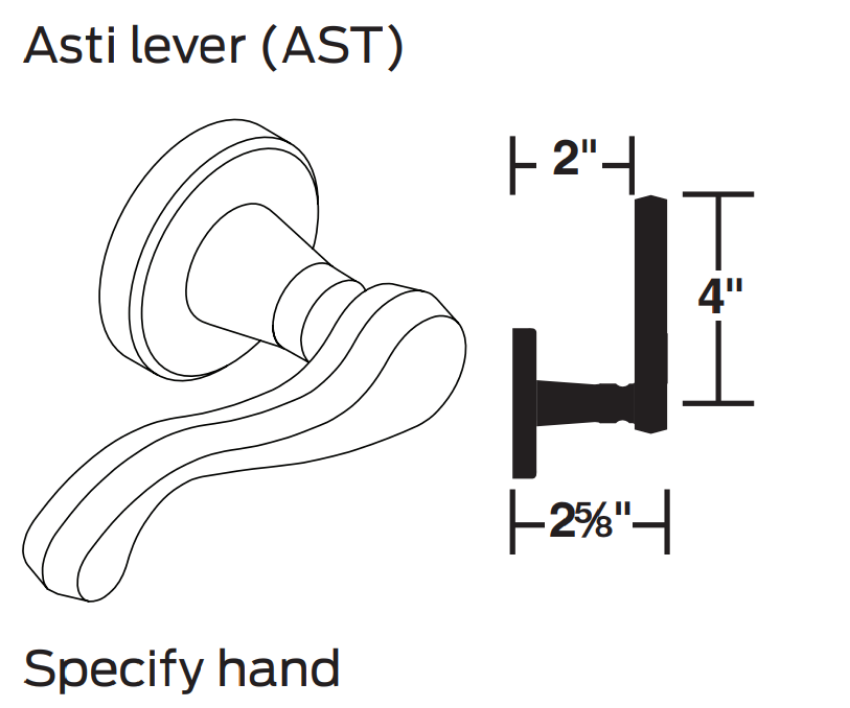

Lever Design: Asti
Product Series: L/LE Series

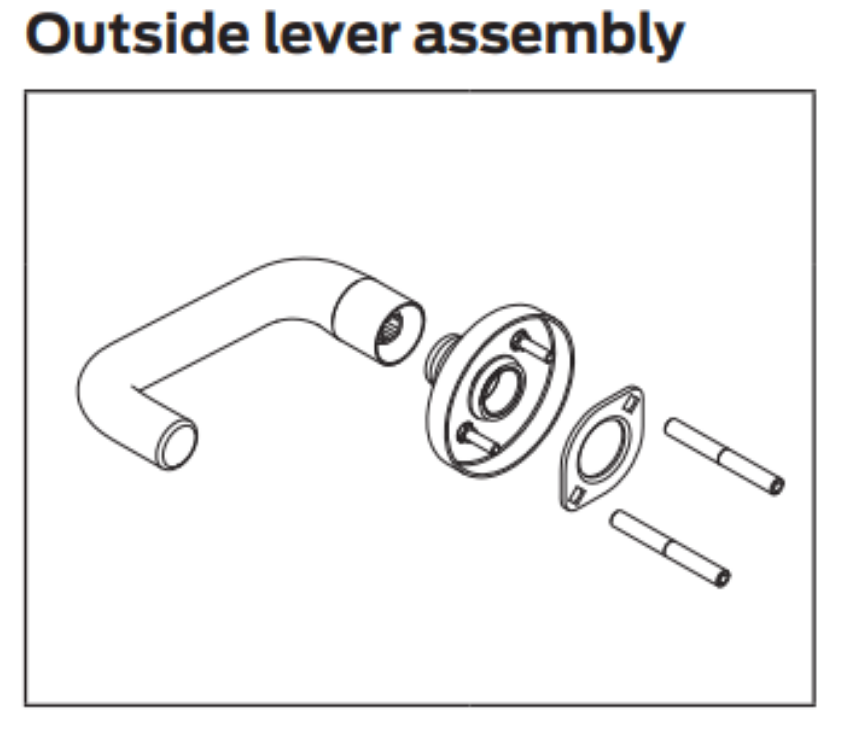

Primary Function: Replaces the outside lever and rose assembly
Application: Commercial Grade 1 Mortise Locks
OEM Part: Yes

$235.00
$143.35
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 09-506 AST?
The Schlage 09-506 AST is a genuine OEM outside lever assembly for Schlage L Series mortise locks.
Which lock series is this lever compatible with?
It is designed for Schlage L Series mortise locksets.
Is handing required when ordering?
Yes. Handing must be specified when ordering.
Does this part include the mortise lock case or cylinder?
No. The 09-506 AST Outside Lever Assembly is an exterior trim assembly only. The mortise lock case, cylinder, and other lock components are sold separately.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
