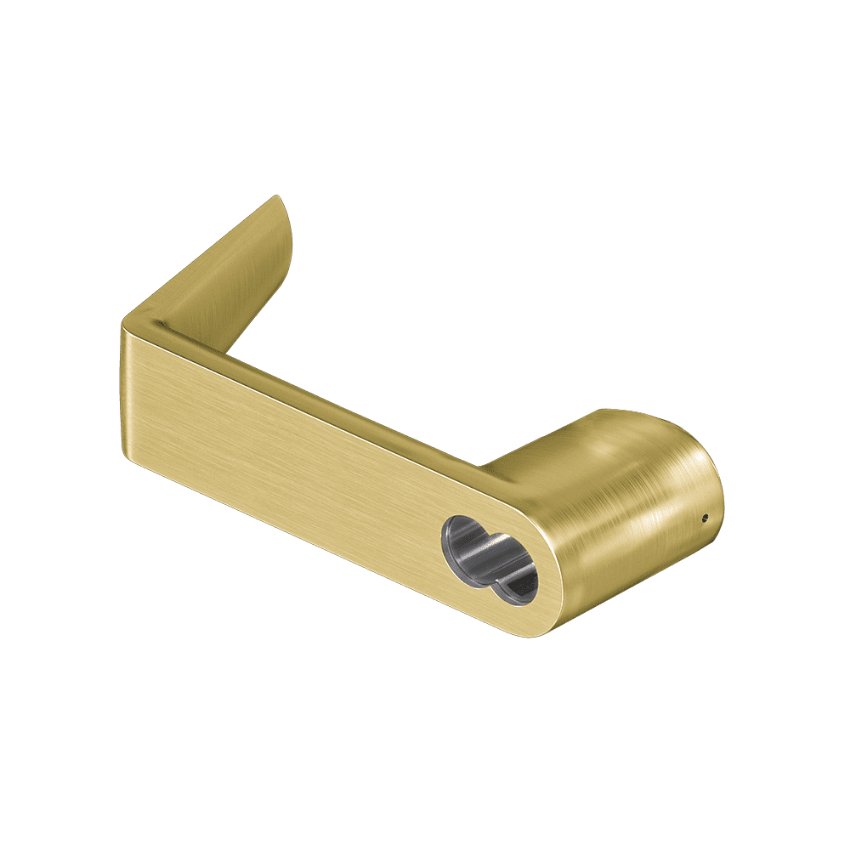

Schlage 03-280-8RO Rhodes tactile lever KIL 7-pin less cylinder in 606 Satin Brass

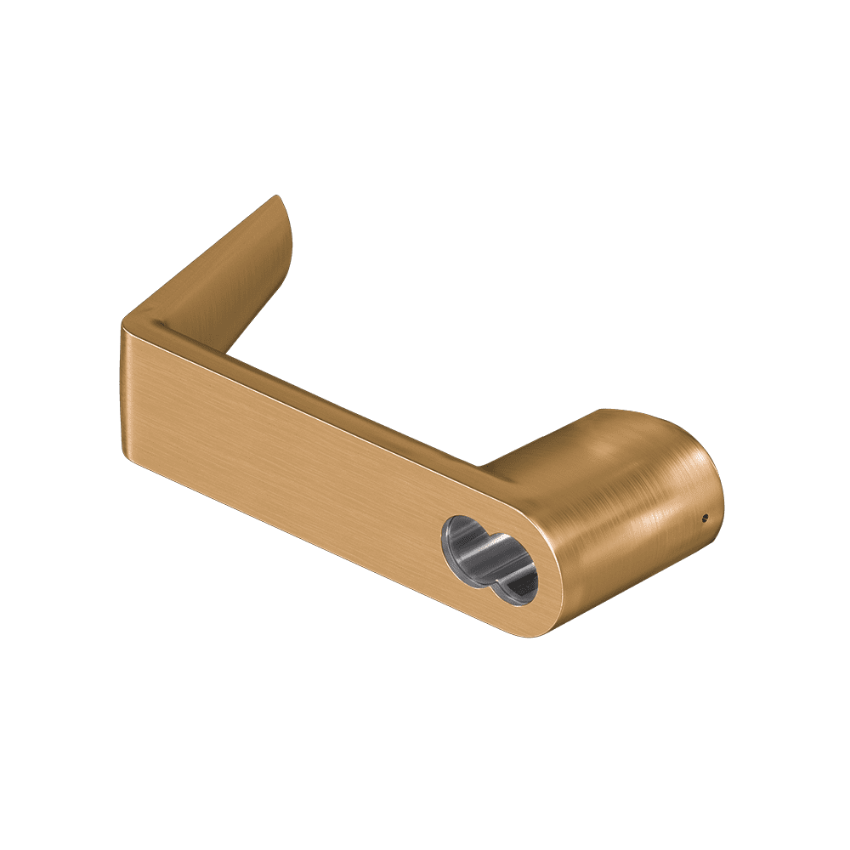

Schlage 03-280-8RO Rhodes tactile lever KIL 7-pin less cylinder in 612 Satin Bronze
Schlage 03-280-8RO Rhodes tactile lever KIL 7-pin less cylinder in 613 Oil Rubbed Bronze

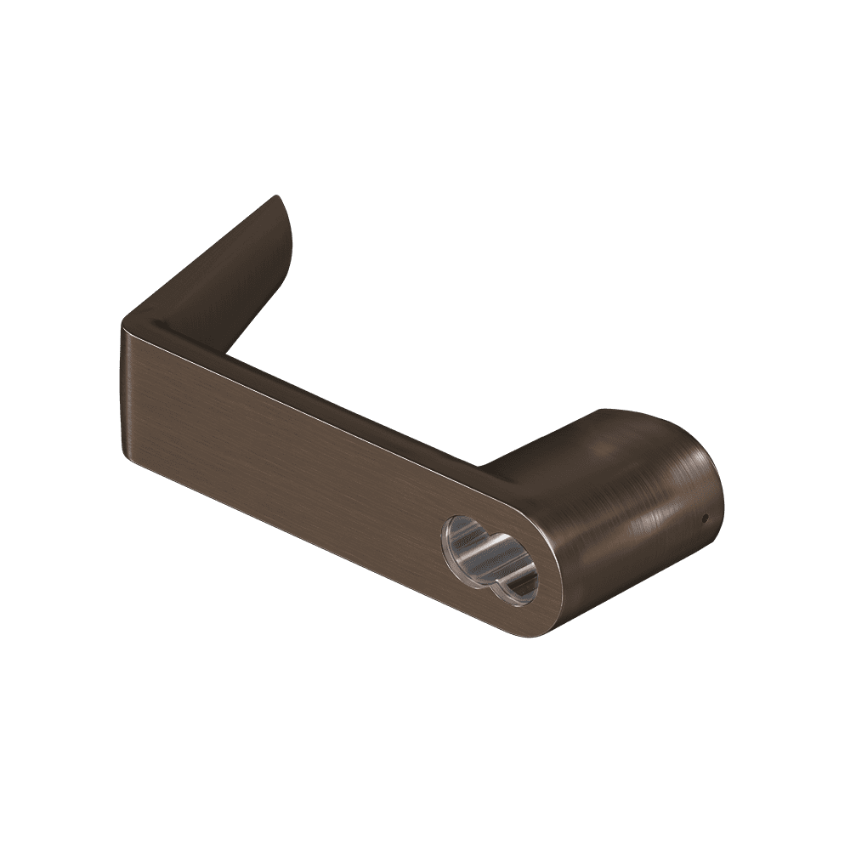

Schlage 03-280-8RO Rhodes tactile lever KIL 7-pin less cylinder in 643E Aged Bronze
Schlage 03-280-8RO Rhodes tactile lever KIL 7-pin less cylinder in 619 Satin Nickel

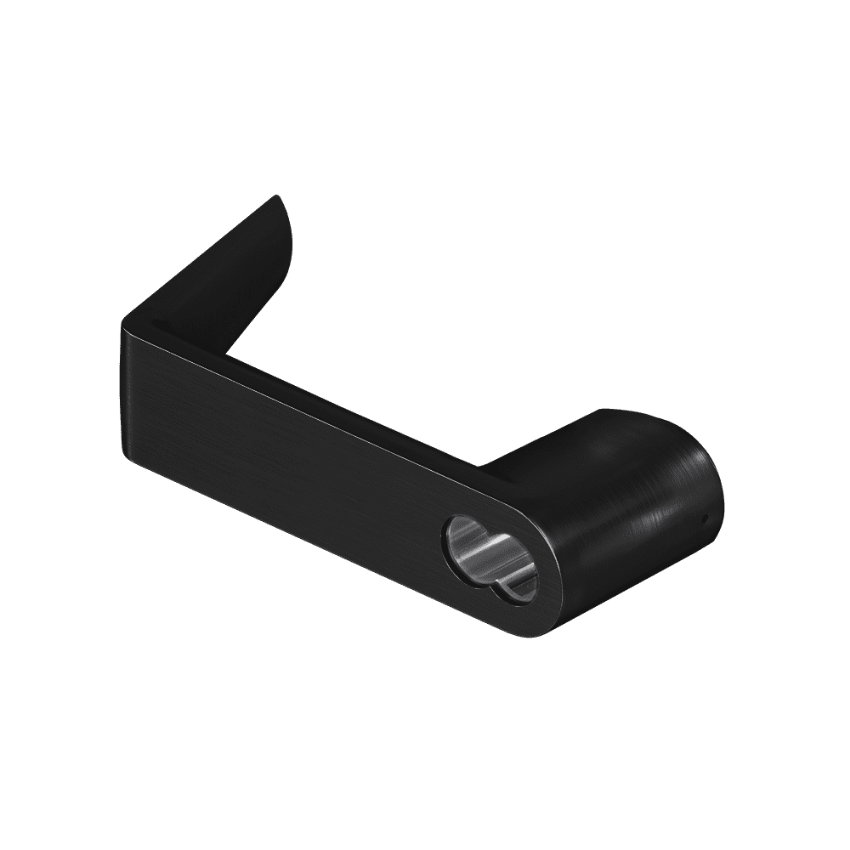

Schlage 03-280-8RO Rhodes tactile lever KIL 7-pin less cylinder in 622 Matte Black
Schlage 03-280-8RO Rhodes tactile lever KIL 7-pin less cylinder in 625 Bright Chrome

Schlage

SKU: 03-280-8RO

Schlage 03-280-8RO Rhodes Tactile Lever KIL 7-Pin (Falcon) Less Cylinder

Available (3 - 4 Weeks)

Schlage 03-280-SPA is a genuine OEM Sparta-style exterior lever less cylinder designed for compatible Schlage electronic locks configured for Falcon 7-pin Key-in-Lever (FA7) cylinders. Original part number references include 23779747 (Cylindrical), 09-331-8RO (Mortise/Exit Device)
*

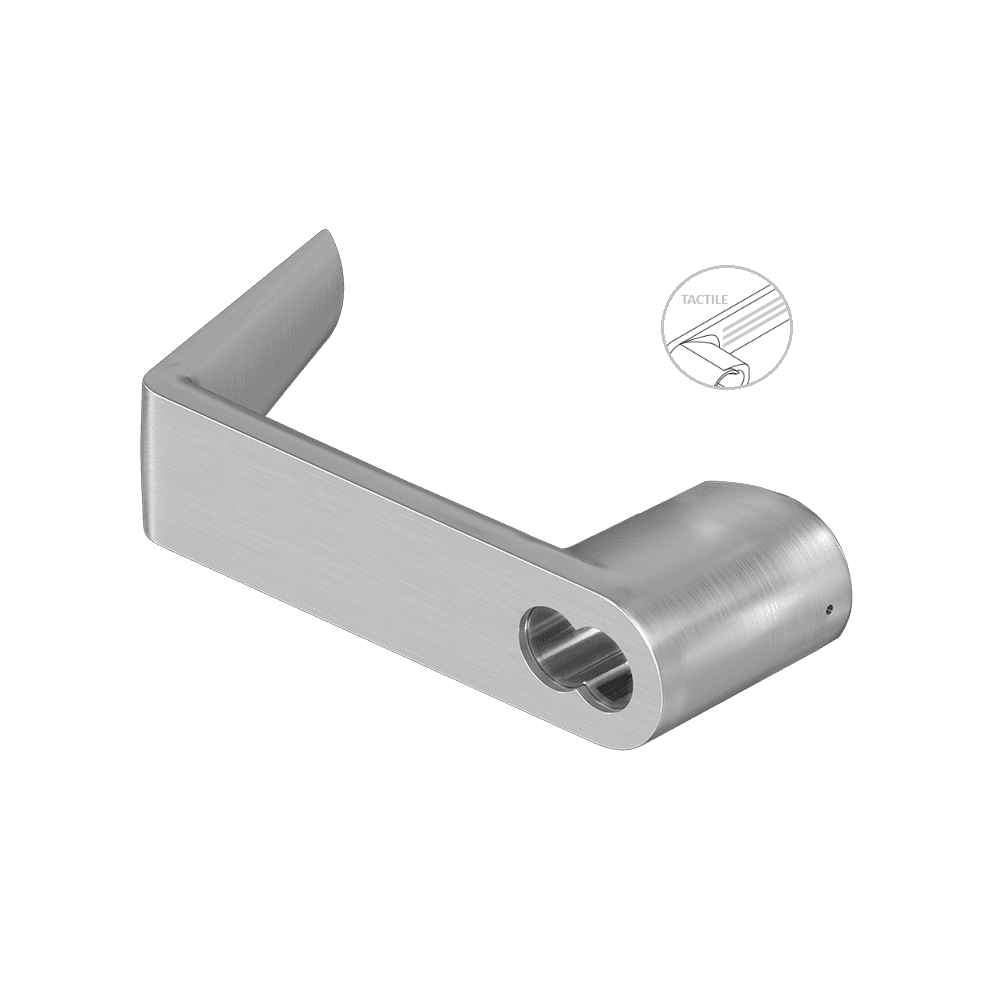

  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 626AM - Satin Chrome, Antimicrobial
    626AM - Satin Chrome, Antimicrobial
    Not available

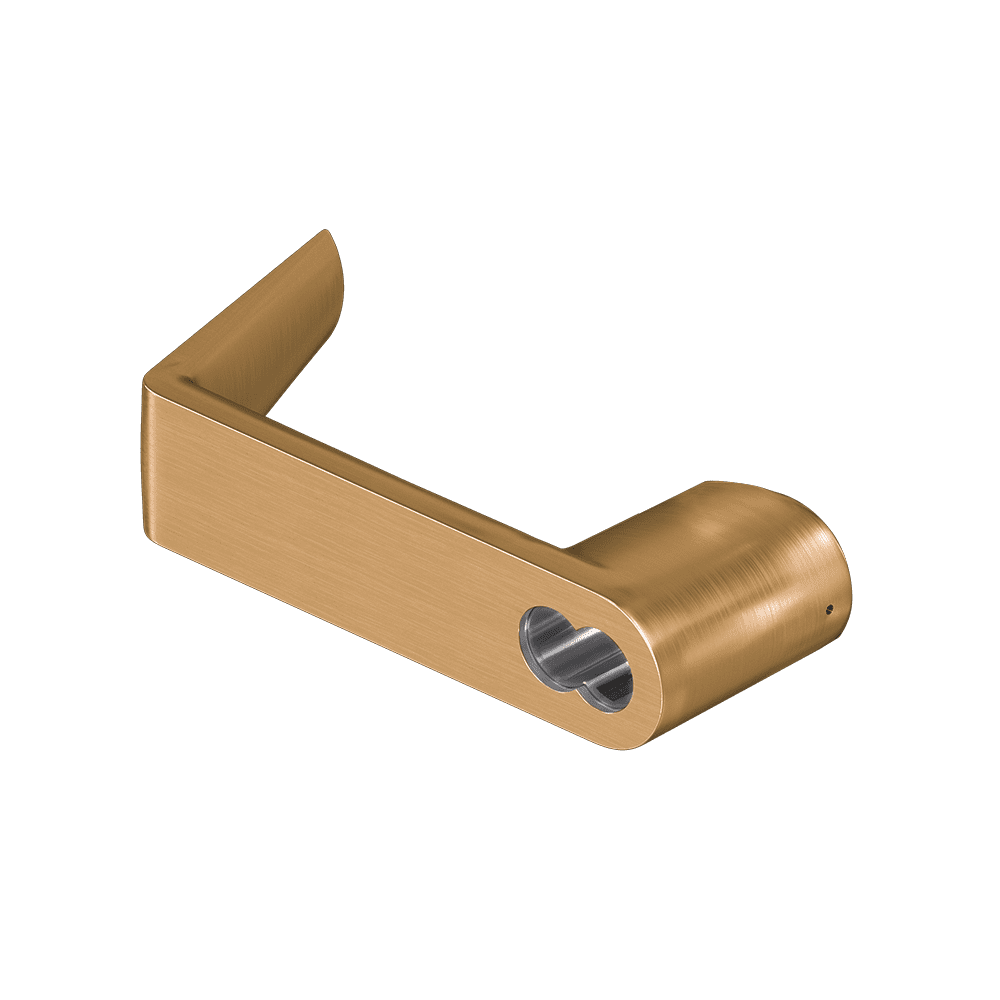

  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available

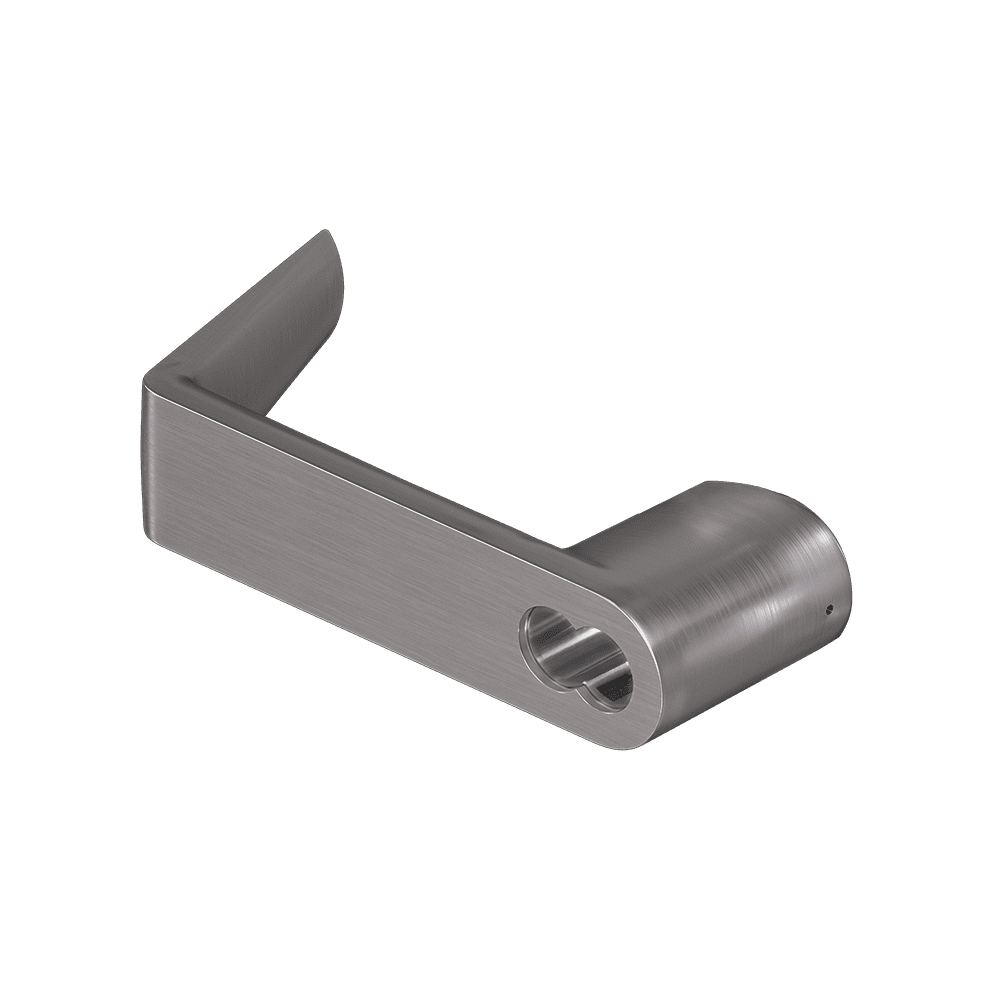

  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available

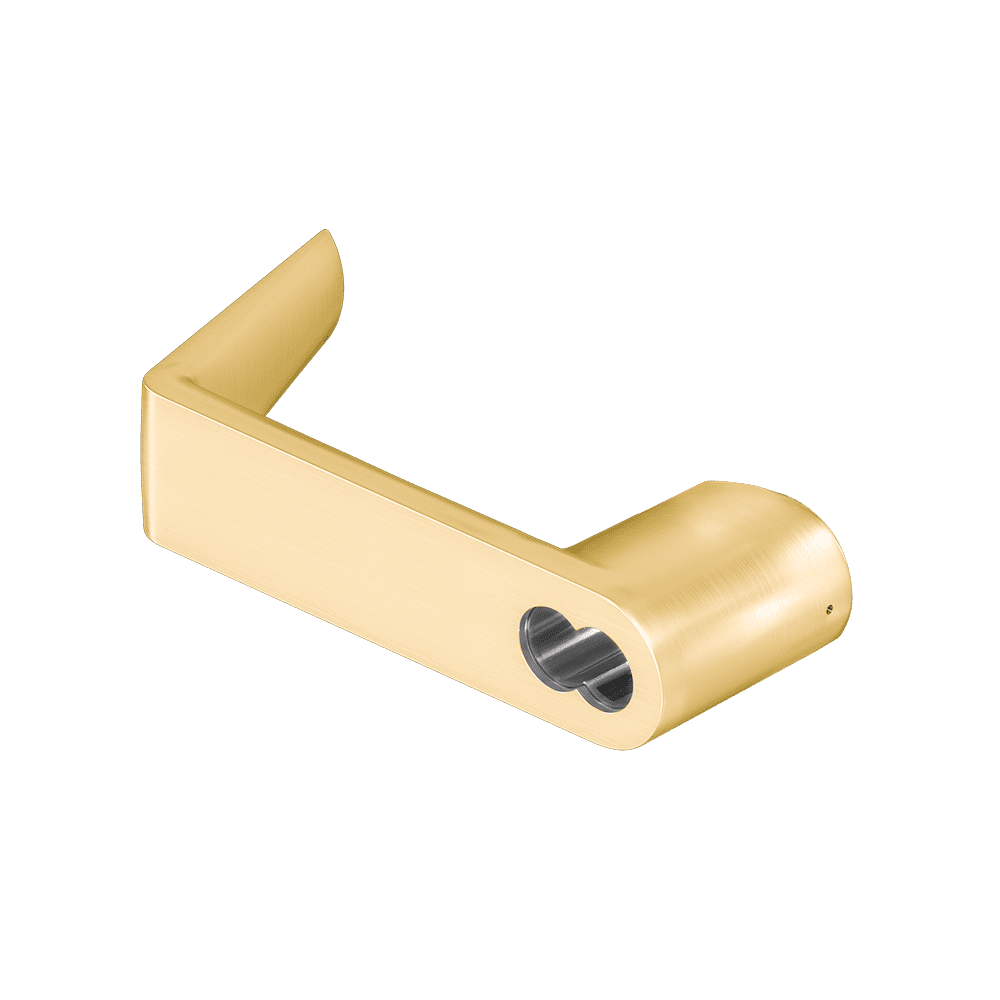

  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available

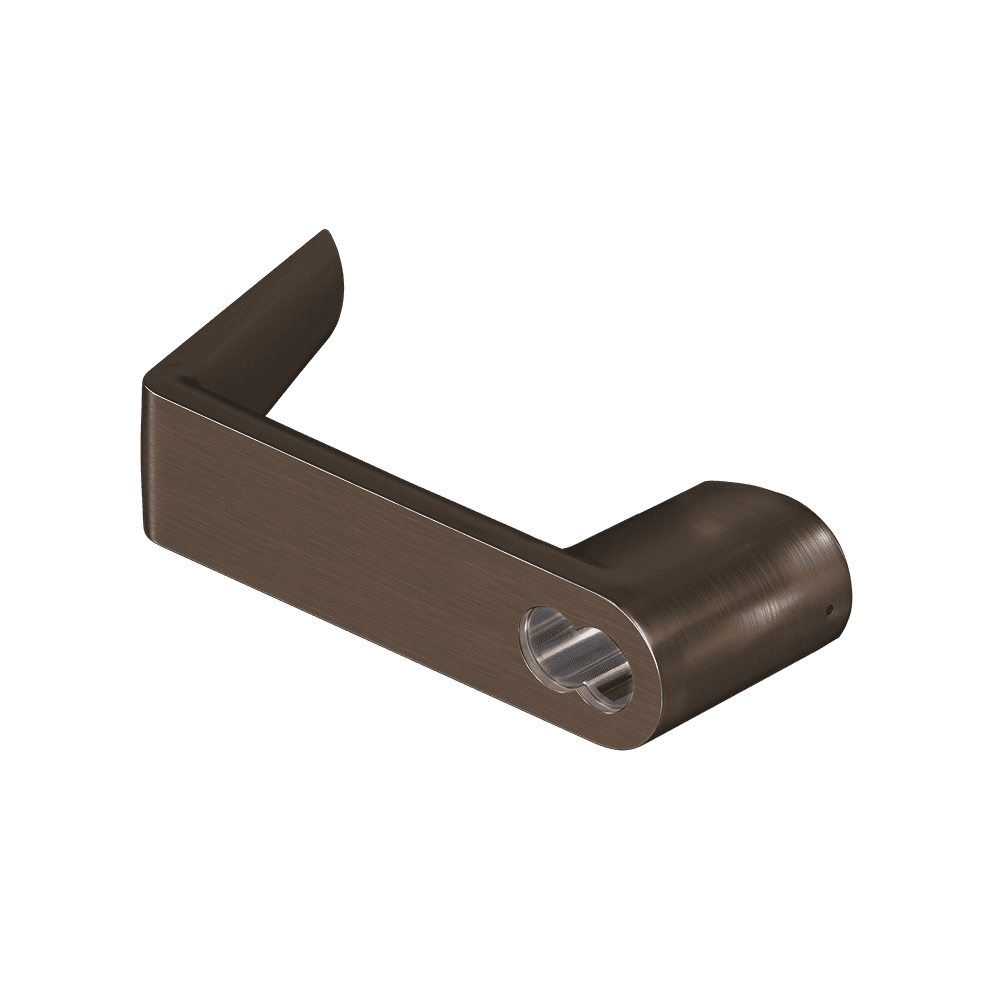

  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available

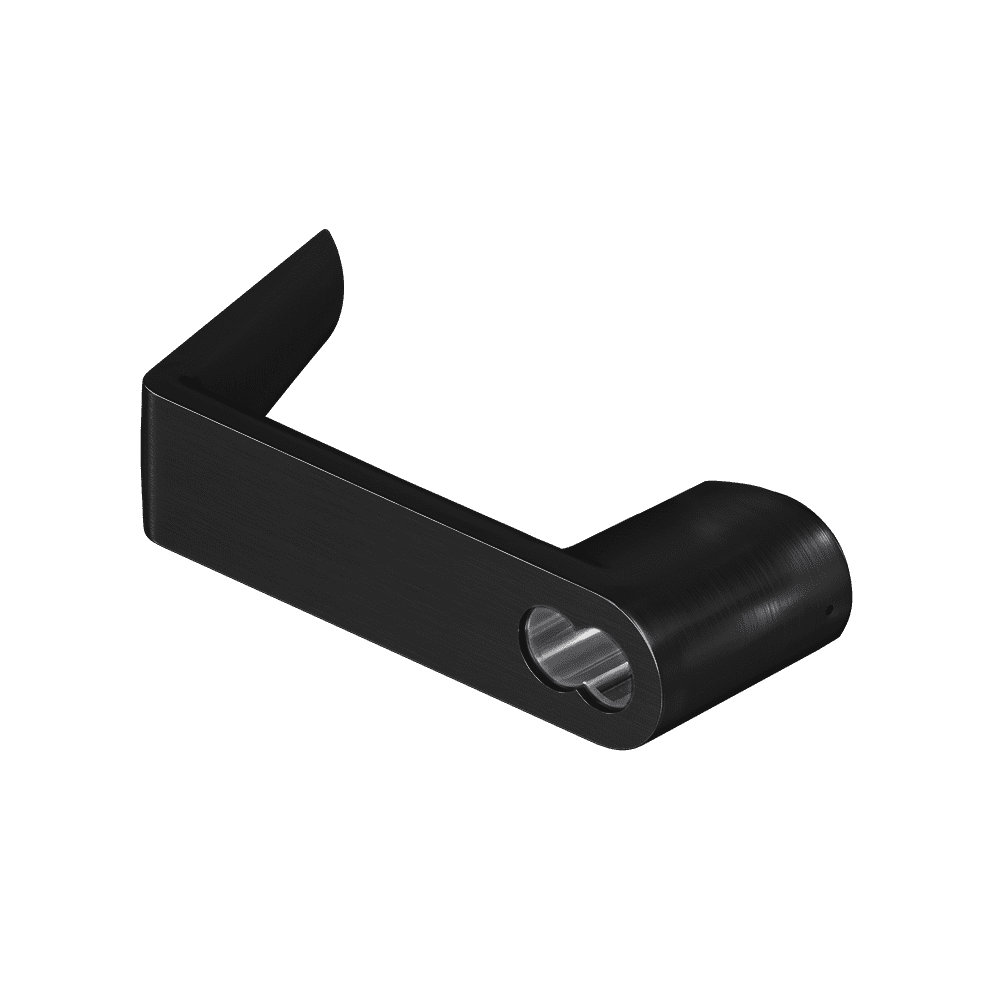

  • 622 / US19 - Matte Black
    622 / US19 - Matte Black
    Not available

The Schlage 03-280-8RO is the OEM Rhodes Tactile Lever designed for Falcon 7-pin Key-in-Lever (KIL / FA7) cylinder applications, for the Schlage AD Series and CO Series cylindrical locks, documented in two official Schlage Service Manuals: AD Series and CO Series. Per the SecurityParts.com product page: "This replacement lever restores the original appearance and functionality of compatible AD Series and CO Series locks while allowing installation with a compatible Falcon 7-pin KIL cylinder." Supplied less cylinder. Non-handed. Tactile Rhodes lever profile. Cylindrical Original Part# 23779747.



What the 03-280 Falcon 7-Pin KIL Format Means

The 03-280 prefix identifies levers with factory preparation for the Falcon 7-pin Key-in-Lever (KIL) cylinder, designated FA7. Per the SecurityParts.com product page: "Accommodates Falcon 7-Pin Key-in-Lever (KIL) cylinder insertion and provides manual latch retraction." The Falcon FA7 cylinder is a conventional key-in-lever cylinder with a 7-pin configuration, distinct from standard Schlage KIL cylinders (03-231 prefix), Corbin Russwin KIL cylinders (03-234 prefix), and Sargent KIL cylinders (03-244 prefix). The lever bore is prepared specifically for the Falcon 7-pin KIL cylinder. A compatible Falcon FA7 KIL cylinder must be sourced separately and installed in the field. The cylinder is not included.



AD and CO Series Only: Narrow Compatibility Range

The 03-280-8RO is compatible with AD Series and CO Series electronic locks configured for Falcon 7-pin KIL cylinders. This is a narrower compatibility range than most other lever prefix families in the Schlage catalog. The ALX Series and ND Series are not listed in the formal compatibility section for this product. When replacing a tactile Rhodes lever on a Falcon 7-pin KIL configured lock, confirm the installed lock is an AD Series or CO Series before ordering the 03-280-8RO.



Rhodes Tactile Profile in the Falcon KIL Format

The 03-280-8RO uses the Rhodes lever profile with a tactile surface for hazardous area door identification. The tactile designation identifies doors to restricted or hazardous areas where surface feedback on the outside lever handle is required. The 03-280-8RO provides this tactile function alongside Falcon 7-pin KIL cylinder compatibility on AD and CO Series electronic access control locks. Per the product page, the application is confirmed as "Replacement Falcon Prep Exterior Lever."



Legacy Part Number and Ordering

The cylindrical application legacy part number confirmed on the SecurityParts.com product page is 23779747. For mortise lock and exit device application legacy references, contact SecurityParts.com for confirmation. Finish must be specified at time of order. Contact SecurityParts.com for current finish availability on this item. The Falcon 7-pin KIL cylinder is not included and must be ordered separately.

SecurityParts stocks OEM Schlage AD Series and CO Series lever components. Free shipping on orders over $300.

$321.00
$288.90
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 03-280-8RO?
The Schlage 03-280-8RO is a genuine OEM Rhodes-style tactile exterior lever for compatible Schlage commercial electronic locks.
Does this part include a cylinder?
No. The lever is supplied less cylinder. A compatible Falcon Key-in-Lever (KIL), LD FA7 (7-pin) cylinder is required and sold separately.
What cylinder configuration is this lever designed for?
It is designed for 7-pin Key-in-Lever (KIL) cylinder configurations.
Is this a genuine Schlage OEM replacement part?
Yes. It is a genuine Schlage OEM replacement part.
