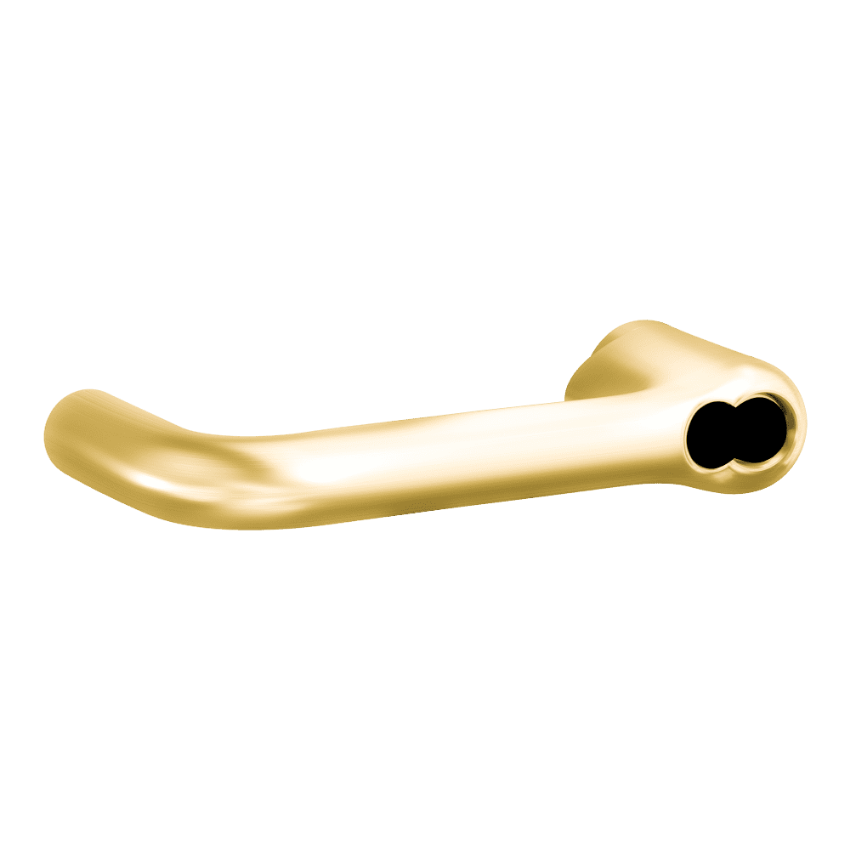

Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 605 Bright Brass
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 606 Satin Brass
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 612 Satin Bronze

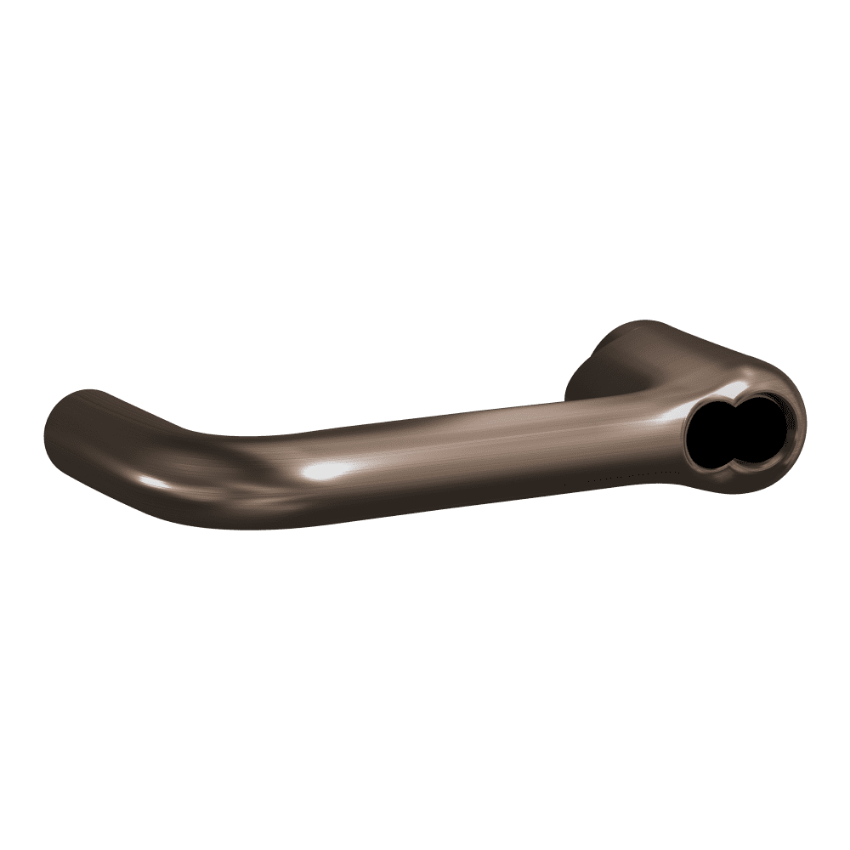

Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 613 Oil Rubbed Bronze
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 643E Aged Bronze
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 619 Satin Nickel
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 622 Matte Black
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 625 Bright Chrome
Dynamic Image
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 626 Satin Chrome
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 605 Bright Brass
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 606 Satin Brass
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 612 Satin Bronze
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 613 Oil Rubbed Bronze
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 643E Aged Bronze
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 619 Satin Nickel
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 622 Matte Black
Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core 625 Bright Chrome

Schlage

SKU: 03-277-8TR

Schlage 03-277-8TR Tubular Tactile Lever Sargent FSIC Less Core

Available (3 - 4 Weeks)

The Schlage 03-277-TR (Original Part# 03-077-8TR) Tubular Tactile Lever is an OEM replacement outside lever designed for Schlage locks using a Sargent Full-Size Interchangeable Core (FSIC). This tactile lever is supplied less core for applications requiring a separate Sargent FSIC core.
*

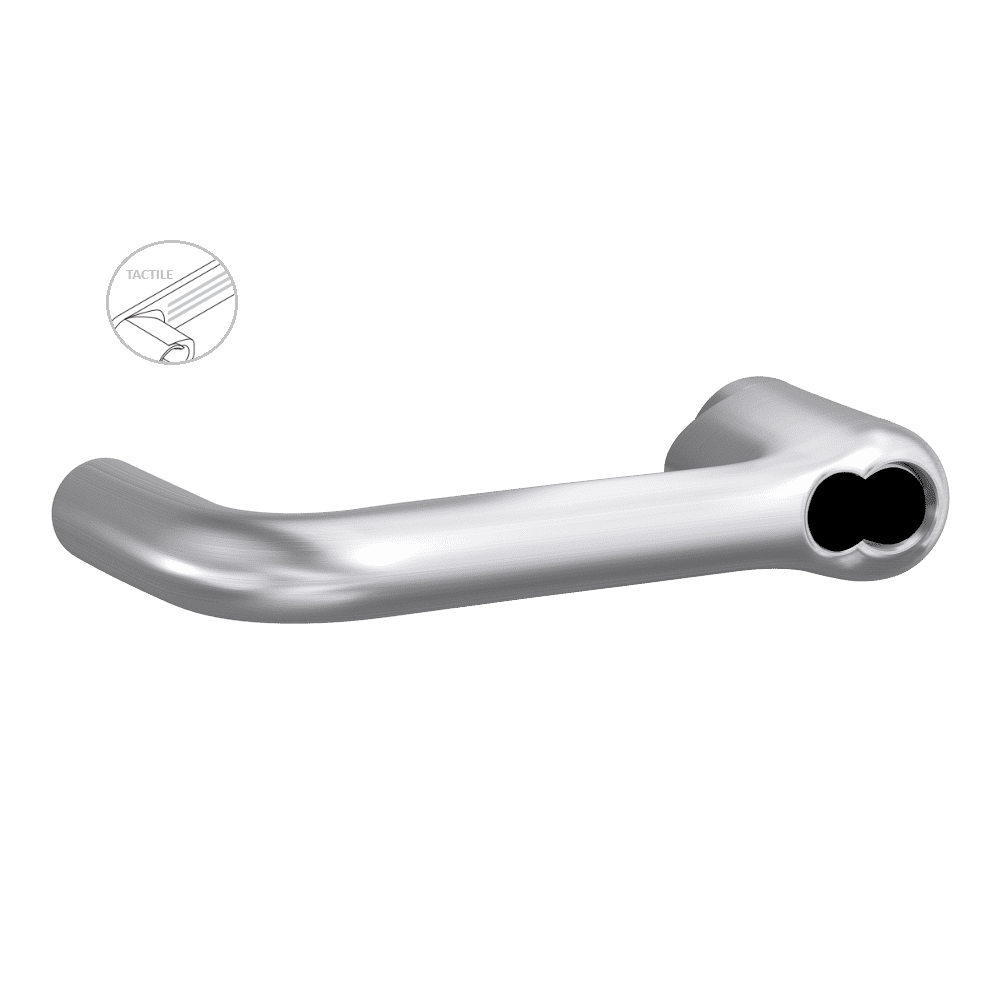

  • 626 / US26D - Satin Chrome
    626 / US26D - Satin Chrome
    Not available
  • 626AM - Satin Chrome, Antimicrobial
    626AM - Satin Chrome, Antimicrobial
    Not available

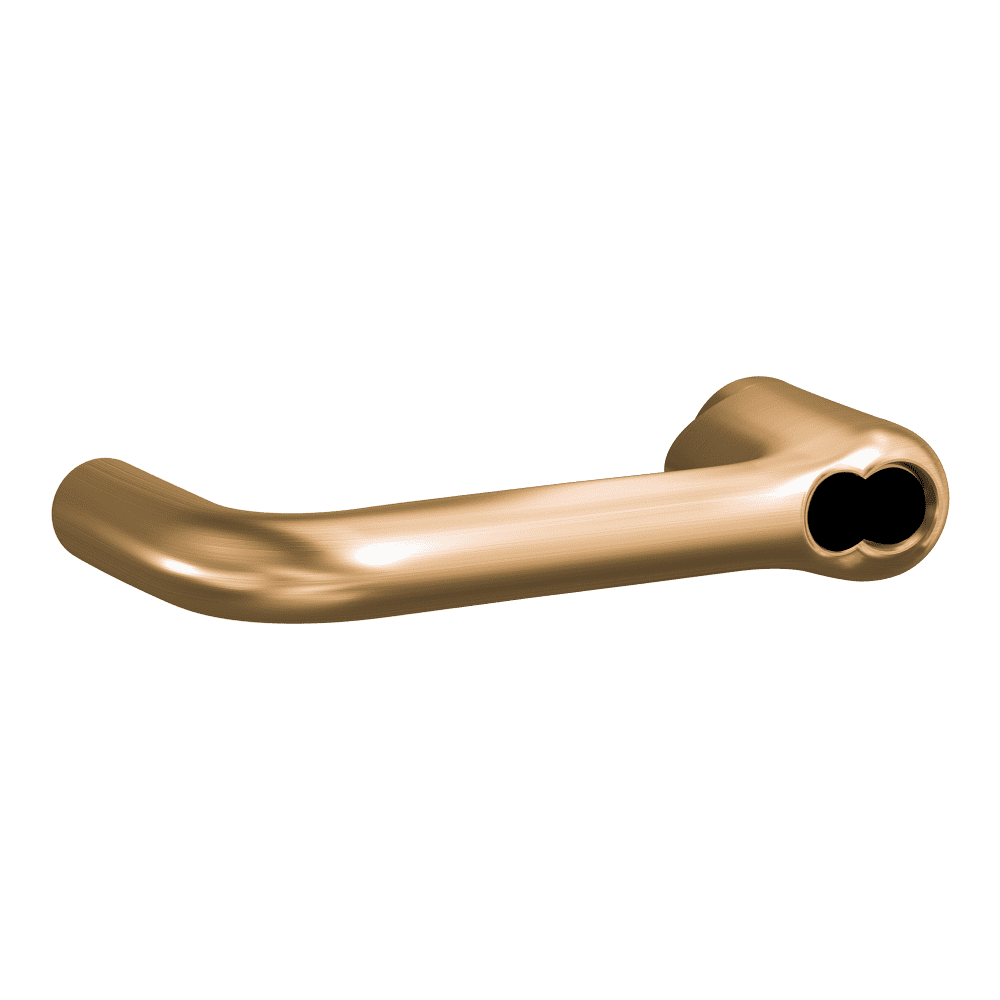

  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 625 / US26 - Bright Chrome
    625 / US26 - Bright Chrome
    Not available

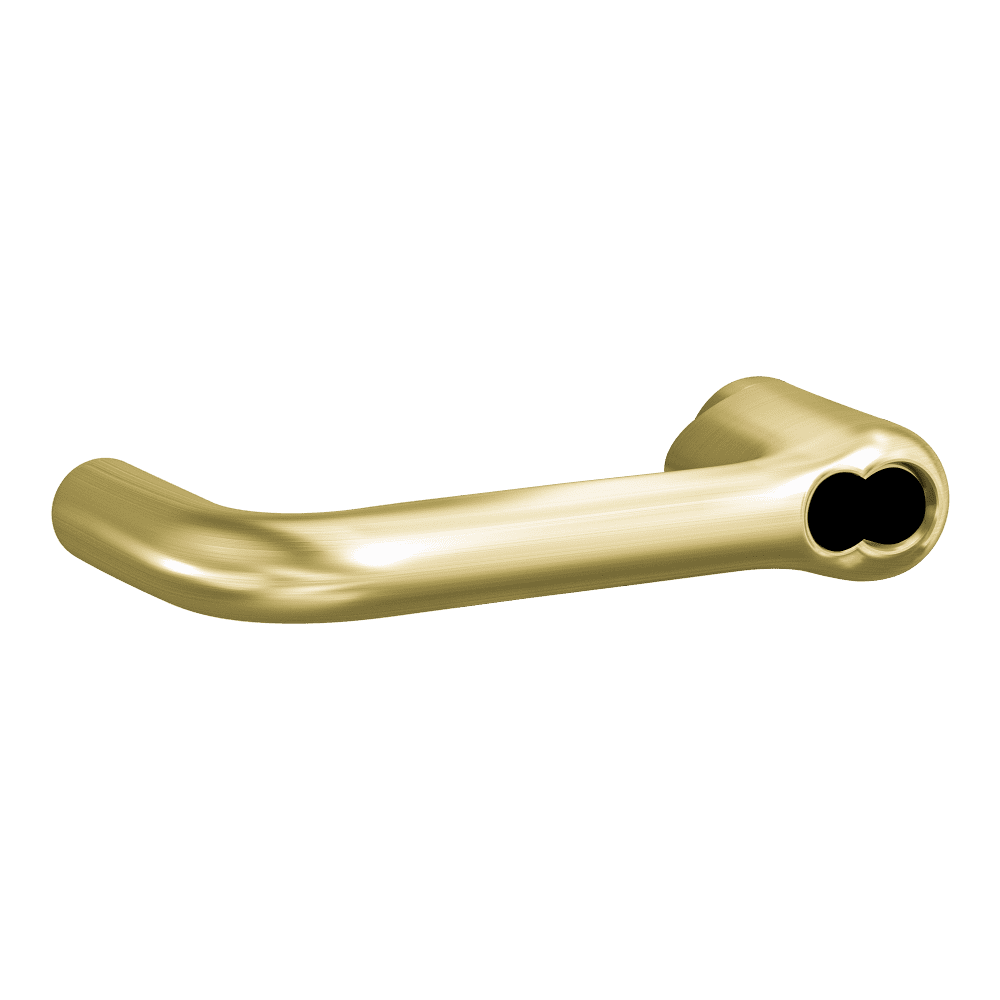

  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available

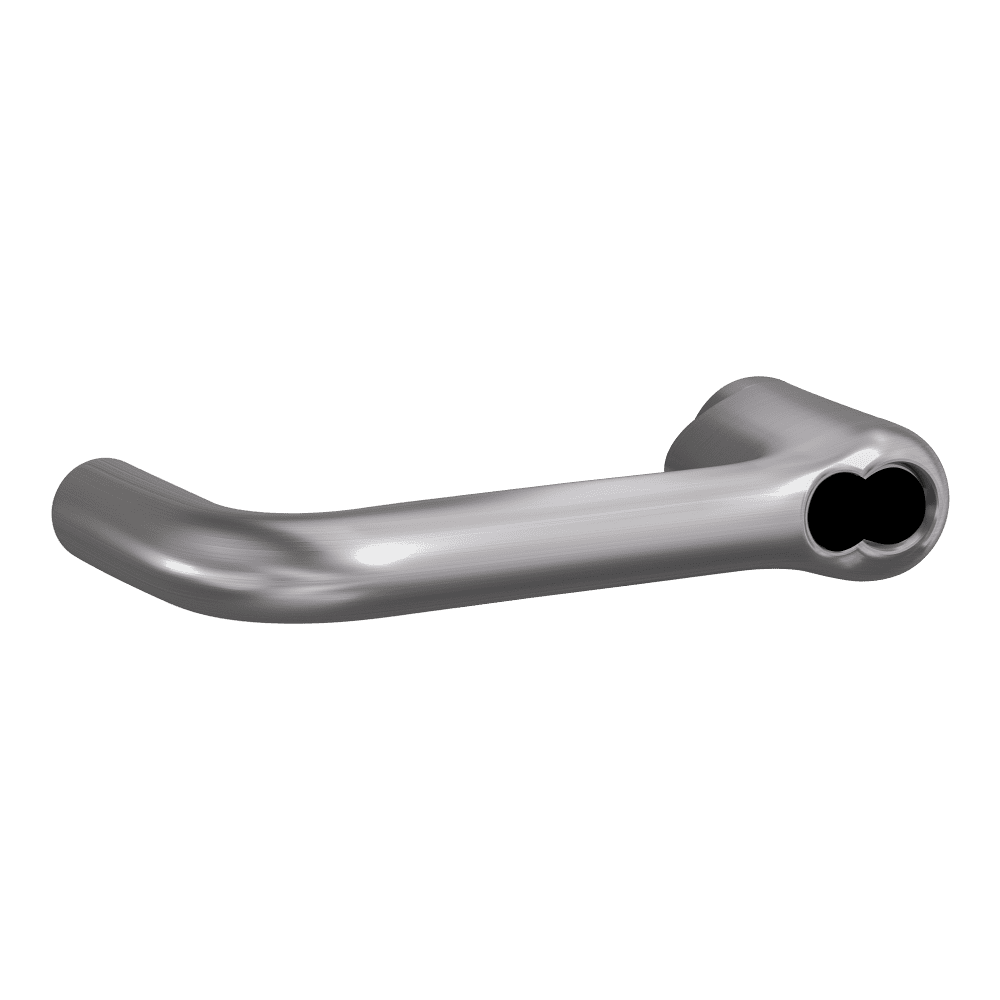

  • 619 / US15 - Satin Nickel
    619 / US15 - Satin Nickel
    Not available

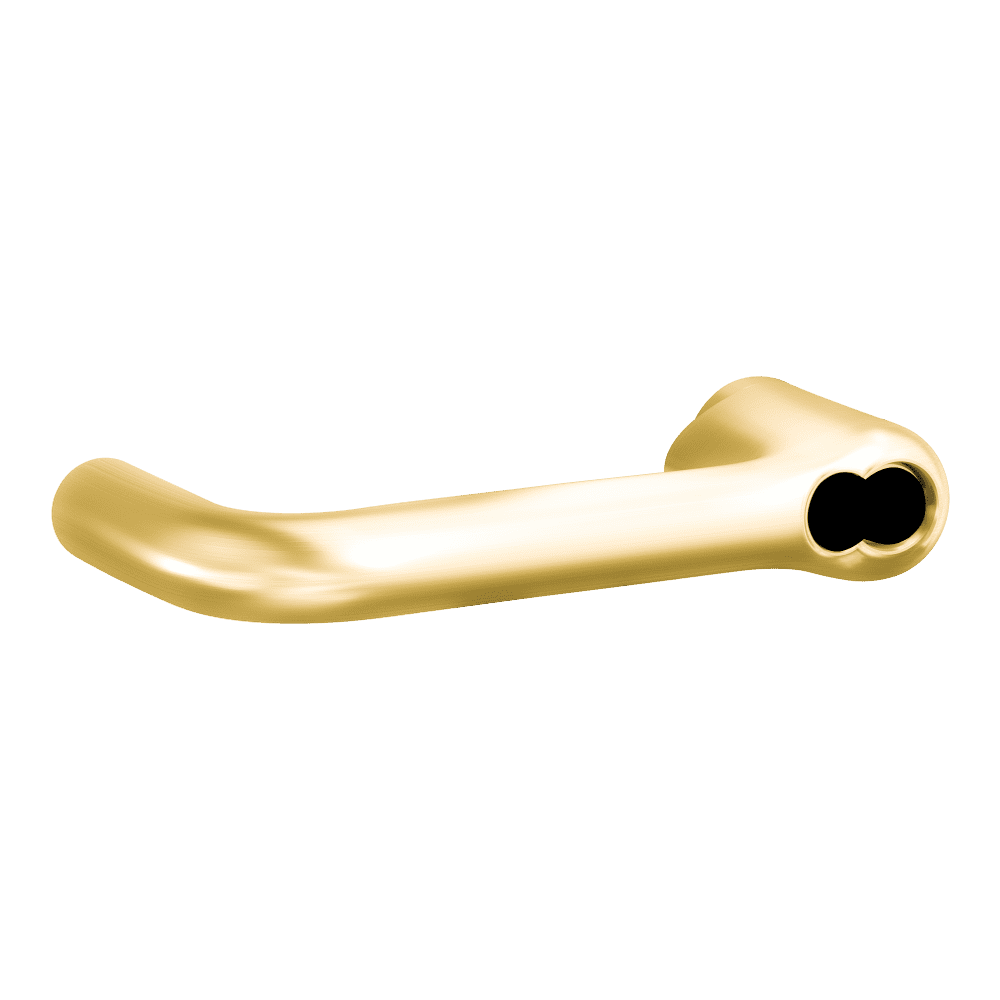

  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available

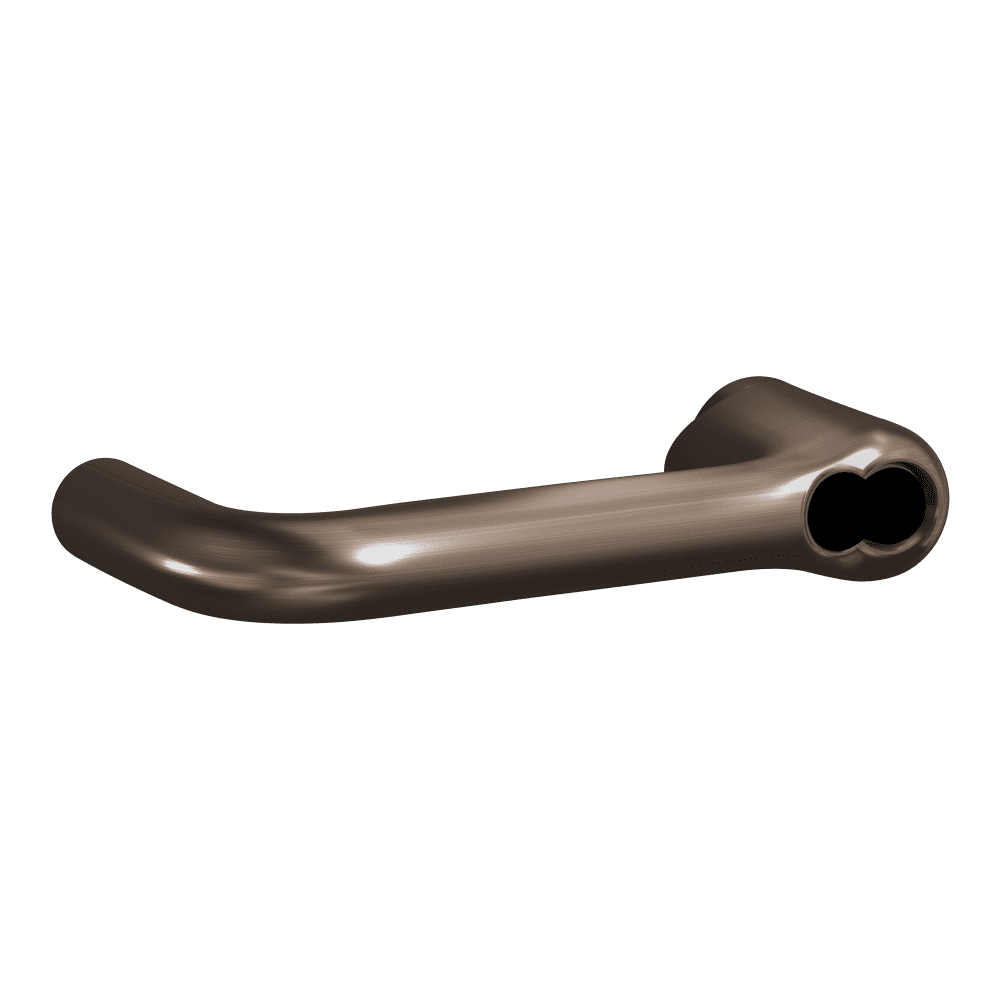

  • 643E - Aged Bronze
    643E - Aged Bronze
    Not available

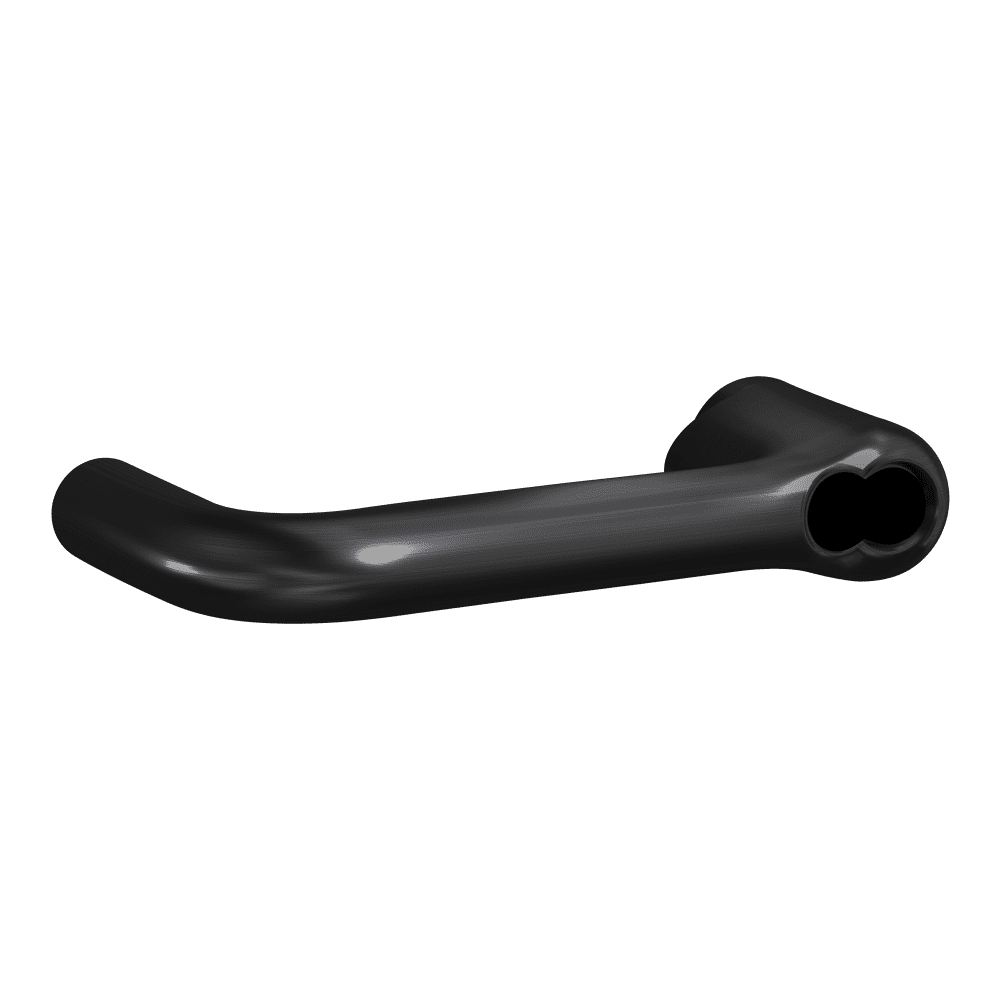

  • 622 / US19 - Matte Black
    622 / US19 - Matte Black
    Not available

Schlage 03-277-8TR is a genuine OEM Tubular-style exterior lever with a tactile warning grip, less cylinder, designed for Schlage commercial electronic and mechanical locksets utilizing a Sargent Full Size Interchangeable Core (FSIC / J-SAR) 6-pin cylinder. This replacement lever restores the original appearance and functionality of compatible AD Series, CO Series, ALX Series and ND Series locks configured for Sargent large format interchangeable cores. The lever features knurled tactile grooves on the back of the handle to meet ADA compliance for hazardous or restricted areas. It is supplied less core, allowing instant integration with an existing 6-pin Sargent FSIC master key system.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 03-277-8TR (Original Part# 03-077-8TR)
Lever Design: Tactile Athens
Product Type: Full Size Interchangeable Core (FSIC) Lever Trim (Less Cylinder)
Handing: Non-Handed
Product Series: CO Series / AD Series / ALX / ND Series
Primary Function: Houses Sargent 6-pin FSIC cores for manual latch retraction and tactile ADA alerts.
Application: Exterior Sargent FSIC core-prep tactile replacement lever
OEM Part: Yes

Compatibility

  • AD Series
  • CO Series
  • ALX Series
  • ND Series
$492.00
$300.12
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 03-277-8TR?
It is a genuine Schlage OEM Tubular tactile replacement lever prepared for a Sargent Full-Size Interchangeable Core (FSIC), supplied less core
Can I use a standard Schlage Key-in-Lever (KIL) cylinder or Schlage LFIC core inside this lever?
No. This lever will not accept standard Key-in-Lever cylinders or Schlage-branded interchangeable cores. It is uniquely machined to seat the specific physical sizing and locking lug paths of a Sargent FSIC system.
Is the Sargent interchangeable core included with the purchase of this part?
No. This is an OEM replacement exterior lever trim piece sold "Less Core" (LC). The Sargent FSIC (Full-Size Interchangeable Core) cylinder must be purchased separately.
What commercial lock series will this replacement Athens lever fit?
It is compatible across Schlage's premium heavy-duty mechanical and electronic platforms, including ND Series cylindrical locks, ALX Series modular locks, as well as AD and CO Series electronic access control systems.
Is this an OEM Schlage replacement part?
Yes. It is a genuine Schlage OEM replacement part.
