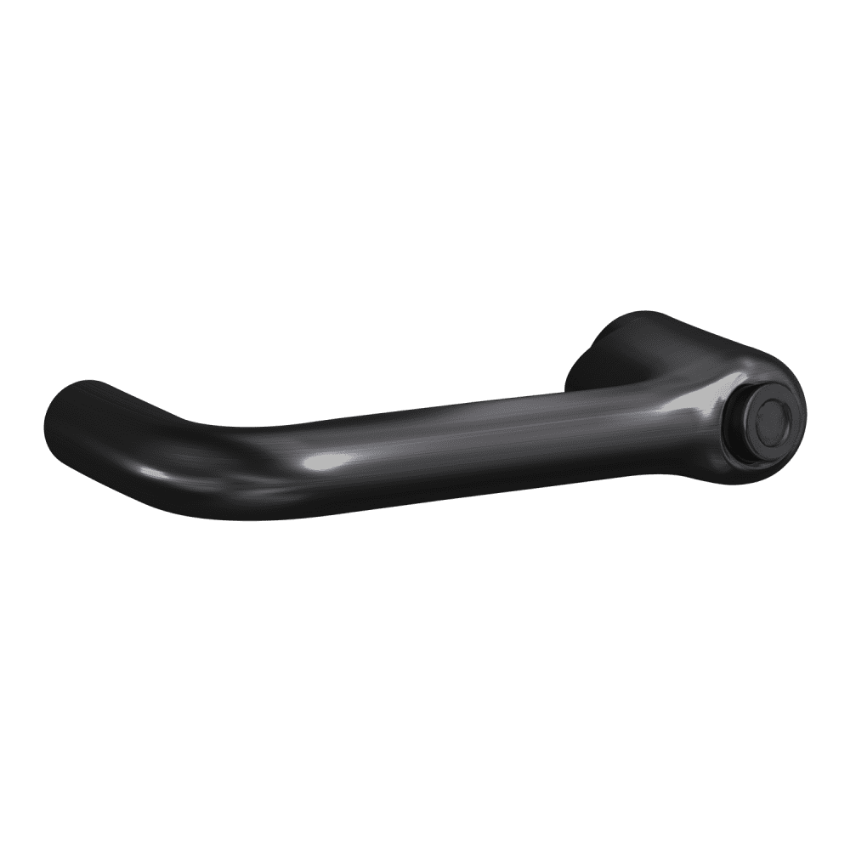

The Schlage 03-233-8TR is the OEM Tubular Tactile Button Lever for the Schlage AD Series, ALX Series, CO Series, and ND Series cylindrical locks, documented in the official Schlage ALX Series and ND Series Service Manuals. It is the Tubular lever profile with tactile surface in the 03-233 button lever format. The lever hub has a push button opening for the inside push button mechanism used at privacy, entrance, office, and selected Vandlgard function inside trim positions. Non-handed.

Tubular Tactile Button Lever: The Round Profile in the Button Format

The 03-233-8TR is the fourth and final tactile design in the Schlage 03-233 button lever family, alongside the Athens (03-233-8AT), Rhodes (03-233-8RO), and Sparta (03-233-8SP) tactile button levers. All four use the same button lever format, cover the same function range, and are documented in the same two Service Manuals: ALX Series and ND Series. The only difference between them is the lever profile design.

The Tubular lever uses a uniform round cylindrical rod handle that is visually distinct from every other design in the Schlage ND and ALX Series lever catalog. Athens, Rhodes, Sparta, and Omega levers all use shaped handles with profiles that vary along the shank. The Tubular lever maintains a consistent circular cross-section from the hub to the handle tip. The tactile surface on the 03-233-8TR wraps around the full circumference of the round handle, providing tactile safety feedback from any grip approach angle. When a facility uses Tubular levers as its established profile standard and specific inside button lever positions require the tactile designation, the 03-233-8TR maintains visual consistency at those positions.

ND Series and ALX Series Function Coverage

The 03-233-8TR is confirmed in both Trim Assembly and Levers diagram sections for the following functions. ALX Series: ALX40 (Bath/Bedroom Privacy), ALX44S (Hospital Privacy), ALX50 (Entrance/Office), and ALX53 (Entrance).

ND Series: ND30 (Patio), ND40 (Bath/Bedroom Privacy), ND40 IND OS, ND44 (Hospital Privacy), ND44 IND OS, ND45 (Time Out with Vandlgard), ND50 (Entrance/Office), ND50 IND IS, ND52 (Keyed Privacy), ND52 IND OS, ND53 (Entrance), ND53 IND IS, ND55 (Entrance with Automatic Unlocking), ND55 IND OS, ND73 (Entrance), ND73 IND OS, ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, and ND97 (Vandlgard Corridor). Compatible with AD, ALX, CO, and ND Series per the SecurityParts.com product page.

Rose Pairing and Finishes

The Tubular lever design uses the 03-042-RHO (Rhodes Rose) as its inside and outside rose, as confirmed in the official Schlage ALX Series Service Manual. The 03-042-RHO is the correct rose for all Schlage ND and ALX Series lever designs except the Omega. When ordering a complete Tubular Tactile Button Lever inside trim assembly, the 03-042-RHO rose must be ordered separately in the matching finish.

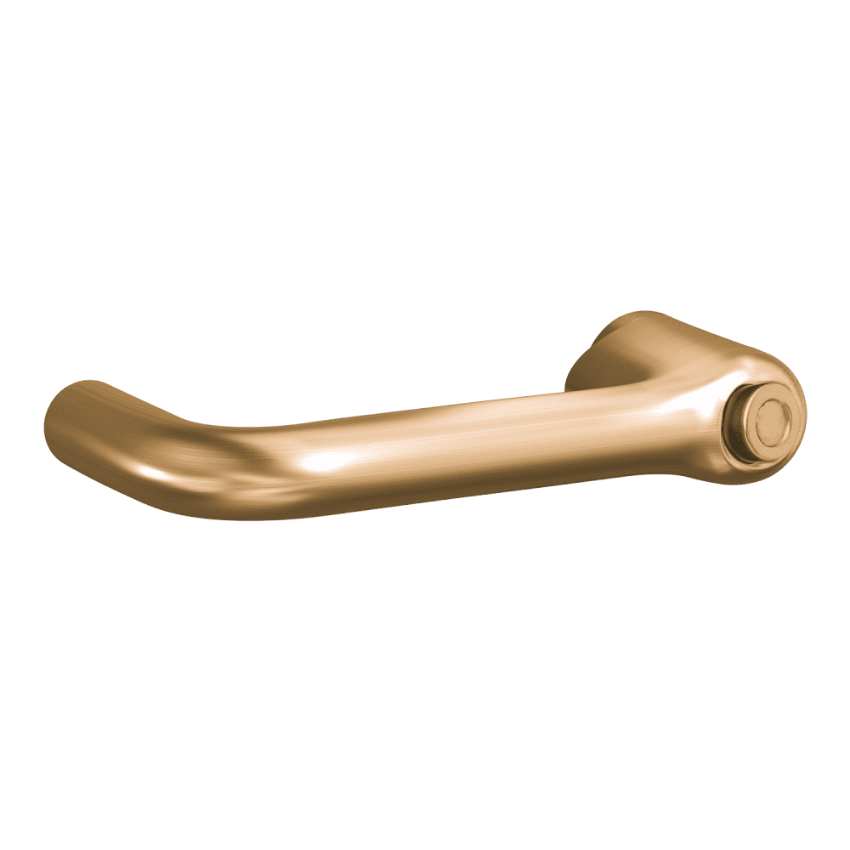

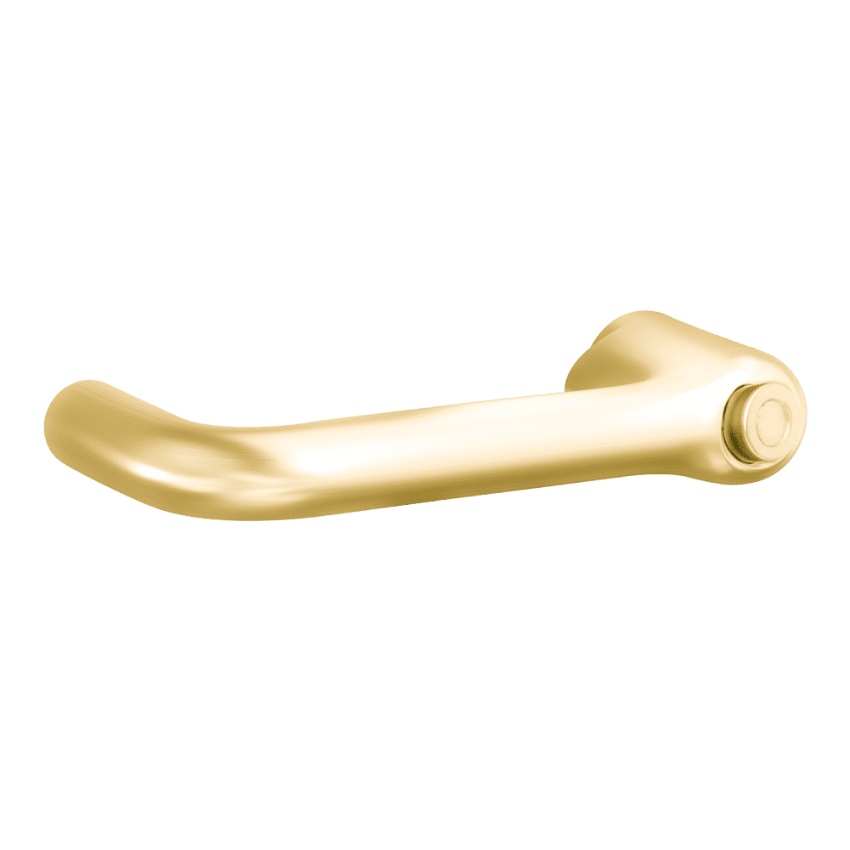

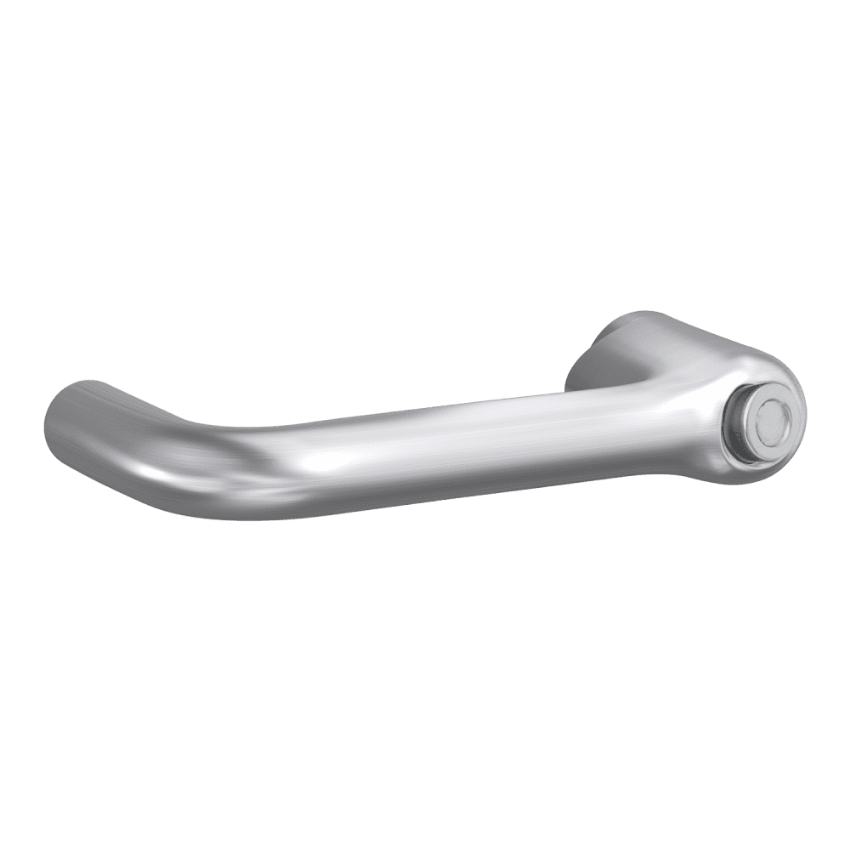

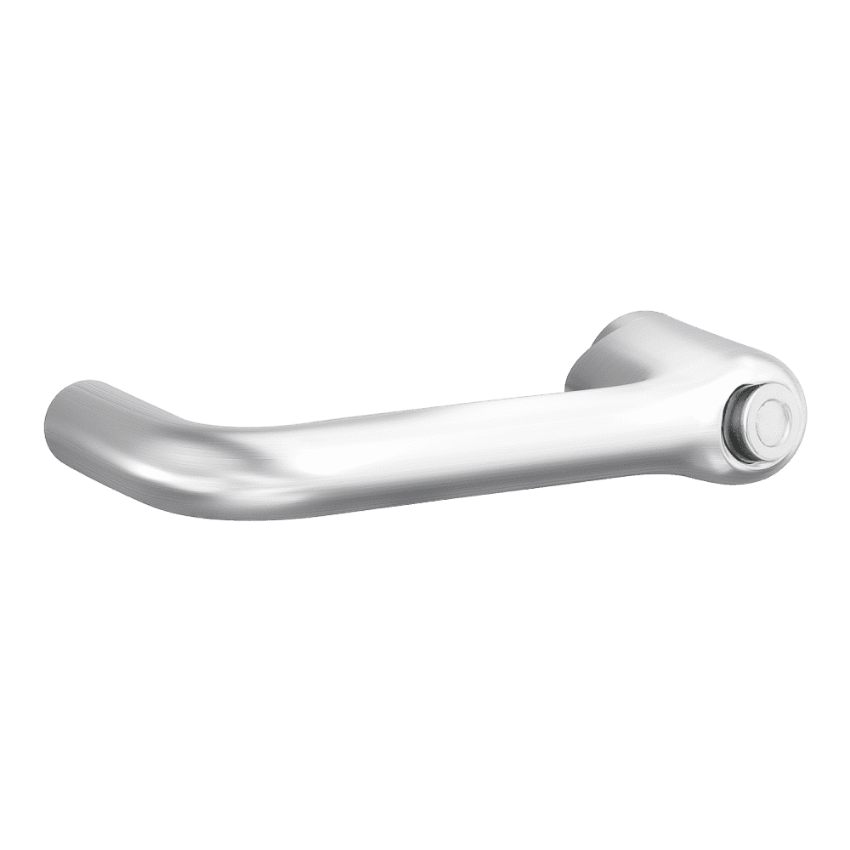

Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order.
