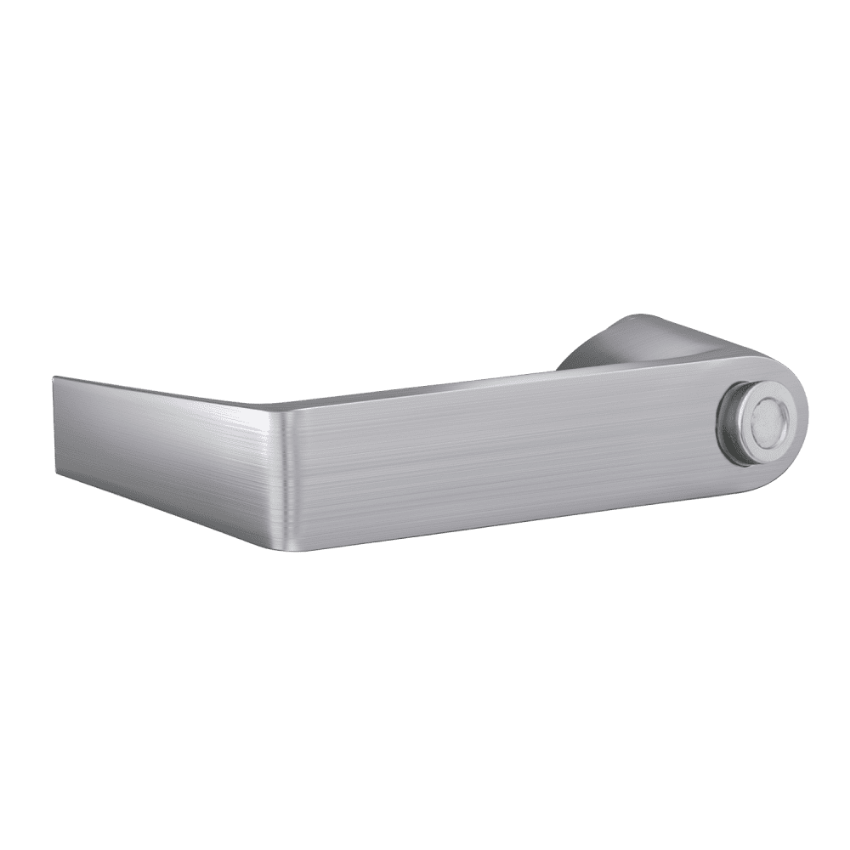

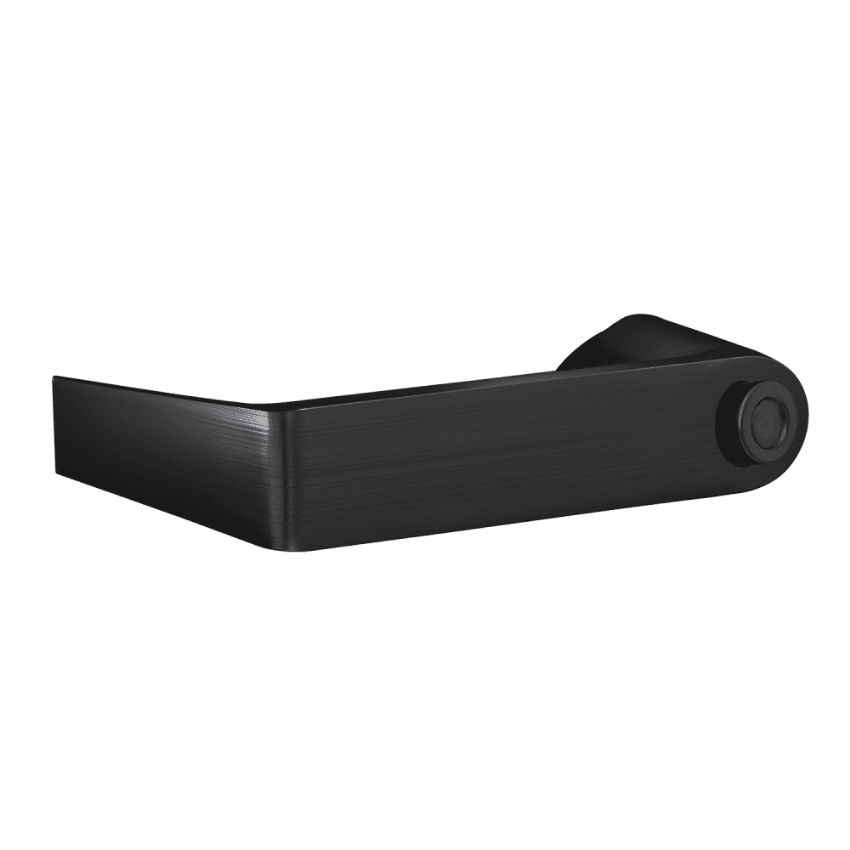

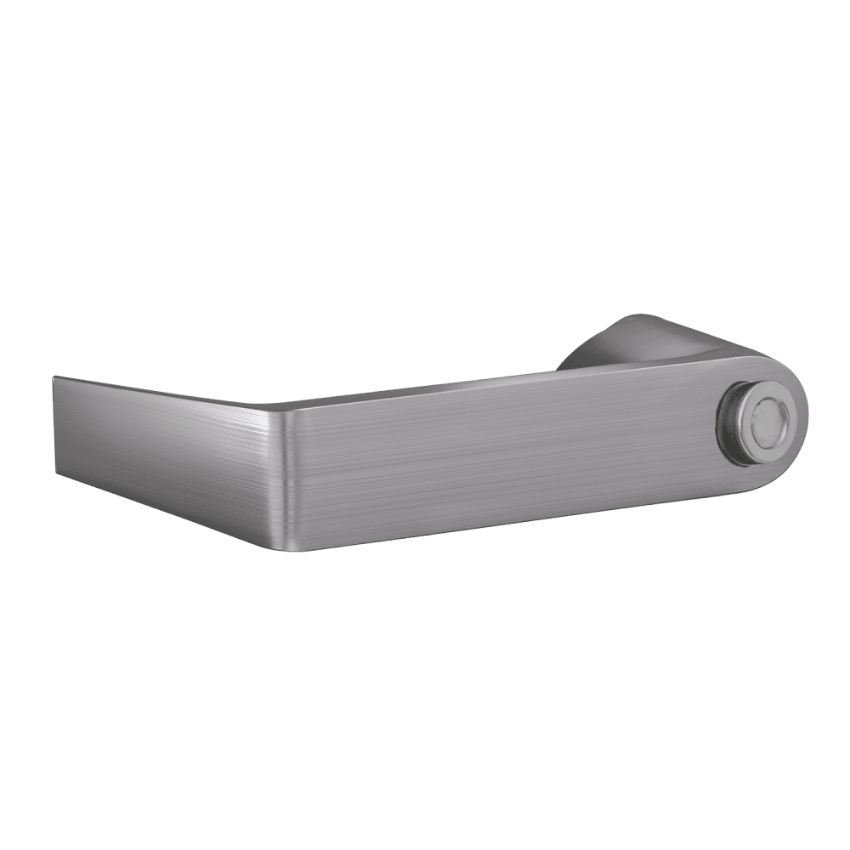

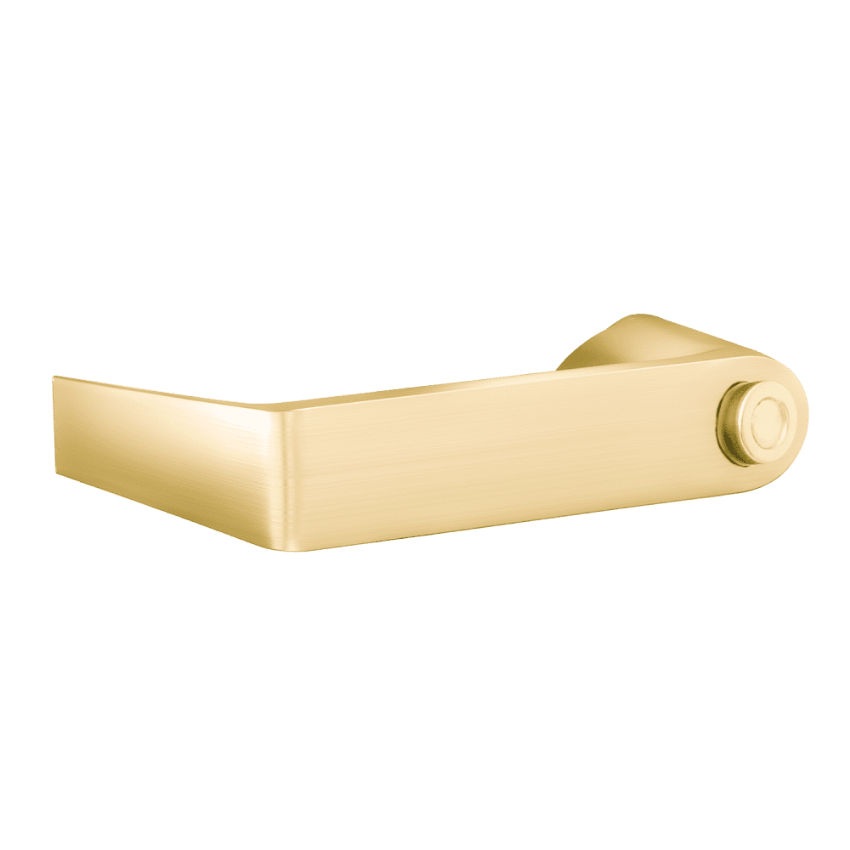

The Schlage 03-233-8RO is the OEM Rhodes Tactile Button Lever for the Schlage AD Series, ALX Series, CO Series, and ND Series cylindrical locks, documented in the official Schlage ALX Series and ND Series Service Manuals. It is the Rhodes lever profile with tactile surface in the 03-233 button lever format. The lever hub has a push button opening for the inside push button mechanism. Non-handed. Available (3-4 weeks).

Rhodes Tactile Button Lever: Profile and Application

The 03-233-8RO and the 03-233-8AT (Athens Tactile Button Lever) are both tactile button levers in the 03-233 format and cover the same range of ND Series and ALX Series inside trim positions. The only difference between them is the lever profile design. The 03-233-8RO uses the Rhodes lever design and the 03-233-8AT uses the Athens lever design. When a building project has established the Rhodes lever as its standard profile and specific inside trim positions at button-function doors require the tactile designation, the 03-233-8RO is the correct selection to maintain visual consistency at those positions.

The button lever format is the inside trim lever for ND Series and ALX Series functions where the inside lever incorporates a push button that controls the locked or unlocked state of the outside lever. The push button opening in the 03-233-8RO lever hub accommodates this mechanism. The 03-042-RHO (Rhodes Rose) is the correct inside and outside rose for the Rhodes lever design and is used at the inside trim position alongside the 03-233-8RO.

Function Coverage: Privacy, Entrance, Office, and Vandlgard

The 03-233-8RO is confirmed in both Trim Assembly and Levers diagram sections for the following functions. ALX Series: ALX40 (Bath/Bedroom Privacy), ALX44S (Hospital Privacy), ALX50 (Entrance/Office), and ALX53 (Entrance).

ND Series: ND30 (Patio), ND40 (Bath/Bedroom Privacy), ND40 IND OS, ND44 (Hospital Privacy), ND44 IND OS, ND45 (Time Out with Vandlgard), ND50 (Entrance/Office), ND50 IND IS, ND52 (Keyed Privacy), ND52 IND OS, ND53 (Entrance), ND53 IND IS, ND55 (Entrance with Automatic Unlocking), ND55 IND OS, ND73 (Entrance), ND73 IND OS, ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, and ND97 (Vandlgard Corridor).

Finishes and Ordering

Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order. The 03-233-8RO is for use with AD, ALX, CO, and ND Series, as confirmed on the SecurityParts.com product page.

SecurityParts stocks OEM Schlage ND Series and ALX Series button lever components. Free shipping on orders over $300.
