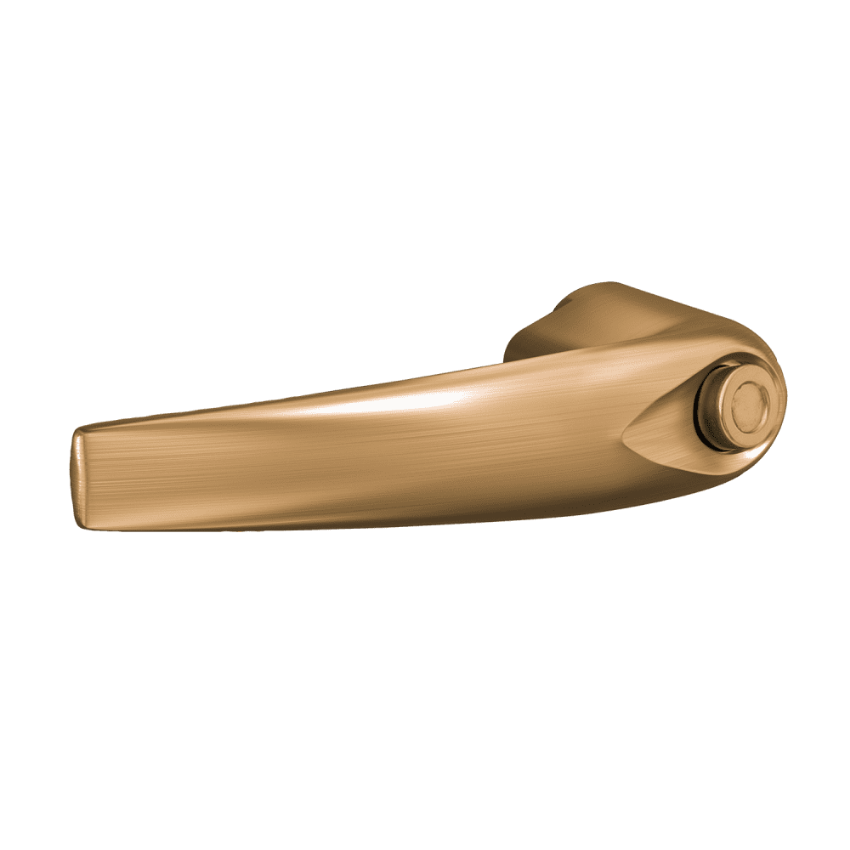

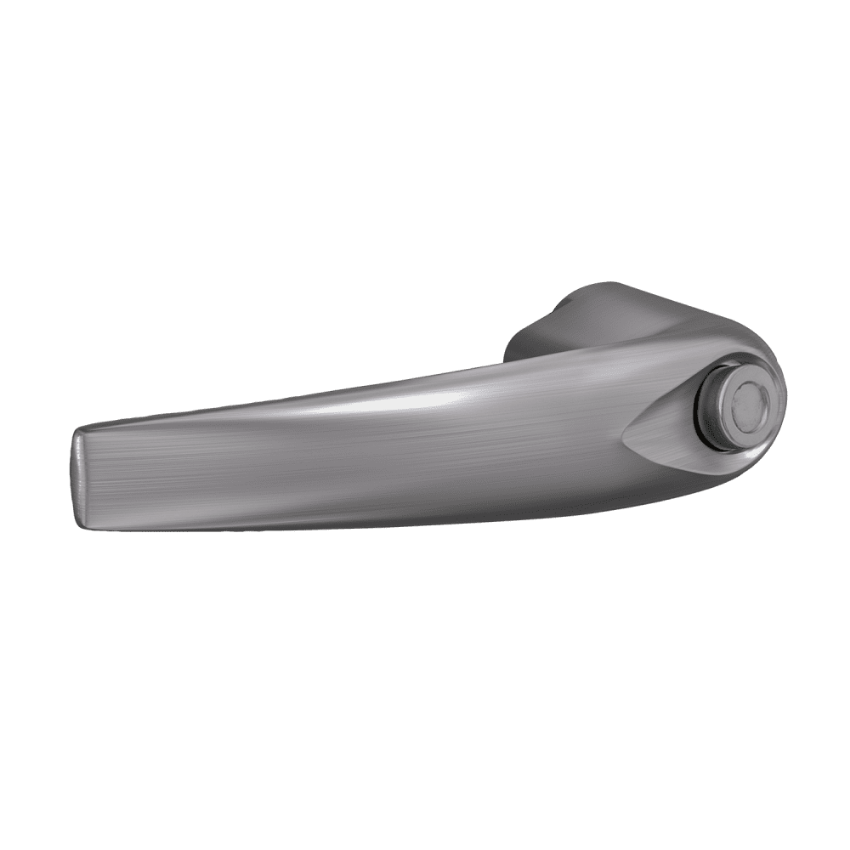

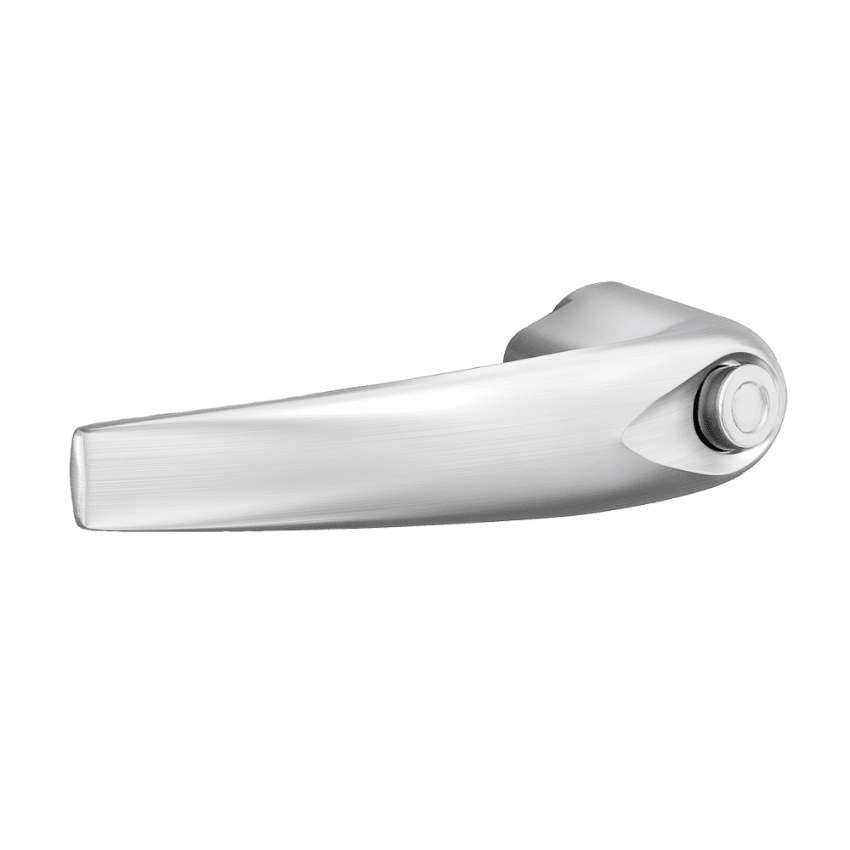

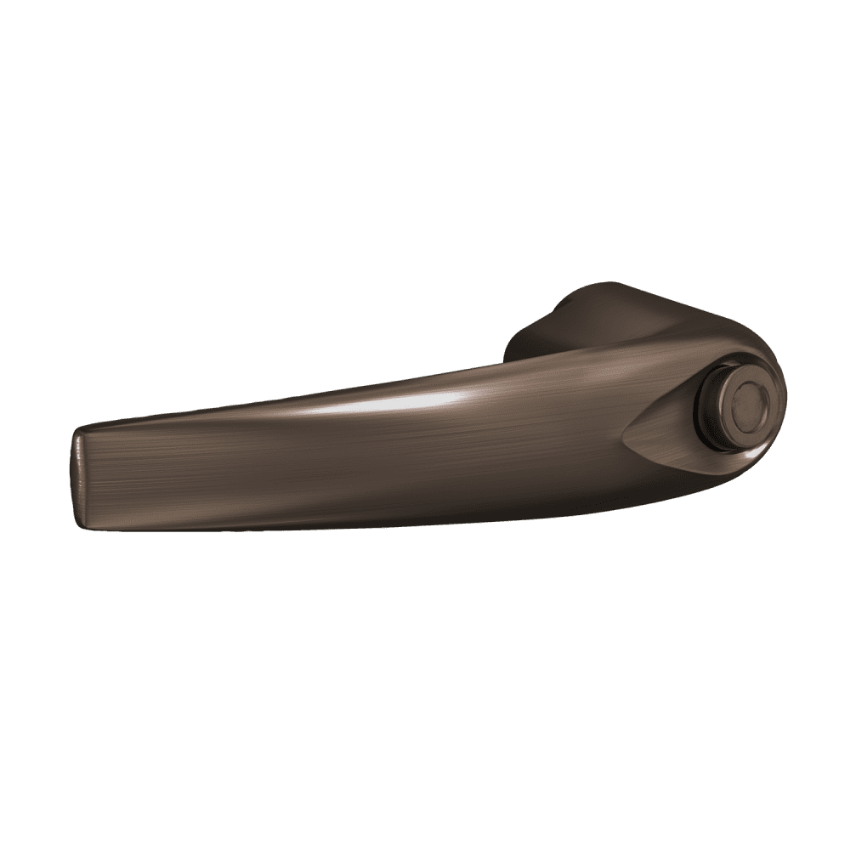

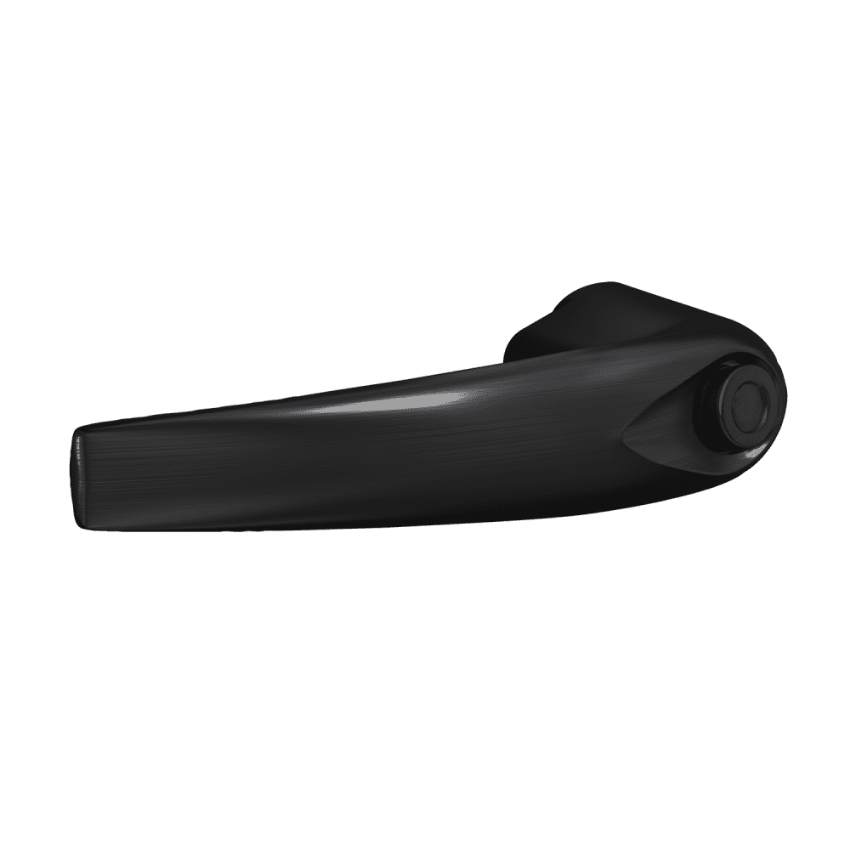

The Schlage 03-233-8AT is the OEM Athens Tactile Button Lever for the Schlage AD Series, ALX Series, CO Series, and ND Series cylindrical locks, documented in the official Schlage ALX Series and ND Series Service Manuals. It is the Athens lever profile with tactile surface in the 03-233 button lever format. The button lever has a push button opening in the lever hub for the inside push button mechanism, distinguishing it from both the closed lever (03-230) and the cylinder-bearing lever formats (03-200, 03-231, 03-232). Non-handed. Available (3-4 weeks).

What the 03-233 Button Lever Format Means

The Schlage ND and ALX Series lever catalog uses five distinct prefix codes to identify the lever hub configuration. The 03-230 prefix identifies closed levers with no openings, used at inside positions on storeroom, classroom, and similar functions. The 03-200, 03-231, and 03-232 prefixes identify SFIC, KIL, and FSIC cylinder-bearing levers for outside trim positions. The 03-233 prefix identifies button levers, which have a push button hole in the lever hub rather than a cylinder bore or closed hub.

The button lever is the inside trim lever for ND Series and ALX Series functions where the inside lever incorporates a push button that controls the locked or unlocked state of the outside lever. When the inside push button is pressed, it engages the locking mechanism and prevents the outside lever from retracting the latch bolt. The 03-233-8AT is the correct inside lever for functions that use this push button mechanism, such as privacy, entrance/office, and keyed privacy functions. A closed lever (03-230) cannot accommodate the push button mechanism and must not be substituted at a button lever position.

Broad ND Series and ALX Series Function Coverage

The 03-233-8AT covers a significantly wider range of functions than the Vandlgard-only tactile SFIC and FSIC levers. It is confirmed in both the Trim Assembly and Levers diagram sections across the following functions.

ALX Series functions: ALX40 (Bath/Bedroom Privacy), ALX44S (Hospital Privacy), ALX50 (Entrance/Office), and ALX53 (Entrance).

ND Series functions: ND30 (Patio), ND40 (Bath/Bedroom Privacy), ND40 IND OS, ND44 (Hospital Privacy), ND44 IND OS, ND45 (Time Out with Vandlgard), ND50 (Entrance/Office), ND50 IND IS, ND52 (Keyed Privacy), ND52 IND OS, ND53 (Entrance), ND53 IND IS, ND55 (Entrance with Automatic Unlocking), ND55 IND OS, ND73 (Entrance), ND73 IND OS, ND85 (Faculty Restroom), ND91 (Vandlgard Entrance/Office), ND91 IND IS, ND92 (Vandlgard Entrance), ND92 IND IS, and ND97 (Vandlgard Corridor).

Tactile Surface and Ordering for the 03-233-8AT

The tactile surface on the Athens lever handle provides safety feedback by touch for hazardous area door identification at inside trim positions where both inside and outside levers are required to carry the tactile designation. The 03-233-8AT is the correct inside button lever when a project specifies Athens Tactile levers and the inside position requires the button format.

Ten finishes are available: 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Powder-Coated Matte Black), 625 (Bright Chrome), 626 (Satin Chrome), 626AM (Satin Chrome Antimicrobial), and 643E (Aged Bronze). Finish must be specified at time of order.

SecurityParts stocks OEM Schlage ND Series and ALX Series button lever components. Free shipping on orders over $300.
