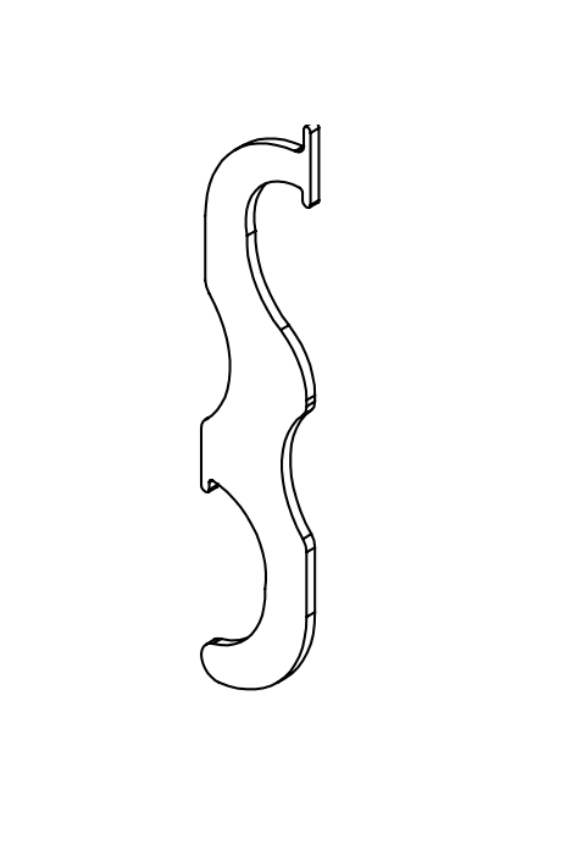

The Schlage 021415 is the OEM Spanner Wrench for D Series knob collar installation and removal and L Series mortise cylinder retaining ring installation and removal. It is confirmed for M Series mortise lock applications per the official Allegion Knowledge Base, which lists the 021415 as "the M lock spanner wrench." Physical dimensions confirmed from Allegion authorized distributor data: 4.33 inches long, 1.18 inches wide, 0.07 inch thick. Schlage Limited 3-Year Mechanical Warranty applies. In stock.

What a Spanner Wrench Is and Why Schlage Locks Require One

A spanner wrench is a tool designed to engage threaded rings or collars that have pin holes or notches in their face rather than flat hexagonal surfaces. Standard wrenches require flat surfaces to grip. Threaded cylinder rings and knob collars in commercial lock hardware use circular profiles with no flat engagement points because any flat surface would either reduce the ring diameter below the structural minimum or create a protrusion that conflicts with the trim housing geometry.

The 021415 has two pins at one end of the wrench body that fit into corresponding holes in the cylinder retaining ring (L Series) or the knob connecting collar (D Series). Inserting the pins and rotating the wrench body applies torque to the ring through the two pin engagement points, tightening or loosening the ring without any contact with the ring face surface. This protects the finish on the ring and the surrounding trim from the marring damage that pliers, channel locks, or improvised tools would cause.

The thin profile of the 021415 - 0.07 inch thick - is not accidental. The cylinder retaining ring in the L Series trim housing and the knob collar in the D Series sit in a shallow recess within the trim assembly. Clearance around the ring is minimal. A thicker tool could not reach the pin holes without being blocked by the surrounding trim material. The 0.07 inch thickness allows the wrench to slip into this recessed area and engage the holes cleanly.

Schlage 021415: D Series and L Series Application Explained

The Schlage D Series is the commercial cylindrical knob lock line. The D Series knob secures to the spindle through a threaded connecting collar. During installation, this collar is tightened down against the knob body. During service or knob replacement, the collar must be loosened to free the knob from the spindle. The 021415 spanner wrench is the correct tool for both operations on the D Series. Attempting to tighten or remove the D Series knob collar without the correct spanner wrench risks damaging the collar finish and distorting the collar engagement holes, making future service increasingly difficult.

In the Schlage L Series mortise lock, the mortise cylinder is secured in the trim housing by a threaded cylinder retaining ring. The ring is tightened during cylinder installation to prevent the cylinder from rotating in the housing under normal use or attack. It is loosened during cylinder removal for rekeying, function changes, or key system upgrades. The 021415 engages the pin holes in this ring for both operations. Without the correct spanner wrench, the only alternative is improvised tooling that invariably damages the ring or surrounding trim and can strip the pin holes to the point where the ring becomes impossible to remove without destructive methods.

Schlage 021415 Across the Mortise and Cylindrical Lock Service Range

The official Allegion Knowledge Base confirms the 021415 extends beyond the D Series and L Series to include the Schlage M Series mortise lock, which is the predecessor to the current L Series. The M Series uses the same general cylinder retention approach as the L Series, requiring the same spanner wrench for service. Authorized Allegion distributors also categorize the 021415 under ND Series commercial parts, indicating it services cylinder positions in the broader Schlage commercial cylindrical and mortise lock catalog.

The 021415 is a Schlage specialty tool carrying a Limited 3-Year Mechanical Warranty per the official product documentation. Sold individually. No finish options apply since this is a tool, not a hardware component.
