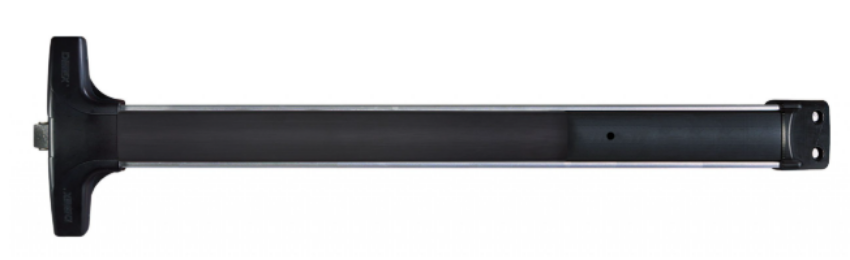

Detex VALUESERIES V40 Series

Diagram List

ValueSeries V40 Series Parts Diagram

Detex VALUESERIES V40 Series

Products by Part Type

Exit Device General Parts

• Center Case Kits & Parts
  • 100698-5 Centercase Assembly, Narrow Stile, V40 series
  • 103806-1 Mounting Plate/Strike Locator Kit, Narrow Stile, 98 Strike BP2
  • 103806-3 Mounting Plate/Strike Locator Kit, Narrow Stile, 99 Strike BP2
  • 100696-1 Mounting Plate, BP2, Narrow Stile
  • 101805-1 Centercase Cover, V40 series
• Backplate Conversion Kits
  • 106281 Backplate Extrusion, 36", Silver
  • 106285 Backplate Extrusion, 48", Silver
  • 106289 Backplate Extrusion, 36", Black
  • 106290 Backplate Extrusion, 48", Black
• Cover Plate Kits & Parts
  • 101803-1 Fillerplate, Subassembly, S&R, Hex Dogging, HD, 36"
  • 101812-1 Fillerplate, HD, 36"
  • 101812-2 Fillerplate, HD, 48"
  • 102195-1 Fillerplate, Subassembly, S&R, Cylinder Dogging, CD, 36"
  • 102194-1 Fillerplate, CD, 36"
  • 102194-2 Fillerplate, CD, 48"
  • 102196 Bracket, fillerplate, CD, V50
• End Cap Kit & Parts
  • 101844-1 Endcap bracket w/o battery holder
  • 101844 Endcap bracket w/ battery holder
  • 101822 Endcap, V40/V50/V51 Series
• Dogging Parts
  • 100164 Spacer dogging bracket
  • 102216-3 Value Series Part, Cylinder Dogging Assembly
  • 100938 Spacer Dogging Bracket, 0.060" thick
  • 100450 Hex Dogging Key
  • 100783 Cylinder Hex Nut
  • 102216-4 Value Series Part, Hex Dogging Assembly
• Strikes
  • 101899 Strike Locator 2" Glass Door (98)
  • 100212 Strike Locator 2" Standard (99)
  • 100855-2, 99 Strike Kit
  • 100855-1, 98 Strike Kit
  • 102212-1, 94 94 Double Door Strike Kit
  • 100234-1 Non-Roller Strike
  • 100088 Strike Shim
  • 100480 Mortise Strike
  • 100482 Shim, Mortise Strike
  • 100481 Strike Shield
  • 102211 Double Door Strike Plate
  • 102214, 94 Shim Strike
• Push Bar kits & parts
  • 103065-1 Pushpad Subassembly, 36"
  • 103065-2 Pushpad Subassembly, 48"
  • 105417-1 Pushpad Wrap, 36", Red, English
  • 105417-2 Pushpad Wrap, 48", Red, English
  • 105417-3 Pushpad Wrap, 36", Black
  • 105417-4 Pushpad Wrap, 48", Black
• Screw Packs
  • PP-5802-124 Screw, mach, 10-32 x 1-1/2" PFH
