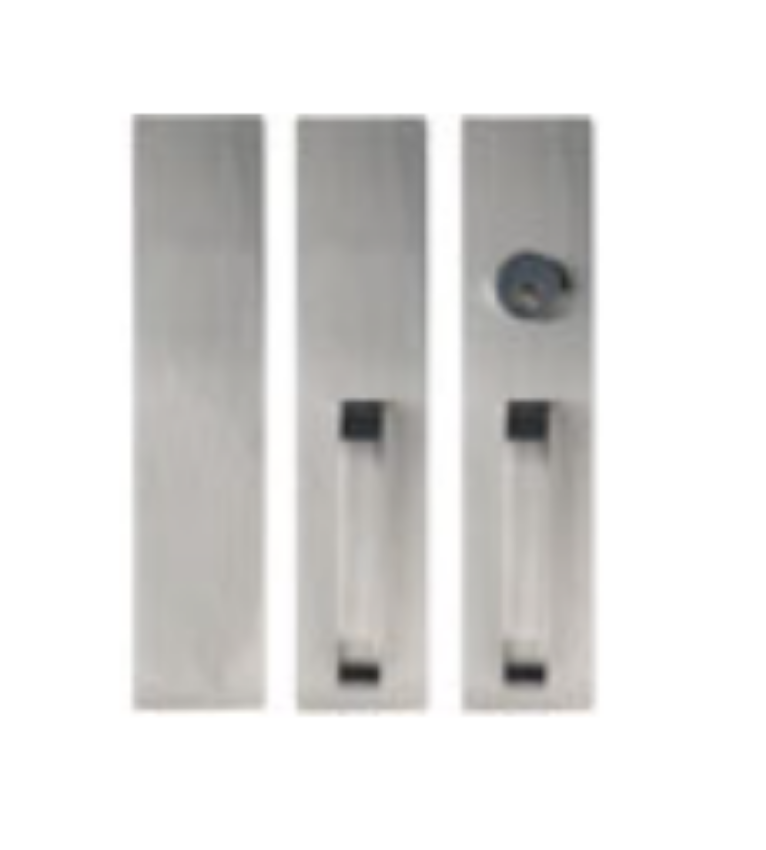

Detex TRIM 01,02,03 C/CN/CNV Series

Diagram List

Detex 01,02,03 C/CN/CNV Series Parts Diagram

Detex TRIM 01,02,03 C/CN/CNV Series

Products by Part Type

Exit Device General Parts

• Trim and Hardware Kit
  • 102219-9 Trim Pullplate, 01C, Wide: BP1 or BP11
  • 102228-9 Trim Pullplate, 01CN, Narrow: BP2
  • 105633-9 Trim Pullplate, 01CNV, Narrow CVR: BP10
  • 102218-9 Trim Pullplate, 02C, Wide: BP1 or BP11
  • 102227-9 Trim Pullplate, 02CN, Narrow: BP2
  • 105632-9 Trim Pullplate, 02CNV, Narrow CVR: BP10
  • 102217-9 Trim Pullplate, 03C, Wide: BP7 or BP13
  • 102226-9 Trim Pullplate, 03CN, Narrow: BP8
  • 105631-9 Trim Pullplate, 03CNV, Narrow CVR: BP12
• Pull
  • 102235-9 Pull, 02, 03, C, CN
• Cylinders
  • 100752-9 Cylinder Collar, Tall
  • 105227-7 Tapered Cylinder Collar, CVR, 03 Trim
• Tailpiece
  • 101480-1 Tailpiece, .695 long
  • 105239-1 Tailpiece, 2.25 THK Door, CVR, 03 Trim
  • 101454-1 Tailpiece Assembly
  • 105238-3 Tailpiece Assembly, CVR, 03 Trim
• Screw Packs
  • 102271-136, 1/4-20 x 2-1/4" Screw, S/S, PFH, 02, 03 w/ 1-3/4" to 2" Door
  • 102271-144 Phillips flat head screw, 1/4-20 x 2-3/4"
  • 102271-116, 1/4-20 x 1" Screw, S/S, 01 All
  • 102264-1 Screw, 1/4-20 x 1/2", Undercut, PFH (02, 03)
• Fasteners
  • 102272-2 Finish Washer , 1/4"
